TFTP Server: enter the IP Address of your TFTP server in this textbox.
File Name: enter the update file name
Reset Configs: if you choose reset Configs, it will delete all of your configuration you have done
before.
After setting up, please click on Go button to update for IP01.
Power off and power on the IP01, wait for several minutes. When the TEL port LED light up, it
means the update is finished and you have the latest firmware.

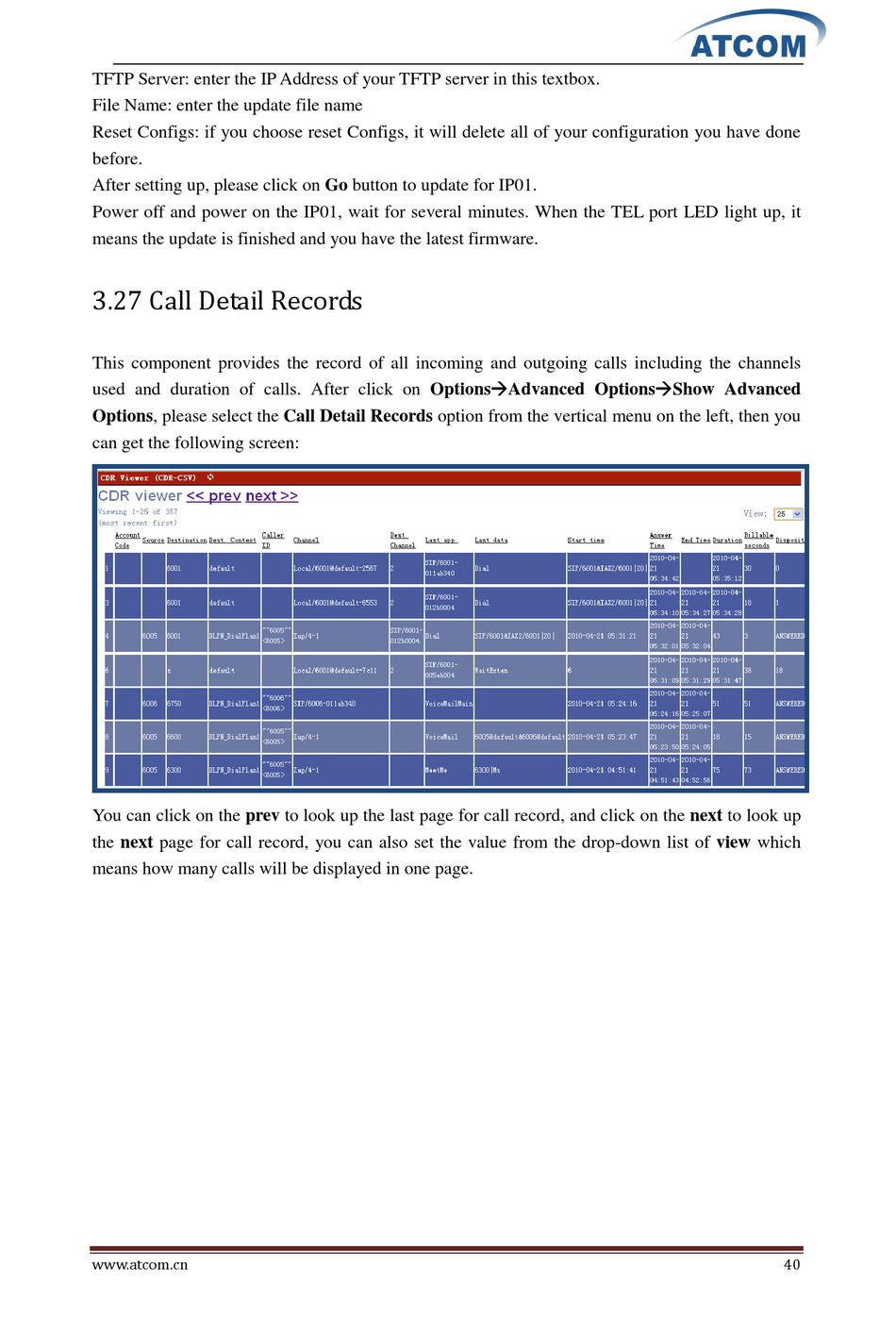

3.27 Call Detail Records

This component provides the record of all incoming and outgoing calls including the channels
used and duration of calls. After click on OptionsAdvanced OptionsShow Advanced
Options, please select the Call Detail Records option from the vertical menu on the left, then you
can get the following screen:
You can click on the prev to look up the last page for call record, and click on the next to look up
the next page for call record, you can also set the value from the drop-down list of view which
means how many calls will be displayed in one page.
