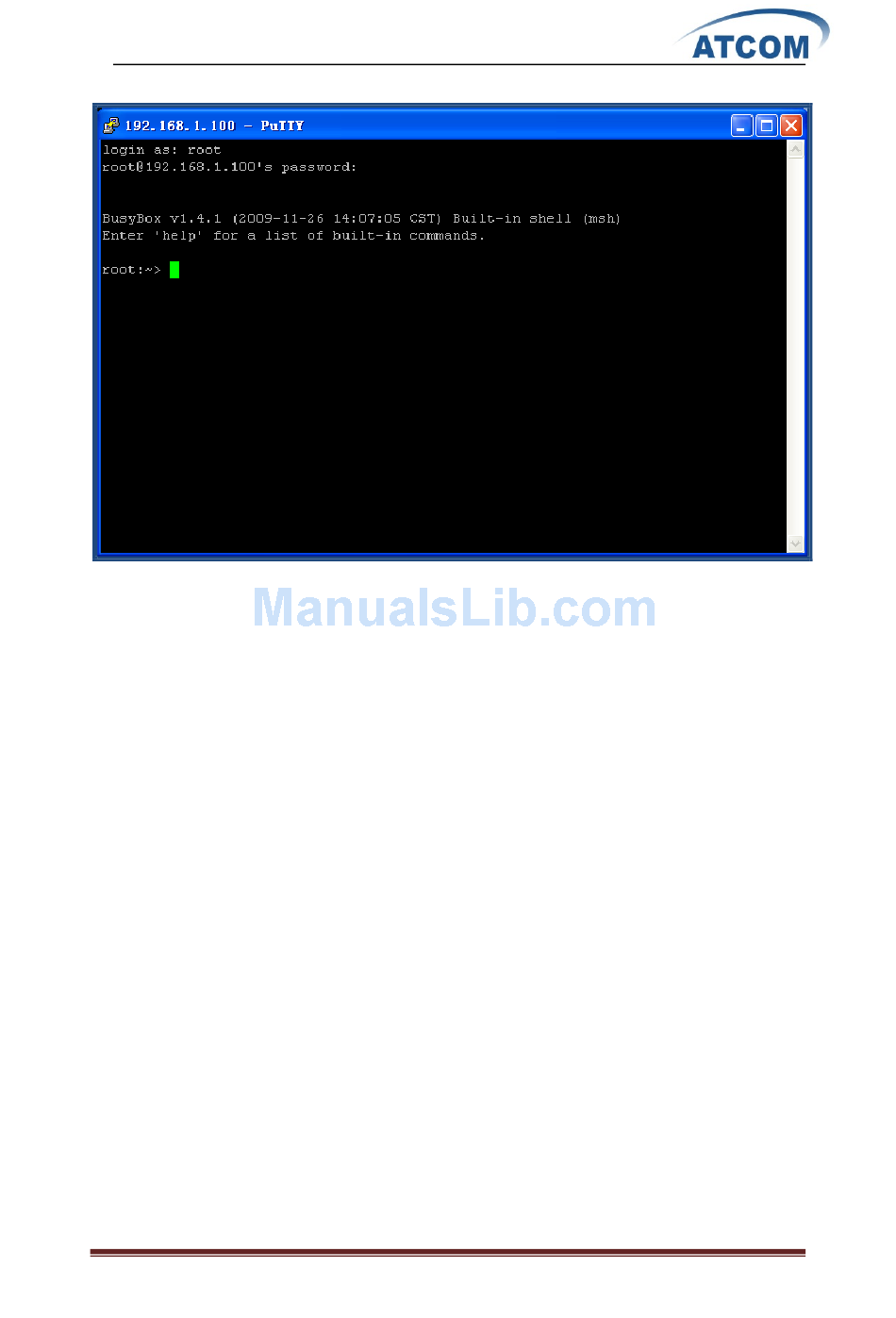

When you log into IP04 successfully, you can get the following illustration:

2.3 Access by Browser with Fallback IP Address

This way only be supported by the latest version (voiptel_ce_ip04-0.3.6) of IP04. If you forget the
IP Address of IP04 you have set up, you can use the fallback IP Address: 172.31.255.254/30.
Before logging into IP04, please set up the IP Address of your PC: 172.31.255.253 and SubMask:
255.255.255.252. At last, you can open your browser and enter:172.31.255.254 to log into the web
page of IP04.

2.4 Console Port Access to IP04

If you do not have network connection between IP04 and PC, you can try to access to IP04 by
console port. Please try to do as the following steps:
1. Please connect the console port of IP04 to your PC's console port with RS232 console cable,
you can refer to the following illustration:
