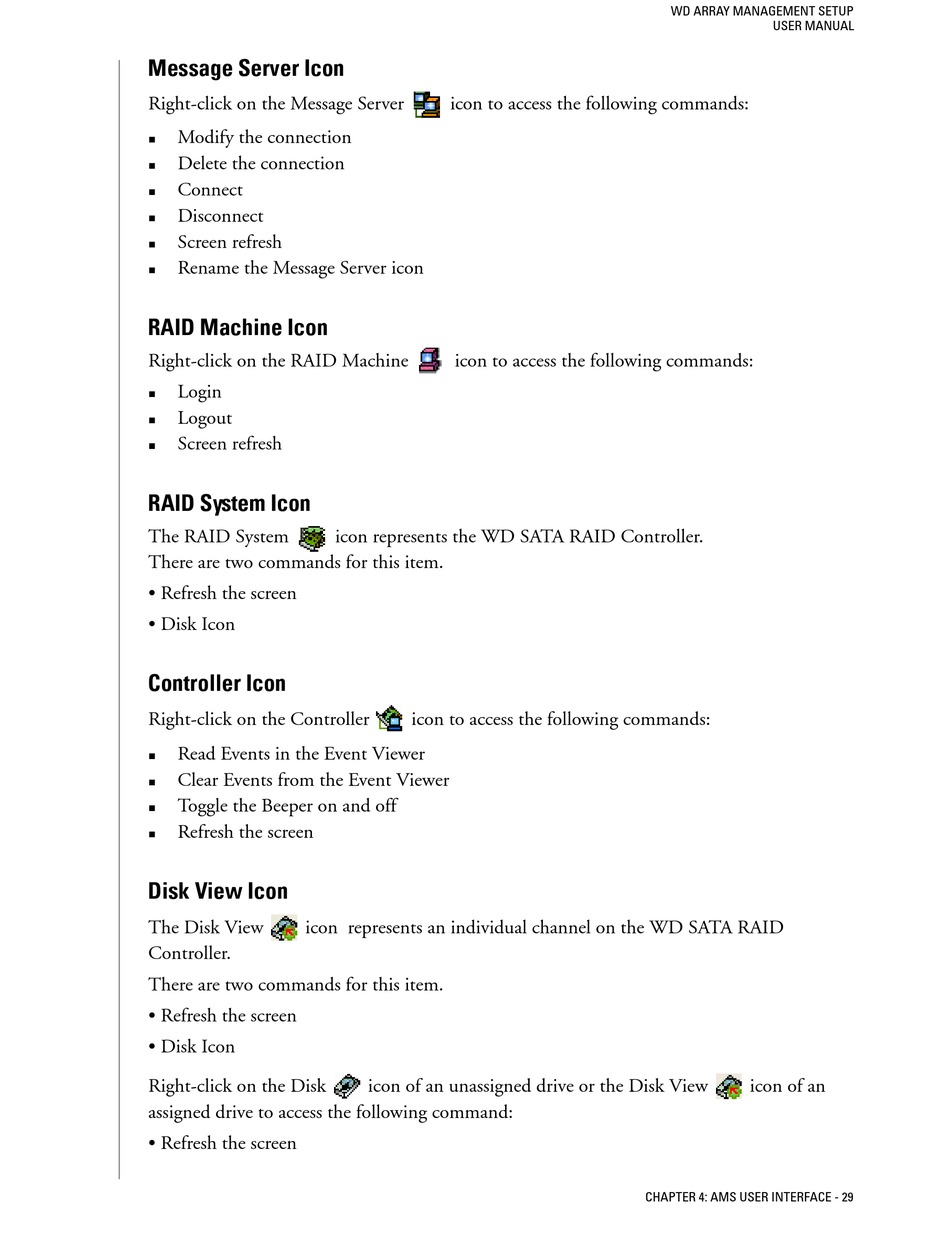

Western Digital Array Management Setup User Manual page 33

Message Server Icon
Right-click on the Message Server
Modify the connection
!
Delete the connection
!
Connect
!
Disconnect
!
Screen refresh
!
Rename the Message Server icon
!
RAID Machine Icon
Right-click on the RAID Machine
Login
!
Logout
!
Screen refresh
!
RAID System Icon
The RAID System
There are two commands for this item.
• Refresh the screen
• Disk Icon
Controller Icon
Right-click on the Controller
Read Events in the Event Viewer
!
Clear Events from the Event Viewer
!
Toggle the Beeper on and off
!
Refresh the screen
!
Disk View Icon
The Disk View icon represents an individual channel on the WD SATA RAID
Controller.
There are two commands for this item.
• Refresh the screen
• Disk Icon
Right-click on the Disk
assigned drive to access the following command:
• Refresh the screen
icon to access the following commands:
icon to access the following commands:
icon represents the WD SATA RAID Controller.
icon to access the following commands:
icon of an unassigned drive or the Disk View
WD ARRAY MANAGEMENT SETUP
USER MANUAL
icon of an
CHAPTER 4: AMS USER INTERFACE - 29
