Tree View

Local AMS
The Tree View displays all of the elements of your RAID system. Use it to navigate to specific
components.

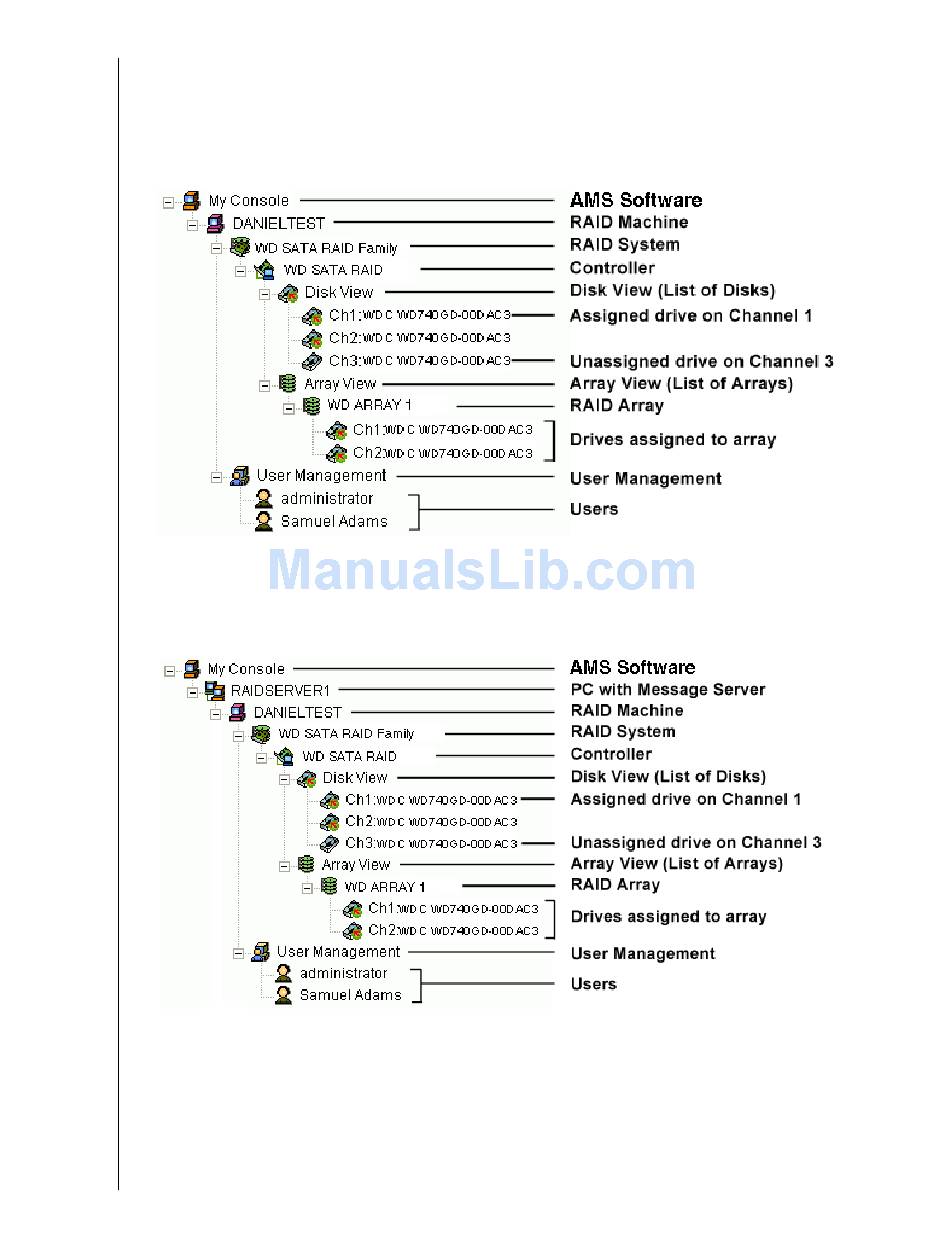

Figure 22. An example of a Local AMS RAID system in Tree View
Remote AMS
Remote AMS adds a RAID Server icon to connect with the Message Server PC to monitor
arrays over a network.
Figure 23. An example of a Remote AMS RAID system in Tree View
Normally, the Tree View is present. To close it, right-click on any object and select Hide Pane
from the popup menu.
To open it again, go to View menu and select Outline.
