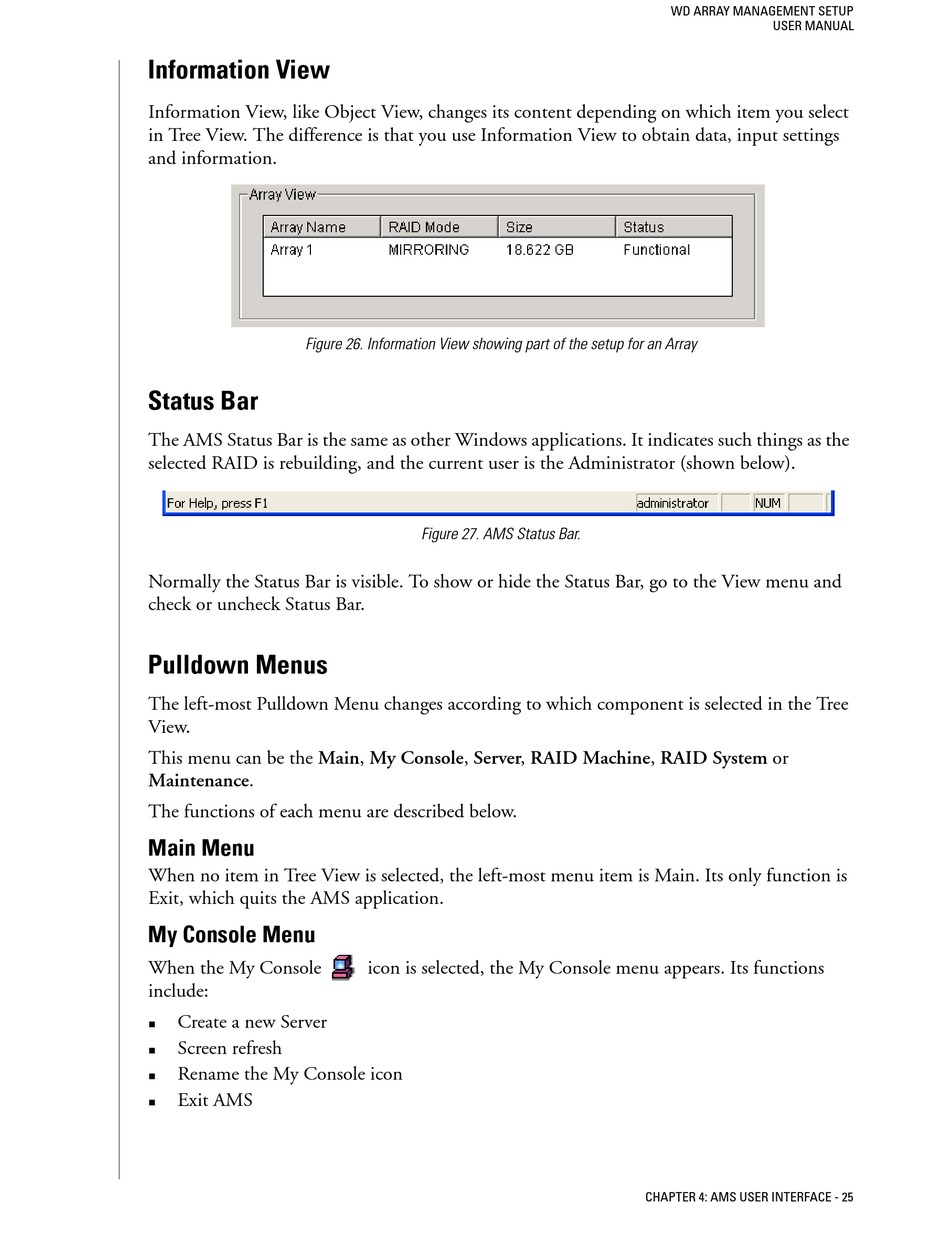

Information View

Information View, like Object View, changes its content depending on which item you select
in Tree View. The difference is that you use Information View to obtain data, input settings
and information.
Figure 26. Information View showing part of the setup for an Array

Status Bar

The AMS Status Bar is the same as other Windows applications. It indicates such things as the
selected RAID is rebuilding, and the current user is the Administrator (shown below).
Normally the Status Bar is visible. To show or hide the Status Bar, go to the View menu and
check or uncheck Status Bar.

Pulldown Menus

The left-most Pulldown Menu changes according to which component is selected in the Tree
View.
This menu can be the Main, My Console, Server, RAID Machine, RAID System or
Maintenance.
The functions of each menu are described below.
Main Menu
When no item in Tree View is selected, the left-most menu item is Main. Its only function is
Exit, which quits the AMS application.
My Console Menu
When the My Console
include:
Create a new Server
!
Screen refresh
!
Rename the My Console icon
!
Exit AMS
!
Figure 27. AMS Status Bar.
icon is selected, the My Console menu appears. Its functions
