Remote AMS Login

Remote AMS works over your network. Therefore it requires additional steps the first time
you log on. Launch Remote AMS. When the AMS user interface appears:
1. Right-click on the My Console icon
- Select New > Server from the popup menu.
- Click the New Server
A RAID Server icon appears.
2. Click on the RAID Server
computer where the Message Server software is installed.
If the Message Server software in installed on the monitoring PC (the PC you are now
working on), you can use the default 127.0.0.1 IP address.

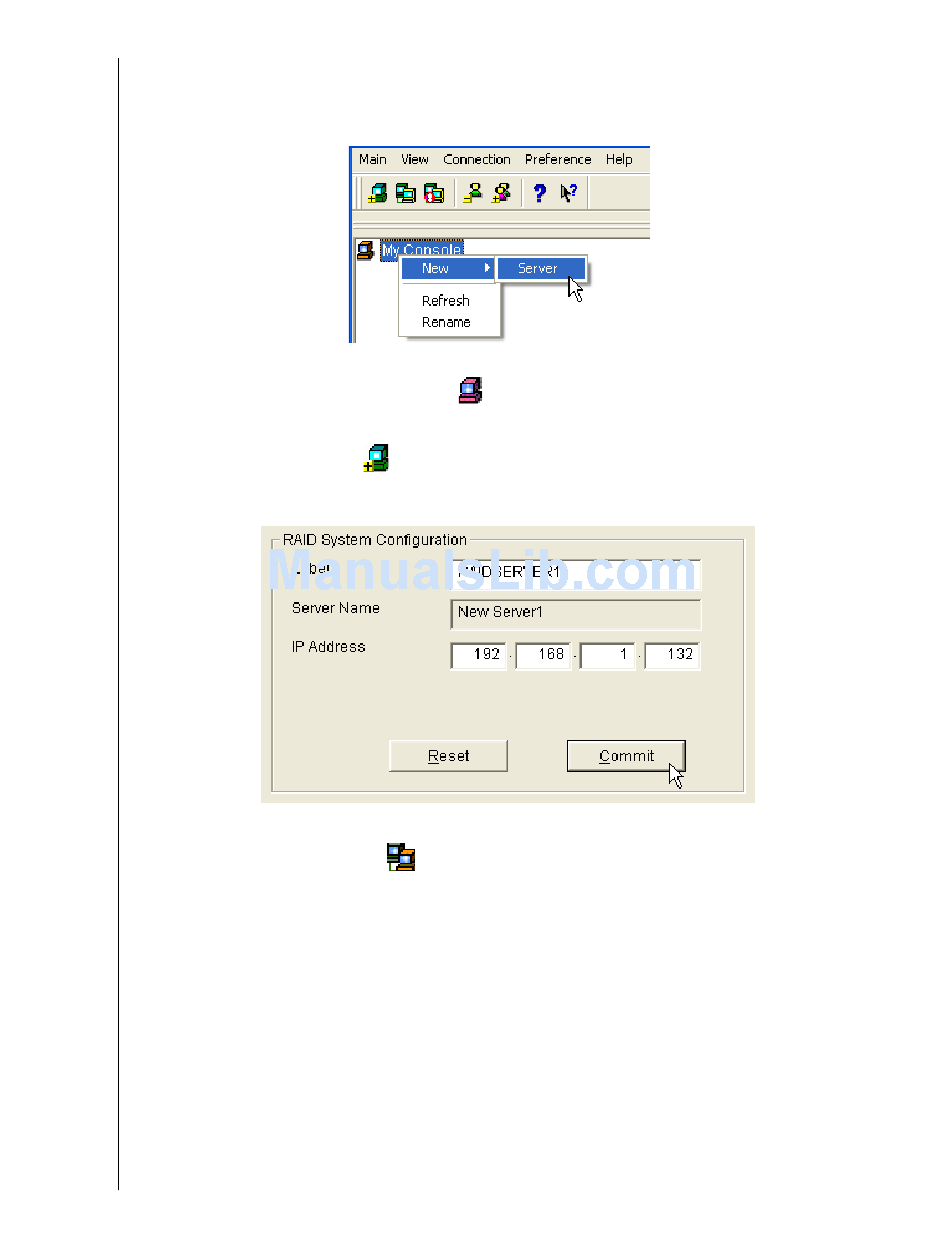

Figure 15. Make a New RAID Server
and:
icon in the Toolbar.
Figure 16. RAID System Configuration Box
icon. In Information View, type in the IP address of the
WD ARRAY MANAGEMENT SETUP
USER MANUAL
CHAPTER 3: INITIAL SETUP - 13
