Chapter 3 Mounting the controller
12
Mounting recommendations
Mounting recommendations are as follows:
▲
IMPORTANT
Mount the Tracer ZN511 zone controller with the cover on to avoid the
possibility of damaging the circuit board during installation.
Mount the controller in any direction, other than with the front of the
•
cover facing downward.
Mount using the two
•
vided (see Figure 4). Mounting fasteners are not included.
Attach the controller securely so it can withstand vibrations of associ-
•
ated HVAC equipment.
When the controller is mounted in a small enclosed compartment,
•
complete all wiring connections before securing the controller in the
compartment.

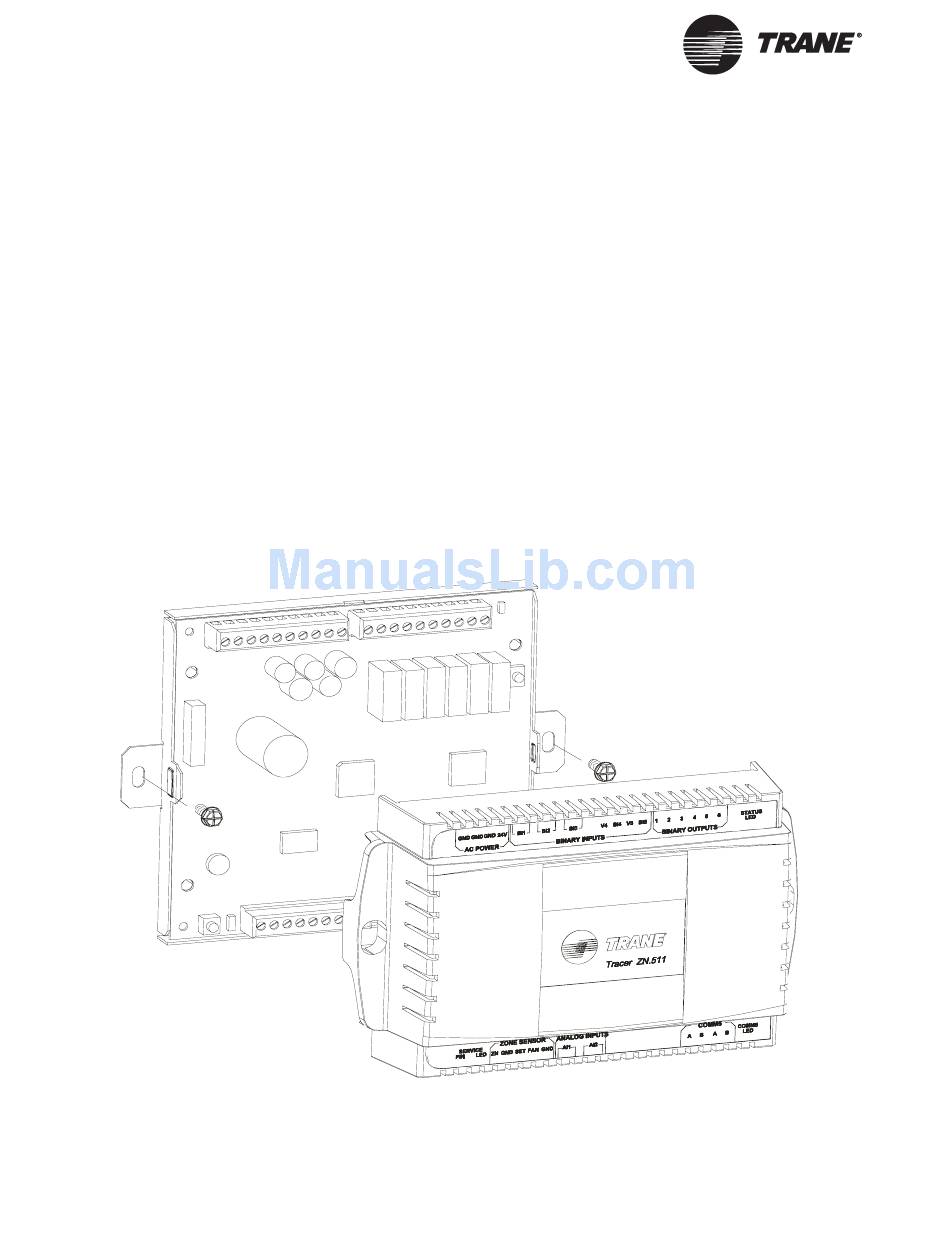

Figure 4. Mounting the Tracer ZN511 zone controller
3
/
in. (0.19 mm) radius mounting holes pro-
16
CNT-SVX06B-EN
