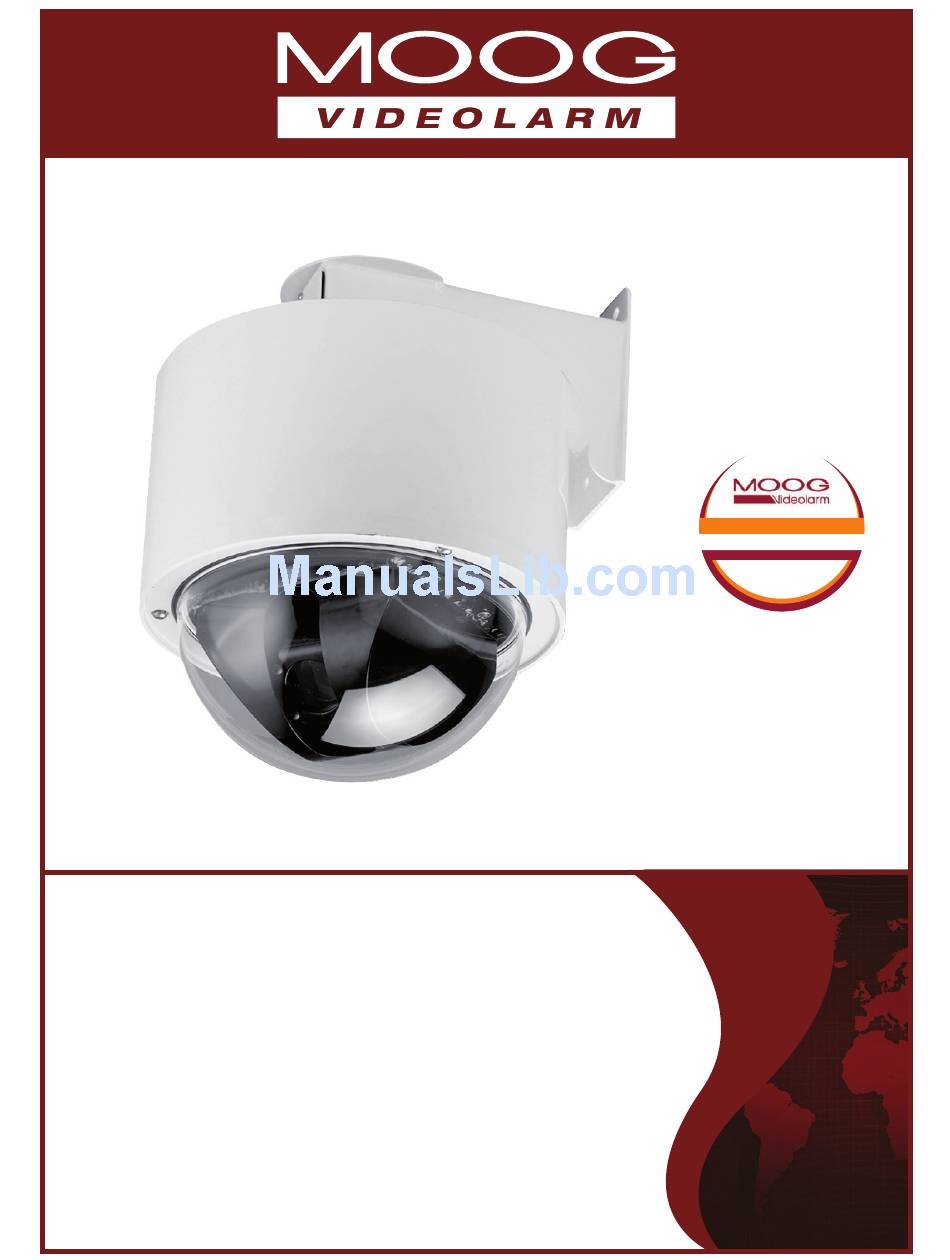

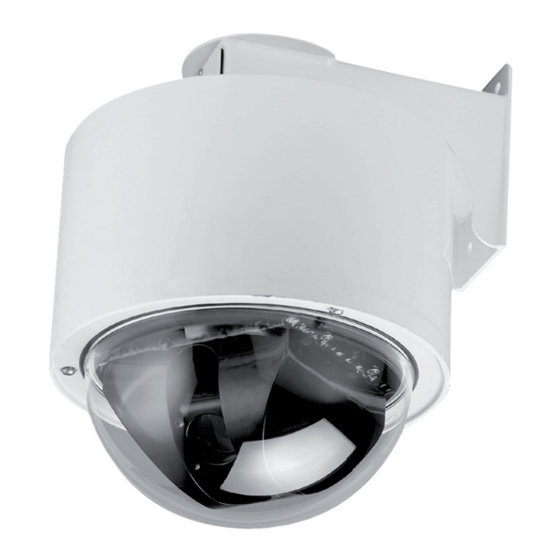

D e p u t y D o m e ™
Bullet-Resistant Standard/Pressurized Dome
Installation and Operation Instructions for the following models:
DDW10CR1
DeputyDome™ Series, 10-gauge Steel Bullet-Resistant Outdoor
dome PTZ Camera System with 26x Day/Night Camera, onboard receiver
/driver, 120Vac heater Tough enough to stop a 9mm bullet
PDDW10CR1
(Pressurized Version)
DeputyDome™ Series, 10-gauge Steel Bullet-Resistant Outdoor
dome PTZ Camera System with 26x Day/Night Camera, onboard receiver
/driver, 120Vac heater Tough enough to stop a 9mm bullet
Before attempting to connect or operate this product, please read these instructions completely.
© 2009-2010, Videolarm, Inc. All Right Reserved
Product Information for
IP Ready Software
|
1 . 8 0 0 . 5 5 4 . 1 1 2 4
|
w w w . v i d e o l a r m . c o m
www.videolarm.com
81-IN5210
12-21-2011
