Repairing Air Supply Leaks; Storage - Tippmann CUSTOM PRO Owner's Manual

Field Stripping / Receiver Disassembly (continued from page 15)
Power tube and valve removal.
NOTE: Do not remove the gas line fitting unless it is leaking or
E
you need to replace the valve. If you should do so you will
need some teflon tape or paste to reinstall it.
N
• First, you need to complete Marker / Receiver Disassembly
G
Instructions on page 15.
L
• Removal: To release the power
tube and valve, unscrew the
I
two valve lock bolts on the
S
outer right-side receiver.
• Installation: Apply red loctite to
bolts threads and do not over
H
tighten valve lock bolts and
strip threads when reinstalling.
Valve removal from power tube: If it is necessary to remove the
valve, use a wrench to slowly unscrew the gas line fitting. Once
the fitting is out, the valve will slide out the back of the power tube.
NOTE: Check the external valve o-ring at this time. If the o-ring
is damaged your marker will not function correctly.
Reinstalling valve: Insert valve into power tube, align holes
and add teflon tape or paste to gas line fitting threads, slowly
screw into valve and snug with wrench.
Repairing Air Supply Cylinder Leaks
The most common leak occurs from a bad air supply valve
o-ring. To replace a valve o-ring you must first remove the bad
o-ring and then install a new one. This o-ring is located on the
tip of your air supply valve. The best valve o-rings are made of
urethane. The urethane o-rings are not affected by high air
supply pressures. These may be purchased from Tippmann
or your local paintball dealer.
NOTE: If new valve o-ring does not resolve air supply leak, do
not attempt to repair air supply cylinder. Contact Tippmann
Sports, LLC or your local paintball dealer.

Storage

Before storage unload and remove air supply (see page 14).
Then install Barrel Sleeve (see page 2) and put your marker in
Safe Mode (see page 4). You should store your marker in a dry
area. Before storing your marker make sure that the marker is
cleaned and oiled (see cleaning and maintenance on page
14) so that it does not rust. Store your marker with the bolt in
the forward position, uncocked.
1
1
16
Storage (continued on page 17)
2
2

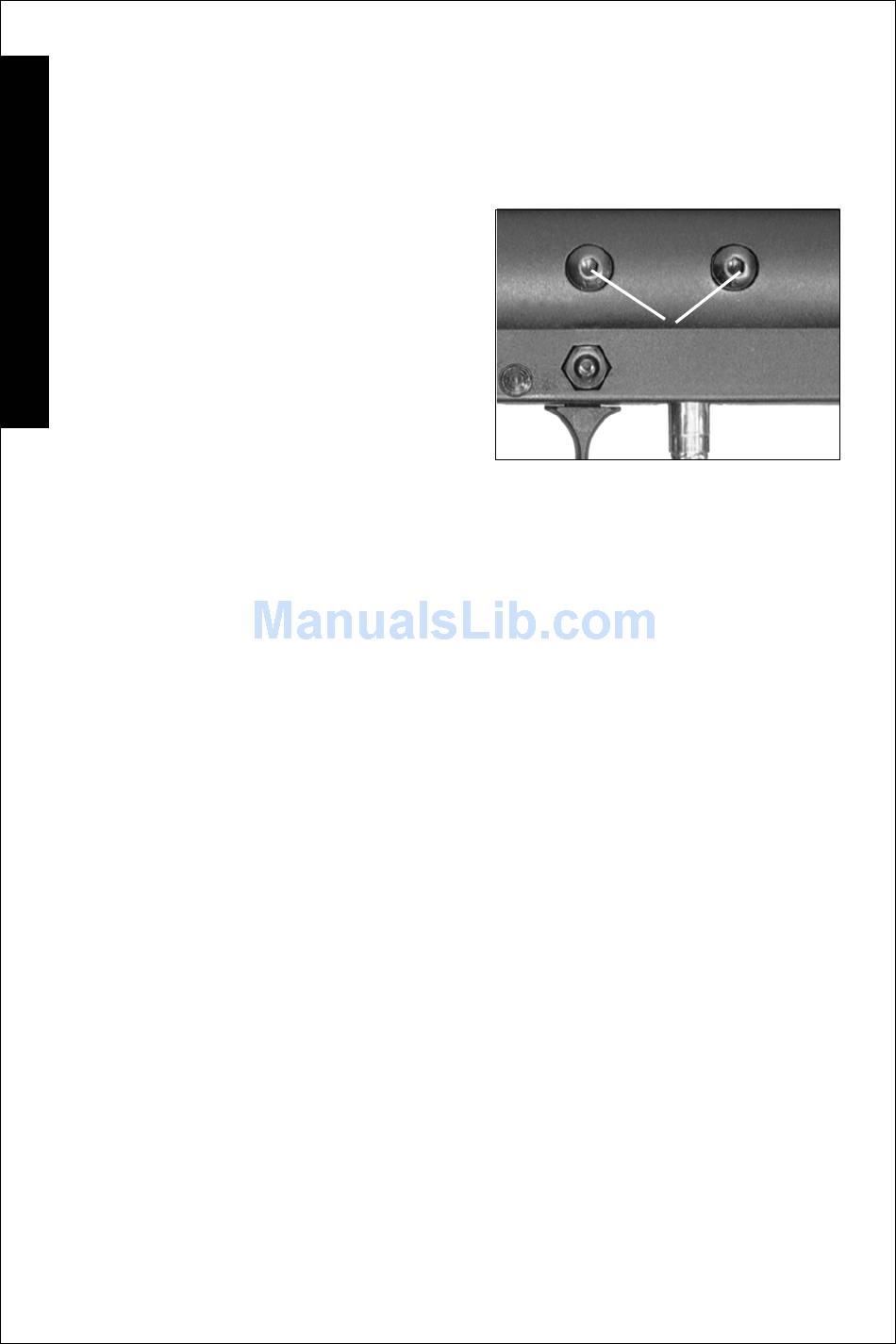

Valve Lock
