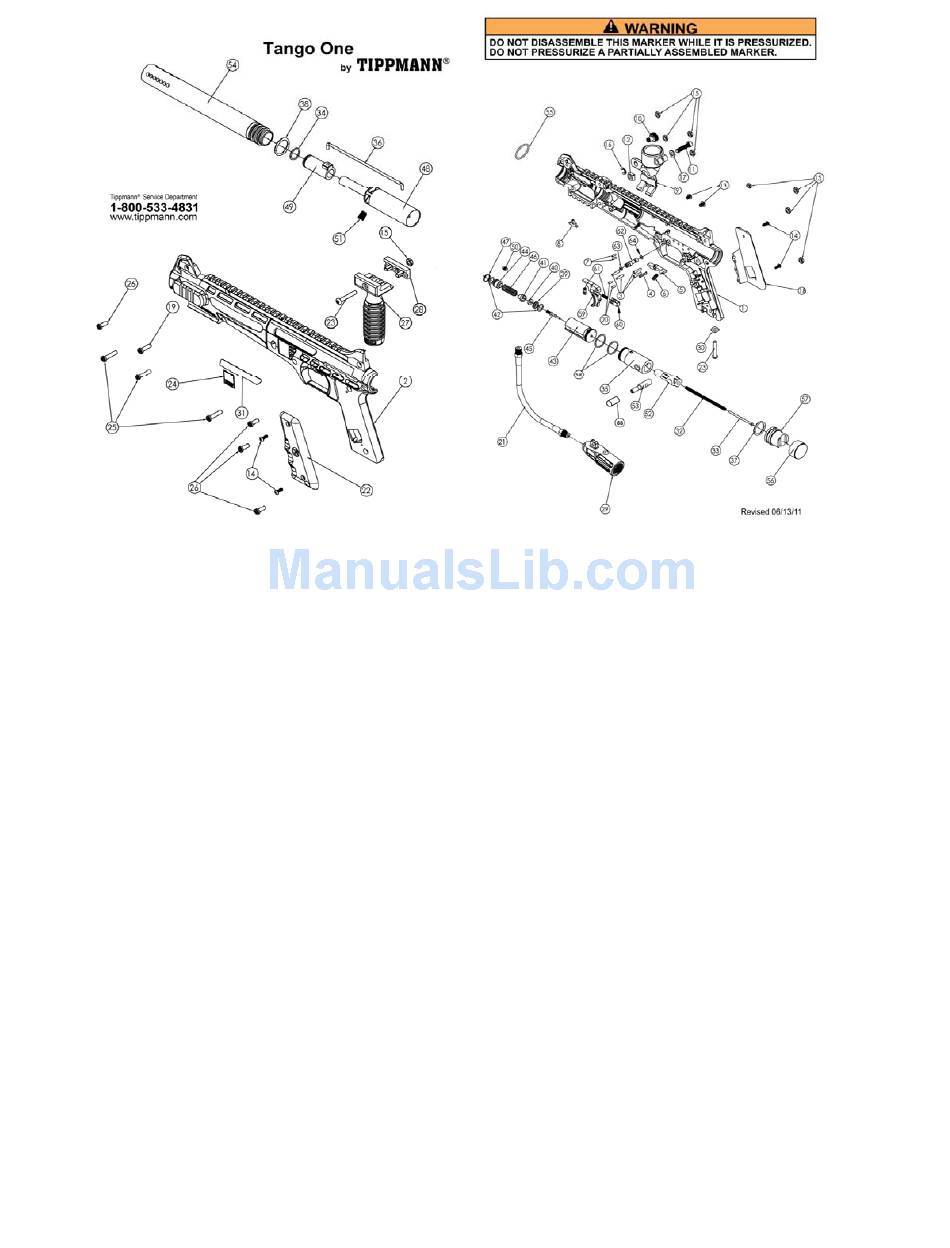

Owner's Manual
ITEM NO. QTY. PT. NO. DESCRIPTION
TA06053 Right Receiver Half
1
1
TA06052 Left Receiver Half
2
1
3
4
98‐33
Receiver Dowel Pin
4
1
CA‐36
Sear Dowel Pin (Black)
5
1
02‐35
Sear
6
1
TA02036 Sear Spring
7
2
TA02021 ACT Linkage Arm Guide Pin
8
1
FA‐18
Ball Latch
9
1
TA06051 Feed Elbow
10
1
TA06059 Feed Elbow Thumb Nut
11
1
PL‐42C Screw, ¼‐20 x 1" SHCS
12
1
PL‐42D Nut, ¼‐20 Square (Black)
13
2
98‐26
Screw, 10‐32 x ¼" BHCS
14
4
CA‐02A Screw, 6‐32 x ⅜" BHCS
15
8
9‐PA
Nut, Hex 10‐32 (Black)
16
1
TA06047 Lock Screw C‐Clip
17
1
98‐45
Flat Washer M6 (Black)
18
1
TA05004 Split Grip, Right
19
1
98‐01A Bolt, 10‐32 x 0.675"
20
2
98‐19
Return Slide Dowel Pin
21
1
98‐09C Gas Line, #4 x 7⅞ "
22
1
TA06003 Split Grip, Left
23
2
TA06048 Screw, 10‐32 x 1.1875" BHCS
24
1
TA06064 TPN Jewel
25
3
TA06015 Screw, 10‐32 x 0.840" LHSHCS
26
4
TA09919 Screw, 10‐32 x 0.500" LHSHCS
27
1
TA06054 Foregrip
28
1
TA06055 Foregrip Clamp Plate
TA06049 Air Supply Adapter (ASA)
29
1
CA‐08B Nut, 10‐32
30
1
TA06063 Tango One Nameplate
31
1
Drive Spring
32
1
CA‐14
PT. NO. DESCRIPTION
ITEM NO.
QTY.
33
1
CA‐15
34
1
SL2‐4
35
1
TA02011 Rear Bolt
36
1
TA01016 Linkage Arm
37
1
98‐57
38
1
98‐40
39
1
CA‐27
40
1
PA‐28
41
1
CA‐29
42
2
SL2‐25
43
1
98‐25N Valve Body
44
1
98‐56
45
1
CA‐30N Valve Stem
46
1
98‐32
47
1
PA‐31A Snap Ring
48
1
98‐21NR Power Tube
49
1
02‐17
50
1
TA05021 Power Tube Plug
51
1
02‐22
52
1
TA05005 Rear Bolt Plug
53
1
98‐13
54
1
TA06046 Barrel
55
1
TA06060 O‐ring, Barrel Sleeve
56
1
TA06017 End Cap Cover
57
1
TA06006 End Cap
58
2
98‐12A O‐ring, Valve/Rear Bolt
59
1
98‐36A Trigger
60
1
98‐18
61
2
98‐20
98‐37N Safety Pin
62
1
63
1
98‐55
64
1
FA‐07
Guide Pin
O‐ring, Front Bolt
O‐ring, End Cap
O‐ring, Barrel
Front Valve Seat
Valve Stem Cup Seal
Valve Stem Cup
O‐ring, Valve Seat
Valve Plug
Compression Spring
Front Bolt
Velocity Set Screw
Rear Bolt Handle
Trigger Return Slide
Spring
O‐ring, Safety (Red)
O‐ring, Safety (Black)
