TIPPMANN
INTERNAL VALVE PARTS
NOT SHOWN:
CA-27A Front Valve Seat Ca
CA-27N Rear Valve Seat
CA-29 Cup Seat
CA-30N Valve Stem
PA-28 Cup Seal
PA-31A Valve Snap Ring
PA-32 Valve Spring
NOTE: Valve Disassembly
is not recommended.
NOT SHOWN:
4-PA Sling Swivel
5-PA Sling
5-PA1 Sling Keeper
Lower Receiver
Assembly Instructions
❏ Into the lower receiver halves; insert 4 grip nuts.
❏ Attach the 2 grips with ❏ 4 grip bolts. Into the right
lower receiver insert ❏ trigger / sear and springs on
❏ 5 receiver dowel pins. ❏ Insert the 2 tank adapter
nuts. ❏ Bolt the 2 halves together with 2 receiver
bolts and nuts. ❏ Insert the safety with o-ring and ❏
secure with safety snap ring. ❏ Insert the 90 degree
gas line fitting into the tank adapter and ❏ attach it
to the bottom of lower receiver using 2 tank adapter
bolts. ❏ Then attach the lower and upper receivers
with 4 receiver connection bolts. ❏ Connect one end
of the gas line (with teflon paste) to the 90 degree
tank adapter fitting and ❏ attach the other end of the
gas line (with teflon paste) to the upper receiver
marker valve reduction fitting.
TM
PRO/CARBINE

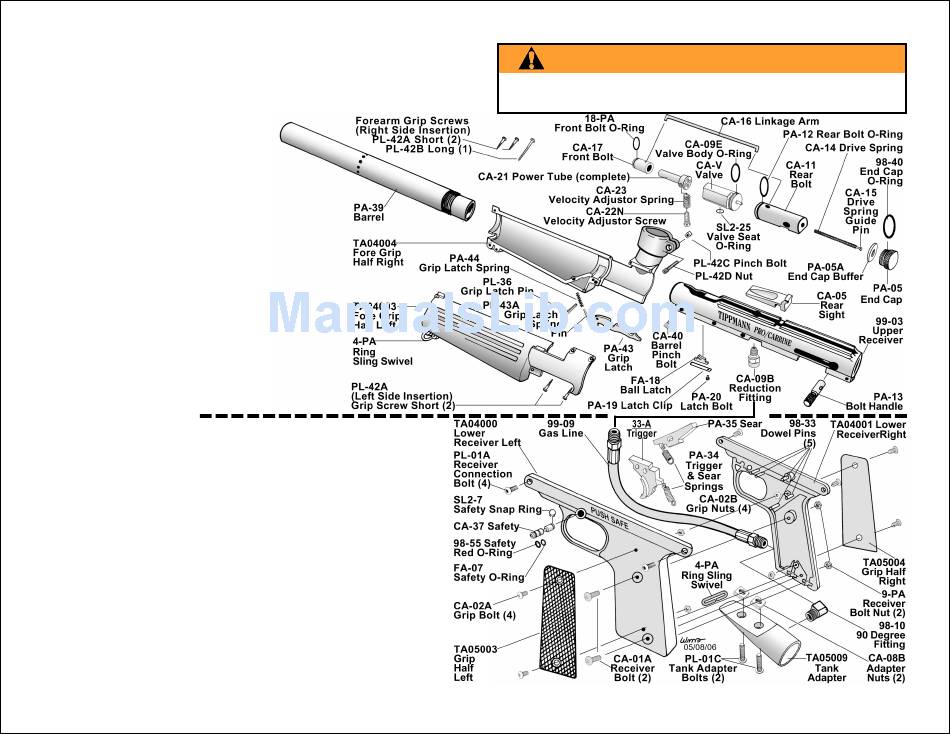

BASIC PARTS LIST
TM
DO NOT DISASSEMBLE THIS MARKER WHILE IT IS PRESSURIZED WITH
AIR. DO NOT PRESSURIZE A PARTIALLY ASSEMBLED MARKER.
WARNING
1-800-533-4831 • www.tippmann.com
