Marker Disassembly - Tippmann CUSTOM PRO Owner's Manual

Cleaning and Maintenance (continued from page 14)
recommend using Tippmann
gun oil on the barrel o-ring and air supply valve o-ring.
• To clean the barrel. Depress front sight and tip out feed
elbow. Insert metal tab of cable squeegee into breach, then
pull squeegee through barrel to remove debris.

Marker Disassembly

First follow unloading and air supply removal instructions on
page 14. Do not pressurize a partially assembled paintball
marker. Put the marker in the uncocked position. If your marker
is cocked, hold the bolt handle while pulling the trigger which
will uncock the marker.

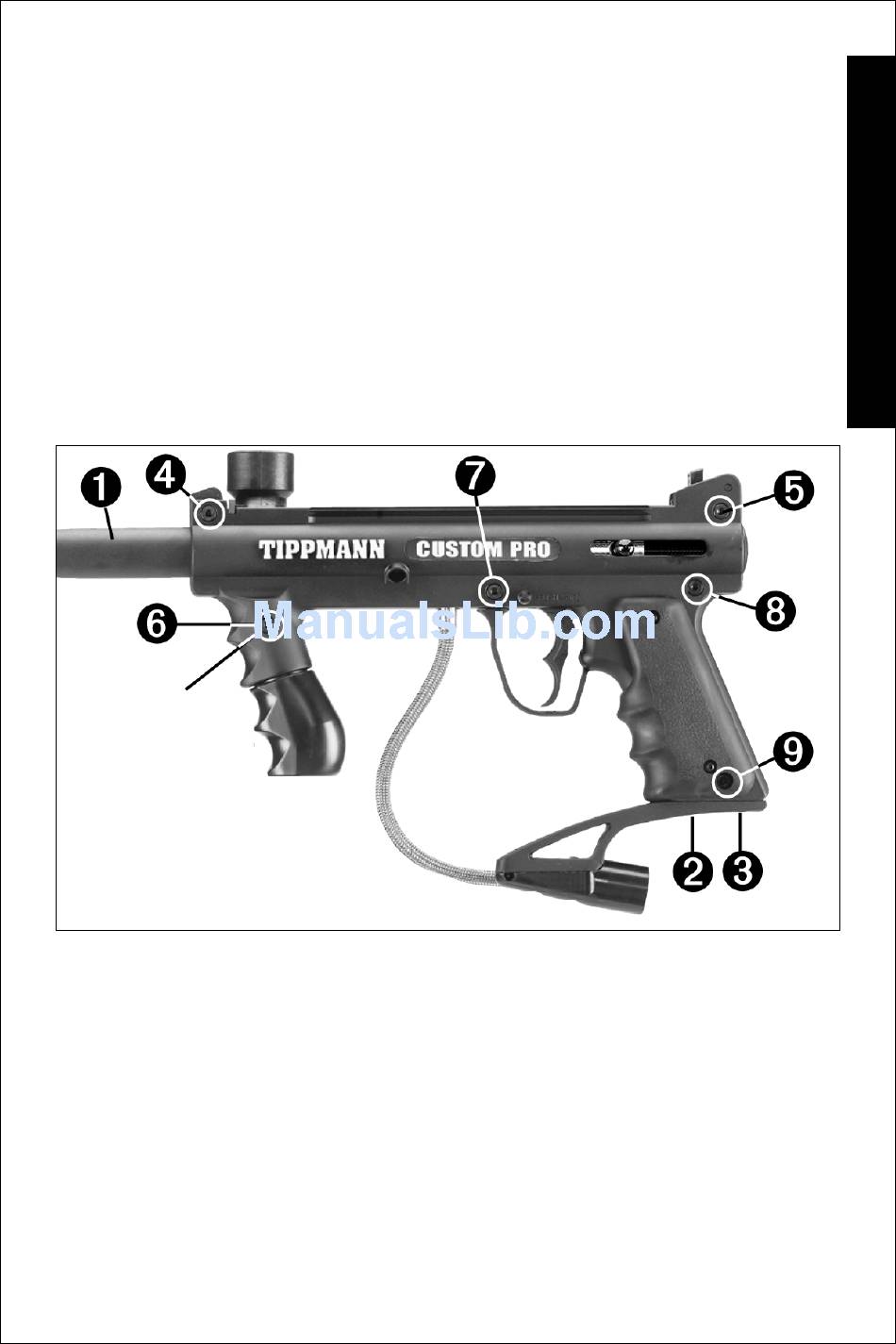

NOTE: The barrel (1) and adapter bolts (2-3) must be removed
first. Next, turn the velocity screw in until it stops.
Longest
bolt
goes in #6
front grip
when reassembling
Total Six Receiver
Connection Bolts
To remove the left-side receiver, unscrew bolts (4-9) receiver
connection bolts. Then carefully lift the left-side receiver to
access the internals.
NOTE: The Safety will stay on the left-side receiver and should
be reassembled the same way.
Once inside, pull the end cap out to remove the guide pin
and drive spring. These parts must be removed before the
bolt handle will release. Disconnect the linkage arm from
the rear and front bolts. Slide the front bolt off the power
tube and check the o-ring. Clean and oil the o-ring or if
damaged, replace with a new one. Do the same with the
rear bolt o-ring.
Field Stripping / Receiver Disassembly (continued on page 16)
