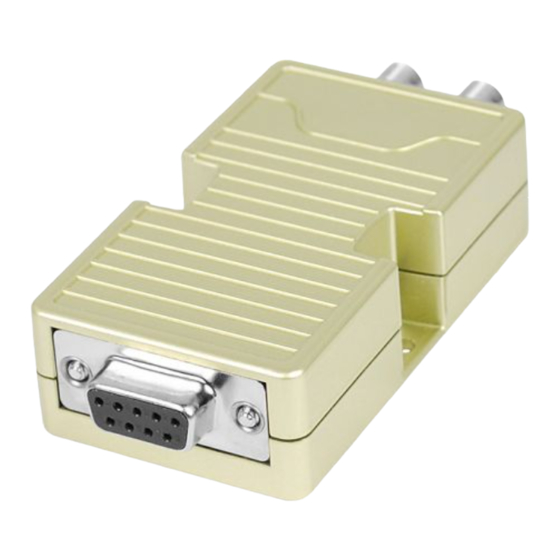

Rs-232 to multi-mode fiber optic media converter
Hide thumbs Also See for RS-232 to Multi-Mode Fiber Optic:

Advertisement

Quick Links

RS-232 to Multi-Mode Fiber Optic

Media Converter

(ID-SC0F11-S1)
User's Manual
04-0780A
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-232 to Multi-Mode Fiber Optic and is the answer not in the manual?

Questions and answers

Summary of Contents for SIIG RS-232 to Multi-Mode Fiber Optic

  • Page 1: Media Converter

    RS-232 to Multi-Mode Fiber Optic Media Converter (ID-SC0F11-S1) User’s Manual 04-0780A - 1 -...
  • Page 2: Package Contents

    Introduction This converter converts RS‐232 signals to fiber for data  transmission and communication  Features  RS‐232 to fiber communication   Support full duplex asynchronous data transmission   Support data transfer rate up to 921.6 Kbps   Extend RS‐232 transmission up to 5km with multi‐mode   Compact size   Wall mount support  Package Contents  RS232 to Multi‐Mode Fiber Optic Media Converter   USB cable   Screws (2)   Userʹs manual  - 2 -...
  • Page 3: Connection Diagram

    Connection Diagram - 3 -...
  • Page 4: Product Overview

    Product Overview RS‐232  Fiber connectors (A: RX, B: TX )  Mini USB Type‐B plug                    - 4 -...
  • Page 5: External Power

    External Power If the connected device requires more power than the  converter can provide, use the included USB cable to connect  the converter to your computer’s USB port or USB wall power  adapter (not included).    Alternatively - 5 -...
  • Page 6: Pin Assignment

    Pin Assignment DB9 Connector DB9  1  DCD  2  TxD  3  RxD  4  DSR  5  GND  6  DTR  7  CTS  8  RTS  9  ‐‐‐  Wall Mount Assembly Tighten 2 screws through the screw holes using a screw driver  as shown.    - 6 -...
  • Page 7 Assemble to a Device Hold the lower cover, push and  Remove the  slide the upper cover  upper cover    Plug in the  Secure the  Hold the lower  RS‐232 connector  connector by  cover and push  to your system’s  tightening the  the upper cover  RS‐232 port  two screws  back into the  lock position  - 7 -...
  • Page 8: Specifications

    Specifications Item  Description  Ports    1x Fiber Optic Cable (multi‐mode) Connectors    ST Connector  Support Cable: 50/125, 62.5/125  Wavelength: 1310nm  Distance: Multi mode fiber for  5km  Fiber Communication  Tx Output:    ‐10dBm  Rx Sensitivity:    ‐18dBm  Point‐to‐point Transmission Full  duplex      Serial Communication  Baud rate: 921.6Kbps  Speed  Signals for RS‐232: TxD, RxD,  GND      Interface    RS‐232  Interface Connector  Female DB9, Mini USB  Power Requirement  Serial Power Source:    TxD, RTS,  DTR ...
  • Page 9                             Blank Page  - 9 -...
  • Page 10                             Blank Page        - 10 -...
  • Page 11: Technical Support And Warranty

    (3) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
  • Page 12 Fremont, CA 94538-3152, USA Ph: 510-657-8688 RS232 to Multi-Mode Fiber Optic Media Converter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of their respective companies.
