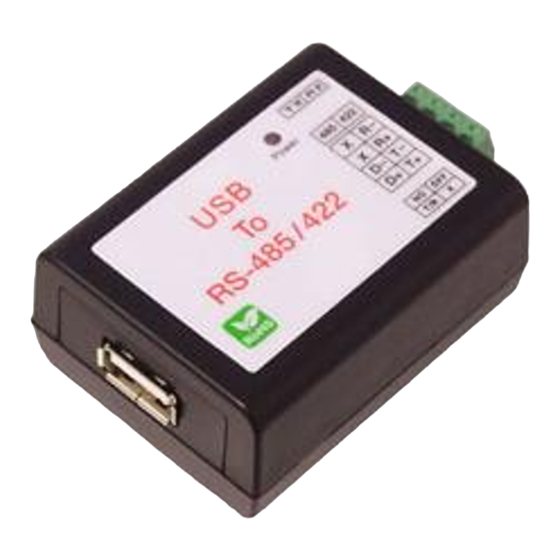

USB to RS-422/485 Converter
Quick Installation Guide
Introducing the USB to RS-422/485
converter
The USB to RS- 422/485 Converter enables you to choose
between RS-422 and RS-485 formats for each port
depending on the application you need.
Features and Benefits
•
Compliant : USB 1.0 , 1.1 , 2.0
•
Connector : USB type A
•
RS-422 : RxD+ , RxD- ,TxD+ , TxD-
•
RS-485 : Data+ , Data-
System Requirements
•
Pentium
port
•
Windows
(32-/64-bit) / Vista (32-/64-bit)
Serial Number Sticker
For future product return or exchange, this serial number
is require. Please keep it for your reference.
04-0484A
II or equivalent PC with an available USB
®
2000 / XP (32-/64-bit) / Server 2003
®
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG ID-UC0011-S1
Summary of Contents for SIIG ID-UC0011-S1
-
Page 1: Quick Installation Guide
USB to RS-422/485 Converter Quick Installation Guide Introducing the USB to RS-422/485 converter The USB to RS- 422/485 Converter enables you to choose between RS-422 and RS-485 formats for each port depending on the application you need. Features and Benefits •... -
Page 2: Package Contents
Package Contents • USB to RS-422/485 Converter • USB cable • Quick Installation Guide Layout port Figure 1: Layout RS422/485 Signal to Target Device Dip switch... -
Page 3: Driver Installation
Driver Installation This section provides information on how to install the USB to RS-422/485 drivers. Windows 2000/XP/Server 2003 Insert the driver CD after Windows boots. AutoRun should start the installation. If AutoRun doesn’t start, click Start, Run, Type D:\setup.exe, then click OK. (Change D: to match your CD-ROM drive letter). - Page 4 Click Install, Install, then click OK. Click Finish. Restart your system to complete the installation. Insert the USB ro RS-485/422 into a USB port. The driver will install automatically. To Verify Installation Check Device Manger to verify installation. For 2000/XP/Server 2003: Right click My Computer, click Manage, then click Device Manager.
- Page 5 Blank Page...
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product. - Page 8 6078 Stewart Avenue Fremont, CA 94538-3152, USA USB to RS-422/485Converter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Pentium is a registered trademark of Intel Corporation.
