Introduction

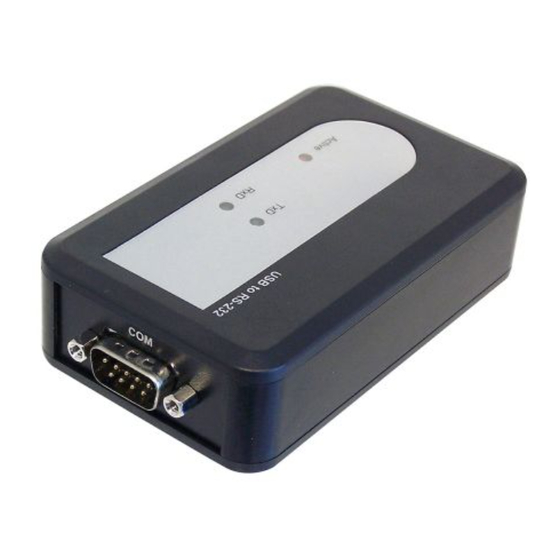

The Industrial USB to RS-232 Serial Adapter Hub
provides additional high speed RS-232 serial
port(s) to a PC or Mac computer via USB port.
Key Features and Benefits
•
Compliant with Universal Serial Bus 2.0
Specification
•
Supports serial port data transfer rates up
to 921.6Kb/s
•
Built in 15KVDC ESD serial interface
protection
•
Built in 512 byte FIFO buffer and software
flow control
System Requirements
•
Desktop or notebook computer with an
available USB port
•
Mac OS X v10.4.x or later
04-0825A
Industrial USB to RS-232
Serial Adapter Hub
Quick Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Industrial USB to RS-232 Serial Adapter Hub and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG Industrial USB to RS-232 Serial Adapter Hub

Summary of Contents for SIIG Industrial USB to RS-232 Serial Adapter Hub

  • Page 1 Industrial USB to RS-232 Serial Adapter Hub Quick Installation Guide Introduction The Industrial USB to RS-232 Serial Adapter Hub provides additional high speed RS-232 serial port(s) to a PC or Mac computer via USB port. Key Features and Benefits •...

  • Page 2: Package Contents

    ® Vista (32-/64-bit) / XP (32-/64-bit) / Server 2008 & 2003 (32-/64-bit) / Server 2008 R2 / 2000 Package Contents • Industrial USB to RS-232 Serial Adapter Hub • USB cable (type A/B) • Power adapter (for ID-SC0811-S1 only) •...
  • Page 3 ID-SC0611-S1 USB type B Status LED Active LED Serial Port Figure 2: 2-Port Industrial USB to RS-232 Serial Adapter Hub ID-SC0711-S1 Status LED Active LED USB type B Serial Port Figure 3: 4-Port Industrial USB to RS-232 Serial Adapter Hub...

  • Page 4: Pin Assignment

    ID-SC0811-S1 Status LED Active LED USB type B RJ45 Figure 4: 8-Port Industrial USB to RS-232 Serial Adapter Hub Pin Assignment Figure 5: RJ45 pin assignment...

  • Page 5: Windows Installation

    Windows Installation Follow the instructions below to install the Industrial USB to RS-232 Serial Adapter Hub drivers. Note: Do not connect the adapter to your computer before installing the driver. Windows 8 (32-/64-bit) / Windows 7 (32-/ 64-bit) / Server 2008 R2 Insert the driver CD.
  • Page 6 At the Installation completed window, click Exit. Plug the adapter into the computer and the driver will be installed automatically. Windows Vista (32-/64-bit) Insert the driver CD. At the prompted driver folder, select 32bit or 64bit folder, then double click MSSetup_QUADPORT.
  • Page 7 Click Install. At the Installation completed window, click Exit. Plug the adapter into the computer and the driver will be installed automatically. Windows 2000 Insert the driver CD. Click Start, Run. Type D:\32bit\MSSetup_ QUADPORT.exe, then click OK. (Change D: to match your CD\DVD-ROM drive letter) Click Install.
  • Page 8 To Verify Windows Installation Go to Device Manager to verify installation. For Windows 8 / Windows 7 / Windows XP / Server 2003 & 2008 R2/ 2000: Right click Computer or My Computer, click Manage, then click Device Manager. For Windows Vista: Right click Computer, click Manage, click Continue, then click Device Manager.

  • Page 9: Mac Os Installation

    Mac OS Installation Insert the driver CD. Double click the Drivers icon on desktop, or go to Drivers, select MAC folder, then double click MCS7840_v2.2.0.dmg. At the prompted folder, double click MS8740_v2.2.0 file. At Introduction, click Continue. At Select Destination, click Continue. For Mac 10.5 or later, skip this step.
  • Page 10 To Verify MAC OS Installation Go to Applications, Utilities, System Profiler or System Information. Click USB from the side bar, and you'll see Vendor- Specific Device displayed under USB 2.0 Hub. Figure 6...

  • Page 11: Technical Support And Warranty

    Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 Industrial USB to RS-232 Serial Adapter Hub is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Mac and Mac OS are registered tradmarks of Apple, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
