Alliance Laundry Systems UX55PVXF6 Programming Manual

Alliance Laundry Systems UX55PVXF6 Programming Manual

Washer-extractors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

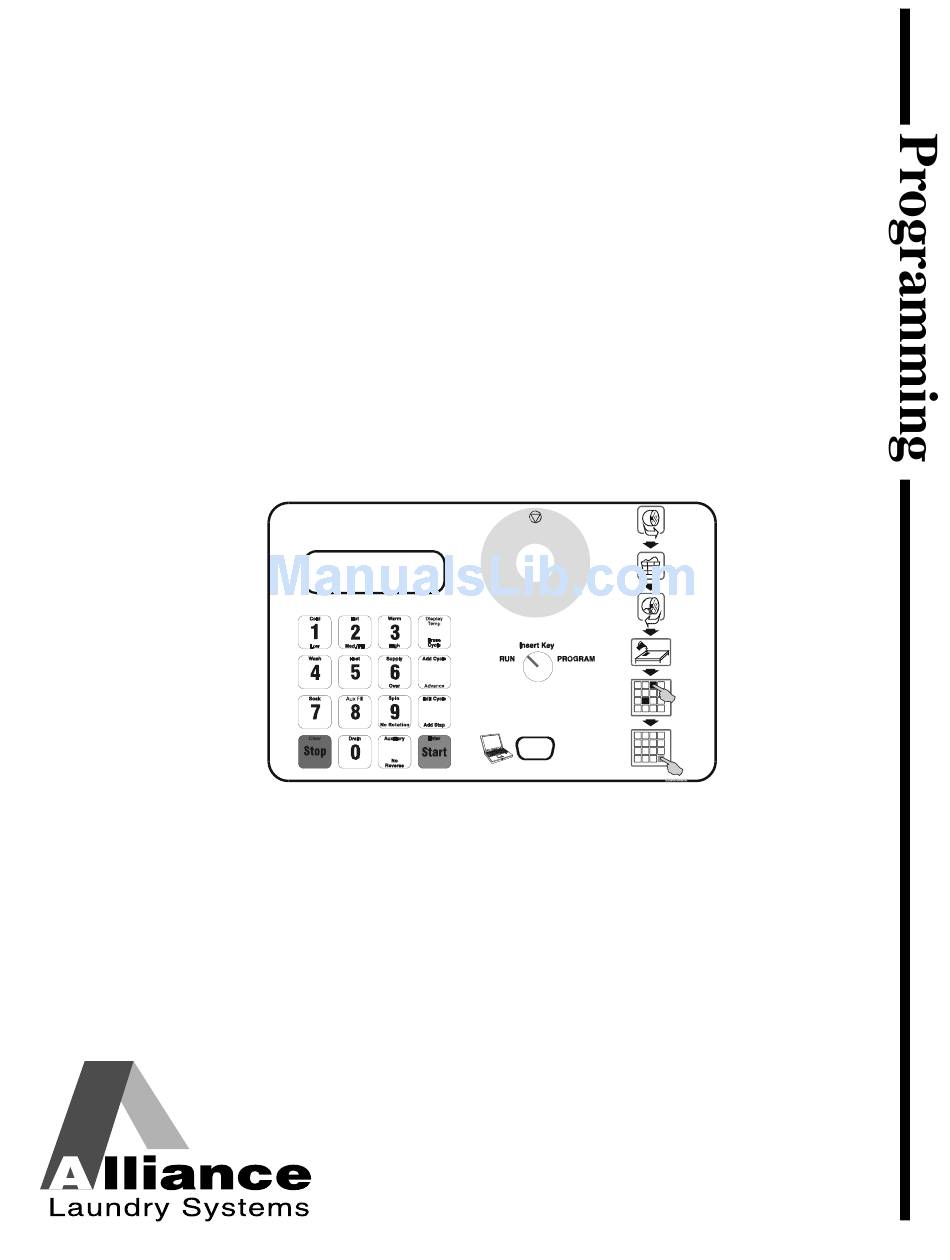

Washer-Extractors
Cabinet Freestanding
WE-8 Computer
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 9002101R2
www.comlaundry.com
July 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UX55PVXF6 and is the answer not in the manual?

Questions and answers

Related Manuals for Alliance Laundry Systems UX55PVXF6

Summary of Contents for Alliance Laundry Systems UX55PVXF6

  • Page 1 Washer-Extractors Cabinet Freestanding WE-8 Computer Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 9002101R2 www.comlaundry.com July 2011...
  • Page 3 These factors MUST BE supplied by the person(s) installing, maintaining, or operating the washer. Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002101...

  • Page 4: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002101...

  • Page 5: Model Identification

    Introduction Model Identification Information in this manual is applicable to these models: UX55PVXF6 UX055PVXF7 UX55PVXF7 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 6: Programming

    Press “1” to change drain 1 to pump or valve. Press “2” to change drain 2 to pump, valve or none. Drain 1 : Pump Drain 2 : None 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 7 Heating : 9 kW Press “Enter” to select advance mode in run mode yes or no. Advance : Yes Press “Advance” to change between yes and no. Advance : No 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 8 Fill in between 00 and 99. Press “Enter” to finish the settings. Press “Enter” to save the settings or press “Stop” to exit without saving. Program Cycle 00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 9: Version Of Control

    An opening will turn the programmed supply/ies off and halt the time for the supply to be on. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 10: Explanation Of The Step Functions

    Then you will be asked for the step time limit. 2 minutes to finish filling. If after 2 minutes it has not finished filling, cycle is aborted. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 11 Step XX Cycle XX 5 min 30 sec Step XX Cycle XX Warm Step XX Cycle XX Warm Low Step XX Cycle XX 0°F Step XX Cycle XX 95°F 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 12 0 min Step XX Cycle XX 8 min 00 sec Heat: Step XX Cycle XX 0 min 20 sec * Refer to section on Wash 5 Thermal Cool-Down. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 13 Step XX Cycle XX 0 hours Step XX Cycle XX 0 hours Step XX Cycle XX 0 hours 45 min Step XX Cycle XX 1 hours 00 min 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 14 You can also change Fill in the minutes the temperature by pressing first “Soak” and then (example: 23 minutes). “Heat”. Step XX Cycle XX 2 hours 23 min Press “Enter”. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 15 (as a sub part of the spin step). A programmed drain step will be skipped if spin step is programmed immediately after it. Step XX Cycle XX 5 min 30 sec 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 16: Example: Making A New Program

    To program or edit cycles turn the key into the Cycle 51 Program Mode. “Program Cycle xx” will be shown on the display. Step 01 Cycle 51 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 17 Step 01 Cycle 51 Step 02 Cycle 51 5 min 30 sec 0 min 20 sec Cycle 51 Cycle 51 Step 02 Cycle 51 Step 03 Cycle 51 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 18 Cycle 51 Drain 1 Step 04 Cycle 51 Step 05 Cycle 51 0 min Step 04 Cycle 51 Step 05 Cycle 51 Wash 1 min 25 sec 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 19 Step 06 Cycle 51 Spin 1 Step 06 Cycle 51 Spin 3 Step 06 Cycle 51 0 min Step 06 Cycle 51 8 min 30 sec Cycle 51 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 20: Edit A Cycle

    Select another wash action or press the “Clear” button to change the function. Step 02 Cycle 51 Fill in the function desired (example: soak for 1 hour 30 minutes). Press the “Soak” button. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 21 “Advance” until the display shows “end cycle 55”. Cycle Press “Enter” to confirm. Enter to save ? Press “Enter” to save or “Stop” to ignore the changes. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 22: Changing The Time Of A Step

    Step 02 Cycle 51 5 min 00 sec Press “Clear” to change the time. Step 01 Cycle 51 5 min Fill in another time (example: 6 minutes 20 seconds). 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 23 Press the “Advance” button until display shows “End Cycle 51”. Cycle 51 Press “Enter” to confirm. Enter to save ? Press “Enter” to save or “Stop” to ignore the changes. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 24: Delete A Step

    Press the “Clear” button once more. Step deleted The step is deleted. Press the “Advance” button to end cycle 51 and press “Enter” 2 times to save the settings. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 25: Insert A Step

    The control will insert a step before the step selected. Select the function (example: supply). Step 02 Cycle 51 Supply Press the supply number (example: supply 7). 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 26 Press the “Advance” button until “End Cycle 51” is displayed. End Cycle 51 Press “Enter” to confirm. Enter to save ? Press “Enter” to save or “Stop” to ignore the changes. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 27: Delete A Cycle

    Press the number of the cycle being erased (example: 55). Erase Cycle 55 Press “Enter” to confirm. Enter to save ? Press “Enter” to save or “Stop” to ignore the changes. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 28: Reloading Previous Settings

    The control will ask if earlier settings are desired. Press “Enter” to confirm the settings. NOTE: This function only goes back to the last programming function entered. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 29: Cycle Count

    Total Cycle : 5 “Advance” key to continue into calibration mode, or press “Clear/Stop” key to exit. Example display shows 5 total cycles have been OR... run. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 30: Calibration Of The Machine

    After the reference value is shown, the machine will coast down to stop. When the machine stands still, the board will unlock the door. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 31: Speed Calibration

    If shell is empty of water and display reads 0.0", then press “Add Cycle/Advance”. Motor Control Distribute Speed # rpm Spin # rpm Calibrate 1 100 rpm Spin # rpm 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 32 Wash 3, no agitation (32 F) 1:00 Drain 2 2:30 Warm Fill to High Level 3:30 Wash 3, no agitation (32 F) 1:00 Drain 2 2:30 Warm Fill to Low Level 3:30 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 33 Wash 1 18/3 (32 F) 2:00 Drain 2 2:30 Warm Fill to Low Level 5:00 Supply 6 0:30 Wash 1 18/3 (32 F) 4:00 Drain 2 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 34 Wash 1 18/3 (32 F) 4:00 Supply 6 0:30 Drain 2 2:30 Wash 1 18/3 (32 F) 4:00 Spin 4 3:00 Drain 2 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 35 Drain 2 2:30 Warm Fill to Low Level 5:00 Spin 4 3:00 Supply 6 0:30 Wash 1 18/3 (32 F) 4:00 Drain 2 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 36 Spin 4 3:00 Drain 1 2:30 Warm Fill to Low Level 5:00 Supply 6 0:30 Wash 1 18/3 (32 F) 4:00 Drain 1 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 37 Wash 1 18/3 (32 F) 2:00 Drain 1 2:30 Warm Fill to Low Level 5:00 Supply 6 0:30 Wash 1 18/3 (32 F) 4:00 Drain 1 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 38 Wash 3, no agitation (32 F) 3:00 Warm Fill to High Level 5:00 Drain 2 2:30 Wash 3, no agitation (32 F) 3:00 Warm Fill to Low Level 5:00 Drain 2 2:30 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 39 Auxiliary Fill to Med Level 1:30 Wash 3, no agitation (32 F) 1:30 Drain 2 2:30 Auxiliary Fill to Med Level 1:30 Wash 3, no agitation (32 F) 1:30 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 40 Cold Fill to High Level 2:00 Supply 5 3:00 Supply 1 1:00 Supply 6 3:00 Supply 3 1:00 Supply 9 1:00 Drain 2 2:00 Drain 1 2:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 41 Step Description Min:sec Hot Fill to High Level 2:00 Drain 1 1:00 Supply 2 1:00 Spin 1 0:30 Drain 2 2:00 Spin 4 3:00 Drain 1 2:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 42 Wash 1 18/3 (32 F) 2:00 Drain 2 2:30 Warm Fill to Low Level 5:00 Supply 3 0:30 Wash 1 18/3 (32 F) 4:00 Drain 2 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 43 Wash 1 18/3 (32 F) 4:00 Supply 3 0:30 Drain 2 2:30 Wash 1 18/3 (32 F) 4:00 Spin 4 3:00 Drain 2 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 44 Warm Fill to Low Level 5:00 Drain 2 2:30 Supply 3 0:30 Spin 4 3:00 Wash 1 18/3 (32 F) 4:00 Drain 2 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 45 Spin 4 3:00 Drain 1 2:30 Warm Fill to Low Level 5:00 Supply 3 0:30 Wash 1 18/3 (32 F) 4:00 Drain 1 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 46 Wash 1 18/3 (32 F) 2:00 Drain 1 2:30 Warm Fill to Low Level 5:00 Supply 3 0:30 Wash 1 18/3 (32 F) 4:00 Drain 1 2:30 Spin 4 3:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 47 1:00 Supply 3, 6 1:00 Supply 4, 5 1:00 Cold Fill to Low Level 1:00 Drain 1 1:00 Cold Fill to Low Level 1:00 Drain 1 1:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 48 Auxiliary Fill to Low Level 0:15 Cold Fill to Med Level 5:00 Wash 1, no reverse (32 F) 0:40 Drain 2 1:00 Spin 1 2:20 Spin 2 2:00 Spin 3 2:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 49 2:00 Wash 3, no agitation (32 F) 3:00 Drain 2 2:00 Auxiliary Fill to High Level 2:00 Wash 3, no agitation (32 F) 3:00 Drain 2 2:00 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 50 In & Out Drain1 : Valve Drain2 : Pump Inlet options : Reuse Behaviour Advance : yes Chemical hold : no Spin retries : 5 Show temp : yes 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 51: Inverter Drive Error Codes

    It may also balanced. stop be activated by a surge voltage generated in the power supply system. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 52 “ground fault detection at start” to set ground fault. whether the protective function is to be activated or not. (In the 400V class, the protective function is always active.) 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 53 For the inverter which contains a Check the cooling Replace the fan as cooling fan, FN appears on the fan’s operation. needed. operation panel when the cooling fan fails. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 54 RESET of the PU has been set in Pr. 75 “PU stop made by pressing correctly. selection” key of the STOP RESET operation panel during external operation. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 55 The power supply has fallen below a This fault appears Apply the proper specified level. every time the voltage to the machine is powered machine. down. Check the power supply voltage. 9002101 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
