Alliance Laundry Systems SW039 Installation/Operation Supplement

Alliance Laundry Systems SW039 Installation/Operation Supplement

Cabinet freestanding
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Washer-Extractors
Cabinet Freestanding
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 9001014R5
www.comlaundry.com
July 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW039 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems SW039

Summary of Contents for Alliance Laundry Systems SW039

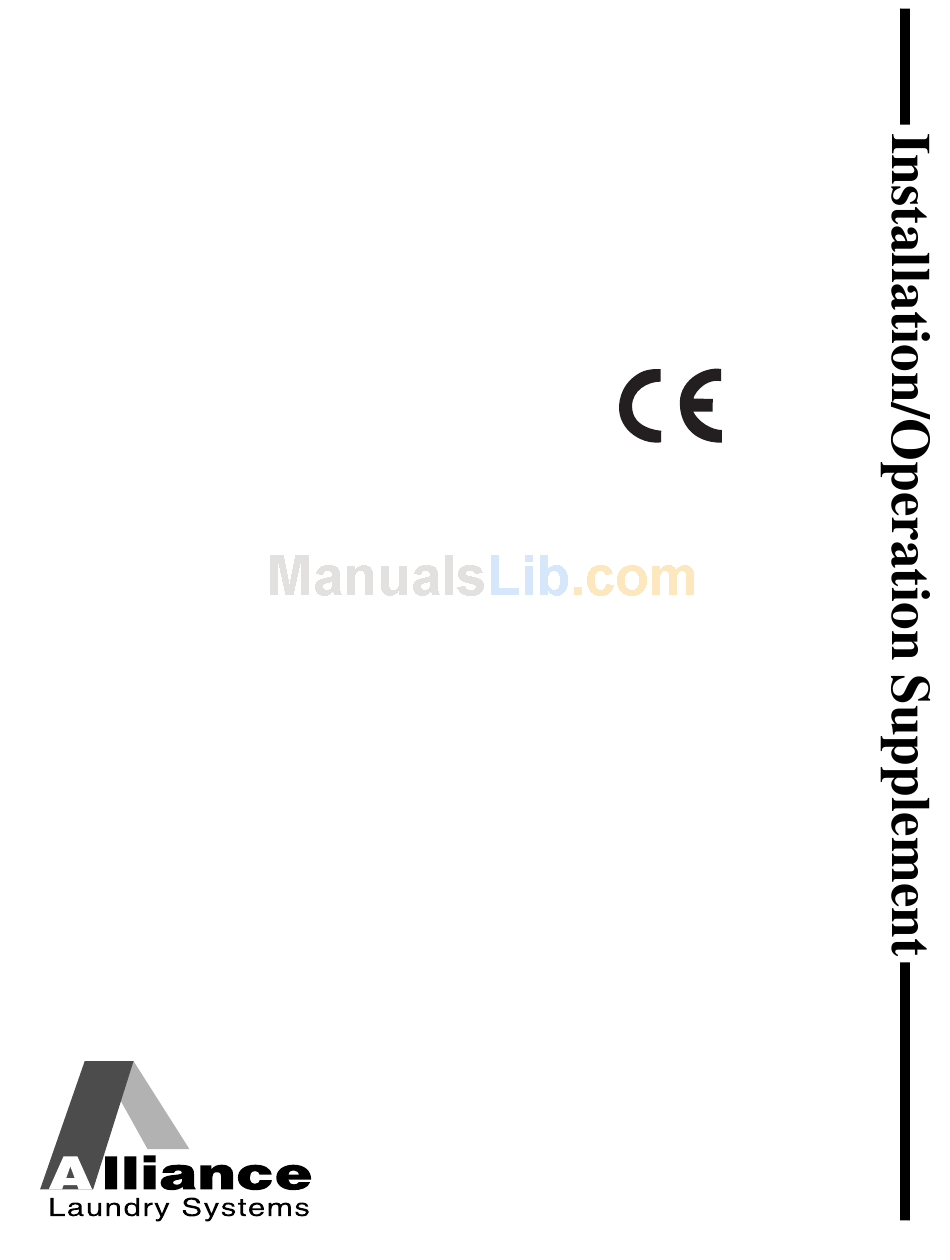

  • Page 1 Washer-Extractors Cabinet Freestanding Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 9001014R5 www.comlaundry.com July 2008...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction... Model Identification ...

  • Page 4: Model Identification

    Model Identification Information in this manual is applicable to these models: HX18PV HX75PV HX25PV HX100PV HX35PV HX135PV HX55PV HX165PV © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction SX18PV SX75PV SX25PV SX100PV SX35PV SX135PV SX55PV SX165PV UX18PV...

  • Page 5: Safety Information

    9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information Important Safety Instructions To reduce the risk of fire, electric shock, serious injury or death to persons when...
  • Page 6 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 20. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

  • Page 7: Safety Decals

    9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation/Operation Supplement Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury.

  • Page 8: Operator Safety

    © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Do not bypass any safety devices in the machine. Never operate the machine with a bypassed or disconnected balance system.

  • Page 9: Specifications And Dimensions

    Average water consumption per cycle Power Consumption Average power used per cycle 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation/Operation Supplement General Specifications 660 mm (26 in.) 1031 mm (40.6 in.) 1031 mm (40.6 in.) 1194 mm (47 in.) 780 mm (30.7 in.) 870 mm (34.3 in.) 960 mm (37.8 in.)
  • Page 10 Electrical Heating (Optional) Total electrical heating capacity Electrical heating elements Electrical heat element size Time required to raise bath temperature © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 0.75 kW (1 hp) 10-50 rpm 82 rpm 250-1000 rpm 0.03-0.74 Gs...
  • Page 11 Door opening size Height of door bottom above floor Water Consumption Average water consumption per cycle COLD 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 900 mm 1060 mm 1200 mm (35.4 in.) (41.8 in.) (47.3 in.)
  • Page 12 Average steam use per cycle Electrical Heating (Optional) Total electrical heating capacity Electrical heating elements Electrical heat element size © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 0.75 kW/hr 0.95 kW/hr 1.1 kW/hr 3.75 kW/hr 4.5 kW/hr...
  • Page 13 Model Time required to raise bath temperature 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 10° 6 minutes 6 minutes 50° 8 minutes 6 minutes 10° 5 minutes 5 minutes 50° 10 minutes...
  • Page 14 Fill and Supply Ventilation Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 279 mm (11 in.) 486 mm 660 mm (26 in.)
  • Page 15 Cold Water Inlet (Required) External Liquid Supply Inlets Hot Water Inlet (Required) Ventilation Tub Main Switch 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1.3 in. 1.18 in. (33 mm) (30 mm) 2.56 in. (65 mm)
  • Page 16 Fill and Supply Ventilation Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 639 mm (25.16 in.) 782 mm CFD531N (30.8 in.)
  • Page 17 Hot Water Inlet (Required) Cold Water Inlet (Required) Main Switch Ventilation Tub Electrical Power Input 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1.34 in. (34 mm) 1.44 in. 2.6 in. (36.5 mm) (66 mm) CFD524N 3.23 in.
  • Page 18 Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1499 mm (59 in.) 900 mm (35.43 in.) CFD509N...
  • Page 19 Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1532 mm (60.3 in.) 488 mm CFD510N (19.2 in.)
  • Page 20 Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT CFD511N CFD511N 305 mm (12 in.) 2362 mm (9.3 in.)
  • Page 21 Hot Water Inlet (Required) Cold Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT CFD511N CFD511N 360 mm (14.25 in.) 273 mm (10.75 in.)

  • Page 22: Installation

    25.4 mm machines (side) (1 in.) Minimum front clearance 419 mm (door swing) (16.5 in.) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation Recommended Minimum Clearances 600 mm 600 mm 600 mm (24 in.) (24 in.) (24 in.)

  • Page 23: Machine Foundation

    (39.4 lbs-ft (31.1 lbs-ft 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The washer-extractor must be placed on a smooth level surface so that the entire base of the machine is supported and rests on the mounting surface.

  • Page 24: Mechanical Installation

    486 mm (2.17 in.) (19.13 in.) 87 mm (3.43 in.) 25 MODEL Figure 10 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 45 mm (1.77 in.) 770 mm (30.31 in.) 670 mm 45 mm (26.38 in.) (1.77 in.)
  • Page 25 1040 mm (1.57 in.) (40.94 in.) 80 mm (3.15 in.) 100 MODEL Figure 14 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 42,5 mm (1.67 in.) 1080 mm 1185 mm (42.52 in.) (46.65 in.) 42,5 mm (1.67 in.)

  • Page 26: Mounting Bolt Installation (If Required)

    12 mm; for the 55-75-100-135-165 models, the diameter of the bolt must be minimum 5/8-11 or 16 mm.) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4. To level machine, fill the spaces between the machine base and floor with machinery grout.

  • Page 27: Electrical Specifications

    50/60 380-415 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Electrical Specifications Standard 3+PE 3+N+PE Not available 3+PE Not available 2/3+PE 3+PE 3+N+PE Not available 3+PE...

  • Page 28: Operation

    Installation/Operation Supplement Control Identification Keypad Display Emergency Stop Button © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Figure 18 Key Switch Serial Port 9001014...

  • Page 29: Load The Machine

    2. Load the drum to the specified capacity. 3. Close the door by pushing the door handle towards the machine. 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT For models: 100PV-165PV SX100PV SX135PV UX25PV...

  • Page 30: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit

    MIX1N purchased. Figure 19 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
