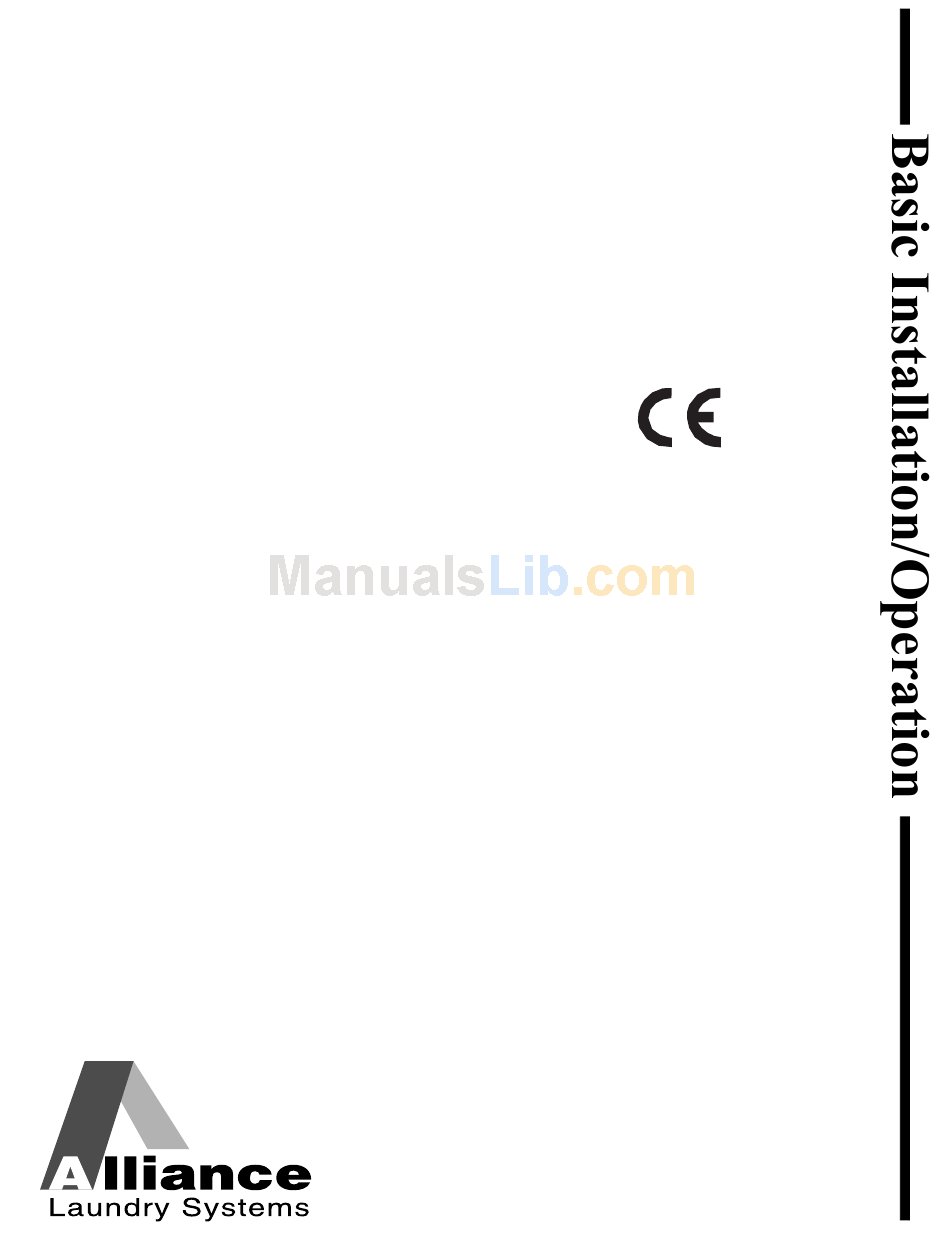

  • Page 1 Washer-Extractors Cabinet Freestanding Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 9001014R7 www.comlaundry.com June 2010...
  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction... Model Identification ...
  • Page 4: Model Identification

    Information in this manual is applicable to these models: HX18PV HX100PV HX25PV HX135PV HX35PV HX165PV HX55PV HX200PV HX75PV SX18PV © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction SX25PV SX135PV SX35PV SX165PV SX55PV SX200PV SX75PV UX18PV SX100PV UX25PV...
  • Page 5: Safety Information

    9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information Important Safety Instructions To reduce the risk of fire, electric shock, serious injury or death to persons when...
  • Page 6 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 20. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
  • Page 7: Safety Decals

    9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury.
  • Page 8: Operator Safety

    © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Do not bypass any safety devices in the machine. Never operate the machine with a bypassed or disconnected balance system.
  • Page 9: Specifications And Dimensions

    † For Models with A or M in the 8 †† For Models with U in the 8 position in the model number (e.g *X18PVXU6) 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 660 mm 660 mm (26 in.)
  • Page 10 Steam inlet connection size Number of steam inlets Electrical Heating (Optional) Total electrical heating capacity Electrical heating elements Electrical heat element size © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT (continued) General Specifications 0.75 kW 0.75 kW (1 HP) (1 HP) (2.95 HP)
  • Page 11 395 mm (15.6 in.) Height of door bottom above 559 mm floor (22 in.) 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 1060 mm 1200 mm (41.8 in.) (47.3 in.) 1560 mm 1920 mm (61.4 in.)
  • Page 12 Steam inlet connection size Number of steam inlets Electrical Heating (Optional) Total electrical heating capacity Electrical heating elements Electrical heat element size © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT (continued) General Specifications 3 kW 4 kW 5.5 kW (4 HP) (5.4 HP)
  • Page 13 Fill and Supply Ventilation Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 279 mm (11 in.) 486 mm 660 mm (26 in.)
  • Page 14 Fill and Supply Ventilation Cold Water Inlet (Required) External Liquid Supply Inlets Hot Water Inlet (Required) Ventilation Tub Main Switch © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 33 mm 30 mm (1.3 in.) (1.18 in.) 65 mm (2.56 in.)
  • Page 15 Fill and Supply Ventilation External Liquid Supply Inlets Cold Water Inlet (Required) Cold Water Inlet (Required) Hot Water Inlet (Required) 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 50 mm 34 mm (1.97 in.) (1.34 in.) 86.5 mm...
  • Page 16 Fill and Supply Ventilation Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 639 mm (25.16 in.) 782 mm CFD531N (30.8 in.)
  • Page 17 Hot Water Inlet (Required) Cold Water Inlet (Required) Main Switch Ventilation Tub Electrical Power Input 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 34 mm (1.34 in.) 36.5 mm 66 mm (1.44 in.) (2.6 in.)
  • Page 18 Fill and Supply Ventilation External Liquid Supply Inlets Cold Water Inlet (Required) Cold Water Inlet (Required) Hot Water Inlet (Required) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 50 mm 34 mm (1.97 in.) (1.34 in.)
  • Page 19 Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1499 mm (59 in.) 900 mm (35.43 in.) CFD509N...
  • Page 20 Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1532 mm (60.3 in.) 488 mm CFD510N (19.2 in.)
  • Page 21 Hot Water Inlet (Required) Cold Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT CFD511N CFD511N 305 mm (12 in.) 2362 mm (9.3 in.)
  • Page 22 Cold Water Inlet (Required) Hot Water Inlet (Required) Cold Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT CFD511N CFD511N 360 mm (14.25 in.) 273 mm (10.75 in.)
  • Page 23 Hot Water Inlet (Required) Cold Water Inlet (Required) Cold Water Inlet (Required) Flushing Supply Dispenser External Liquid Supply Inlets 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 44 mm (1.73 in.) 272 mm (10.71 in.) 81 mm (3.19 in.)
  • Page 24: Installation

    419 mm 419 mm 533 mm front (16.5 in.) (16.5 in.) clearance (door swing) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installation Recommended Minimum Clearances 600 mm 600 mm 600 mm (24 in.) (24 in.) (24 in.)
  • Page 25: Machine Foundation

    750/16 1200/16 1200/16 1200/16 1700/15 2000/15 2960/13 3900/13 4960/13 6100/13 Load, (N/Hz) 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The washer-extractor must be placed on a smooth level surface so that the entire base of the machine is supported and rests on the mounting surface.
  • Page 26: Mechanical Installation

    486 mm (2.17 in.) (19.13 in.) 87 mm (3.43 in.) 25 MODEL Figure 13 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT (.87 in.) 670 mm 50 mm (26.38 in.) (1.97 in.) 87 mm 45 mm (3.43 in.)
  • Page 27 740 mm (1.97 in.) (29.13 in.) 80 mm (3.15 in.) 55 MODEL Figure 17 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 34 mm (1.34 in.) 60 mm (2.36 in.) 960 mm (37.8 in.) 60 mm 50 mm (2.36 in.)
  • Page 28 (1.3 in.) 1140 mm (44.9 in.) 80 mm (3.15 in.) 165 MODEL Figure 21 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 44 mm (1.73 in.) 1270 mm (50 in.) 44 mm (1.73 in.) 61 mm (3.19 in.)
  • Page 29: Mounting Bolt Installation (If Required)

    200 models, the diameter of the bolt must be minimum 5/8-11 or 16 mm.) 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4. To level machine, fill the spaces between the machine base and floor with machinery grout.
  • Page 30: Electrical Specifications

    440-480 50/60 380-415 50/60 200-240 50/60 440-480 50/60 380-415 50/60 200-240 50/60 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Electrical Specifications Standard 3+PE 3+N+PE Not available 3+PE Not available 2/3+PE 3+PE 3+N+PE Not available 3+PE...
  • Page 31 Voltage Designation 440-480 50/60 380-415 50/60 200-240 50/60 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Table 3 (continued) Electrical Specifications Standard 3+PE 3+N+PE 3+PE Table 3 Basic Installation/Operation Electric Heat 10/6.0 Not available 10/6.0 Not available 8/10.0...
  • Page 32: Operation

    Basic Installation/Operation Control Identification Keypad Display Emergency Stop Button © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Figure 24 Key Switch Serial Port 9001014...
  • Page 33: Load The Machine

    3. Close the door by pushing the door handle towards the machine. 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Basic Installation/Operation For models: 100PV-200PV 1. Push on the doorlock system to open the door.
  • Page 34: Disposal Of Unit

    MIX1N purchased. Figure 25 9001014 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
