3. With the printer powered, press the Install Cartridge
key on the operator panel to position the print head
carriage in the head loading position. The light indicators
on the operator panel will both start flashing.
If you do nothing for 30 seconds, the print head carriage
will return to its rest position*. To return the print head
carriage to the head loading position, you must press
Install Cartridge again.
* The print head carriage will not return to its rest
position if there is no print head inserted.
4. Open the top cover of the printer.

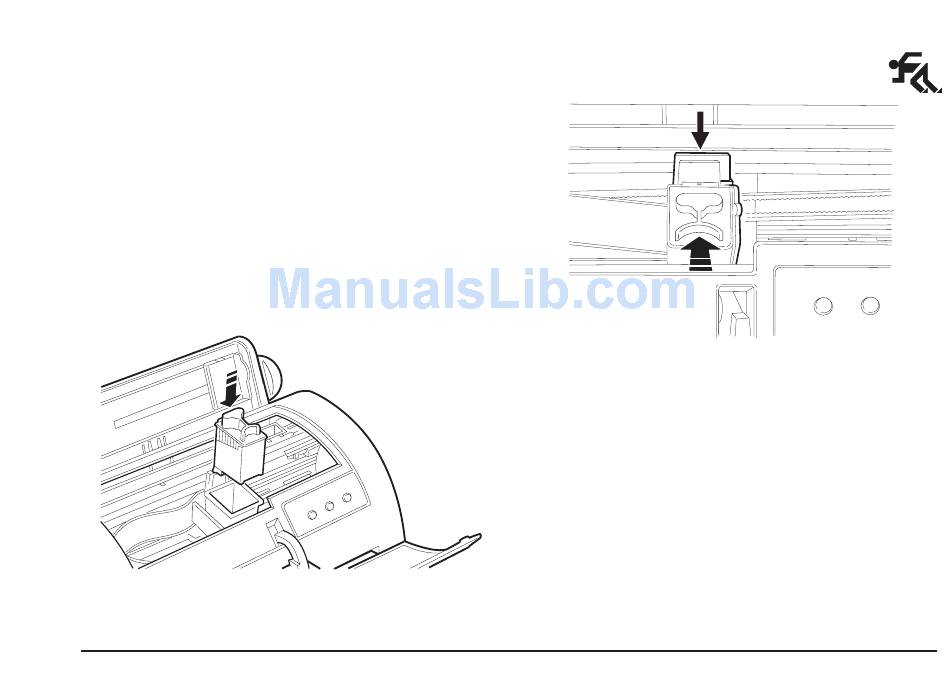

5. With the electrical contacts towards the corresponding
contacts in the housing on the print head carriage, insert
the print head gently into its chamber.
Quick Start
6. While holding the lip at the rear of the print head
insertion area, push the print head towards the
rear of the printer to click it in place.
7. Press the Install Cartridge key on the operator panel.
The print head carriage will move to its rest position, at
the left hand side of the printer.
8. Close the top cover
See Chapter 2 in the User Guide for further details on the
handling and care of the ink jet print head.
5
