Initial Configuration - ADDER AdderLink Digital iPEPS User Manual

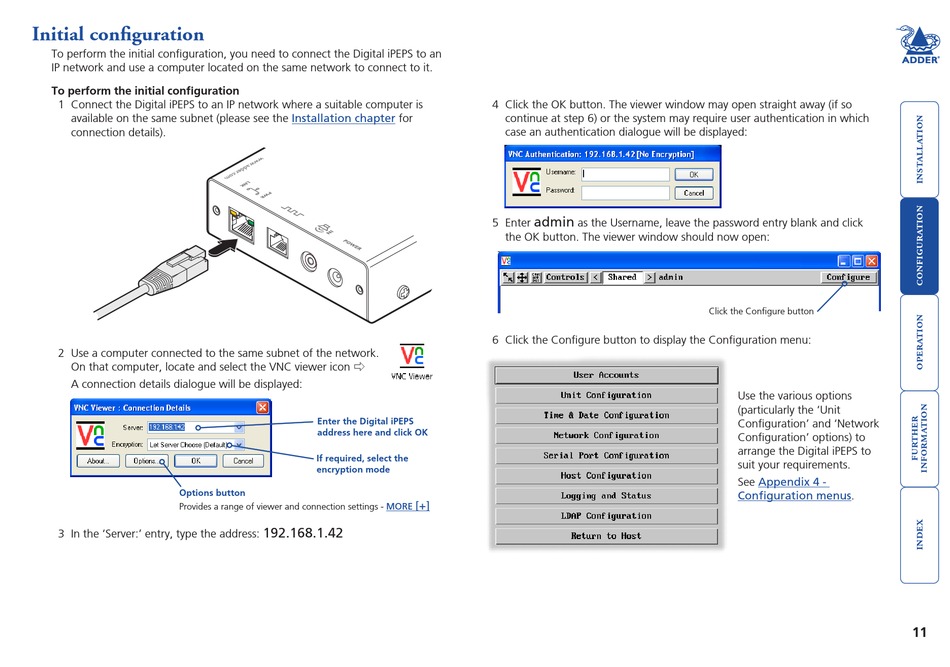

Initial configuration

To perform the initial configuration, you need to connect the Digital iPEPS to an
IP network and use a computer located on the same network to connect to it.
To perform the initial configuration
1 Connect the Digital iPEPS to an IP network where a suitable computer is
available on the same subnet (please see the
connection details).
2 Use a computer connected to the same subnet of the network.
On that computer, locate and select the VNC viewer icon
A connection details dialogue will be displayed:
Options button
Provides a range of viewer and connection settings -
3 In the 'Server:' entry, type the address:
Installation chapter for

Enter the Digital iPEPS
address here and click OK
If required, select the
encryption mode
[+]
MORE
192.168.1.42
4 Click the OK button. The viewer window may open straight away (if so
continue at step 6) or the system may require user authentication in which
case an authentication dialogue will be displayed:
admin
5 Enter as the Username, leave the password entry blank and click
the OK button. The viewer window should now open:
6 Click the Configure button to display the Configuration menu:
Click the Configure button
Use the various options
(particularly the 'Unit
Configuration' and 'Network
Configuration' options) to
arrange the Digital iPEPS to
suit your requirements.
See Appendix 4 -
Configuration menus.
11
