Mounting

Before you begin connecting to the source PC system and display devices, it is
advisable to mount the AdderLink AV modules in place. There are a number of
mounting possibilities for the transmitter and receiver modules:
• On a horizontal surface using the supplied self adhesive feet,
• Mounted on a screw using the rear slot,
• Within the optional rack mount
• On inclined surfaces using self adhesive Velcro

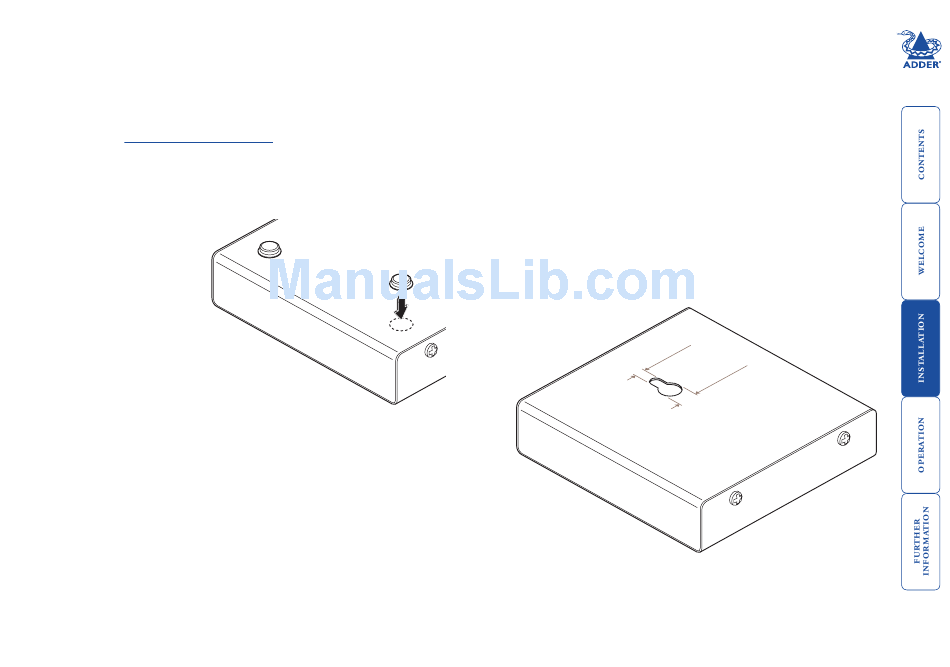

Using the self adhesive feet

Apply the supplied self-
adhesive rubber feet to the
underside corners of the
AdderLink AV modules.
chassis,
strips (not supplied).
©

Using the rear mounting slot

The slot at the rear of each module allows it to be hung upon a fixed screw that
protrudes from the mounting surface.
IMPORTANT: The internal circuit board is accessible through the mounting slot.
Ensure that any mounting screws protrudes no further than ½" (12.5mm) into
the module casing - serious electrical damage will be caused if the screw makes
contact with the internal circuitry.
)
