Connections at the receiver

To connect displays and speakers

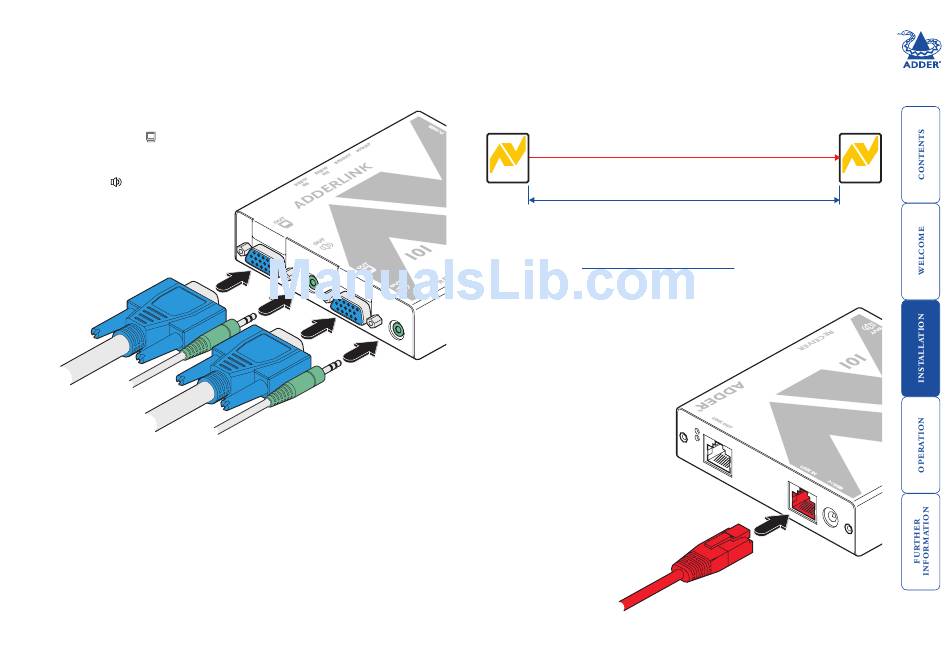

Dual video and audio outputs are provided on the AdderLink AV receiver. Both
sets of ports provide identical signals and their connection procedures are the
same:
1 Attach the video cable from the display module to the
OUT
socket labelled on the AdderLink AV receiver.
2 Attach the stereo audio cable from the
speakers (or amplifier) to the socket
OUT
labelled on the AdderLink AV
receiver.
Link in
The link from the transmitter to each receiver module is made using a twisted
pair cable, specified to Category 5 or higher.
When a single receiver is attached to a link cable, the maximum length of that
link cable is 300 metres (1000 feet).
STANDARD LINK
TRANSMITTER
Overall maximum link length: 300m
However, if further receivers are connected in cascade to the initial receiver
(using the port – AdderLink AV101 modules only), then the overall
LINK OUT
length of the link cables used must be reduced. For further information, please
Making cascade
refer to the section
NOTE: Where possible, avoid laying the twisted pair link cable(s) alongside
power cables.
1 Attach the connector of the link cable to the socket labelled
on the AdderLink AV receiver. There should be a
LINK IN
click when the cable is fully inserted and locked in
place.
RECEIVER
connections.
13
