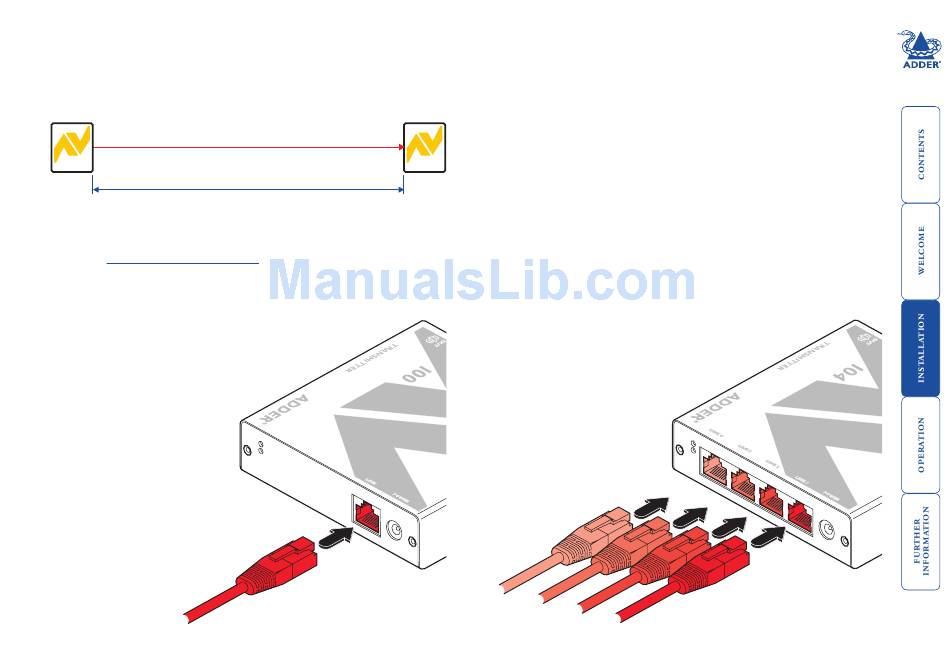

To connect the link cable(s)
The links between the transmitter and receiver modules are made using
between one and four twisted pair cables, specified to Category 5 or higher.
Each cable carries video and audio signals to each receiver module.
When a single receiver is attached to a link cable, the maximum length of that
link cable is 300m (1000 feet).
STANDARD LINK
TRANSMITTER
Overall maximum link length: 300m
However, if further receivers are connected in cascade to the initial receiver
using its port (AdderLink AV101 models only), then the overall length
LINK OUT
of the link cables used must be reduced. For further information, please refer to
the section Making cascade connections.
NOTE: Where possible, avoid laying the twisted pair link cable(s) alongside
power cables.
AdderLink AV100 models
1 Attach the connector of the link cable to the socket labelled
on the AdderLink AV100 transmitter. There should
LINK
be a click when the cable is fully inserted and
locked in place.
RECEIVER
AdderLink AV104 models
1 Attach the connector of the first link cable to the socket
labelled on the AdderLink AV104 transmitter.
L1 OUT
There should be a click when the cable is fully
inserted and locked in place.
2 Attach the connectors of the remaining
link cables to the sockets labelled
to , as required.
L2 OUT L4 OUT
In all cases, there should be
a click when the cable is fully
inserted and locked in place.
