Expansion via cascade links

In order to create small, medium and large digital signage networks, all AV200
transmitters are designed to support additional transmitter modules (and their
subsequent multiple receivers). This is achieved using the video, audio and serial
out ports to provide the inputs into the next transmitter module, and so on.
PC
VIDEO
AUDIO
RS232 SERIAL

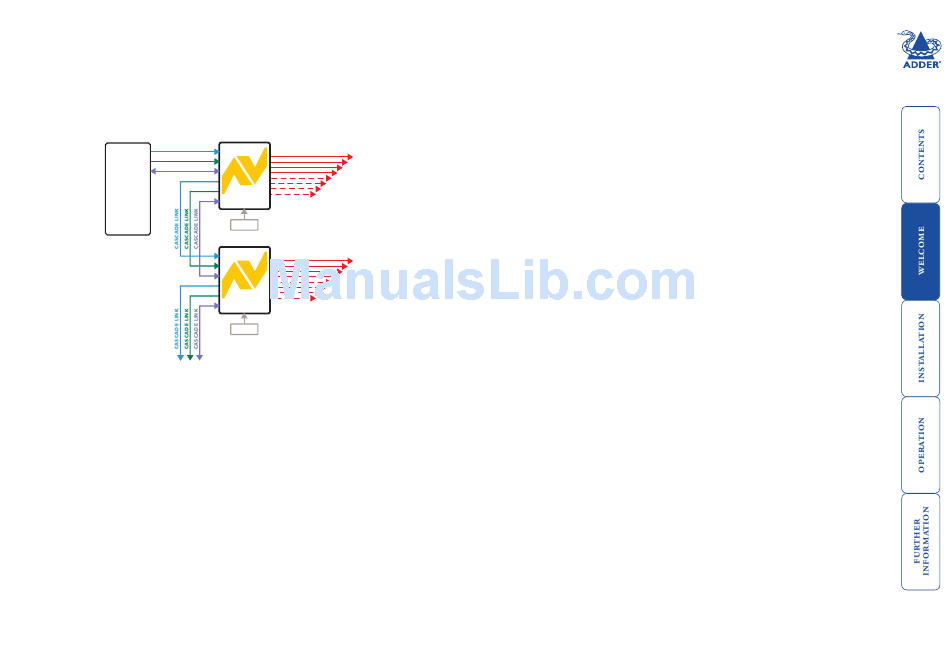

AV transmitters can be
connected in cascade to
provide further video,
audio and serial expansion
opportunities. Note that
the AV200T transmitter
does not support serial
cascade connections.
Note: The AV200T transmitter supports video and audio cascade connections,
however, the module does not include a serial out connector and cannot
support cascaded serial connections.
A limit of three cascade connections are possible between transmitter modules.
Using the corresponding maximum of four AV208T transmitters, this gives an
overall support for up to 64 remote displays on 32 separate CATx branches.
Primary
Transmitter
204T/208T
CATx LINKS TO RECEIVERS
TRANSMITTER
POWER
204T/208T
CATx LINKS TO RECEIVERS
TRANSMITTER
POWER
4
