Using Enclosure Icons to Monitor Enclosure Status
If your storage space includes an enclosure with an enclosure management device, such as a
SCSI Accessed Fault-Tolerant Enclosure (SAF-TE) processor, Adaptec Storage Manager

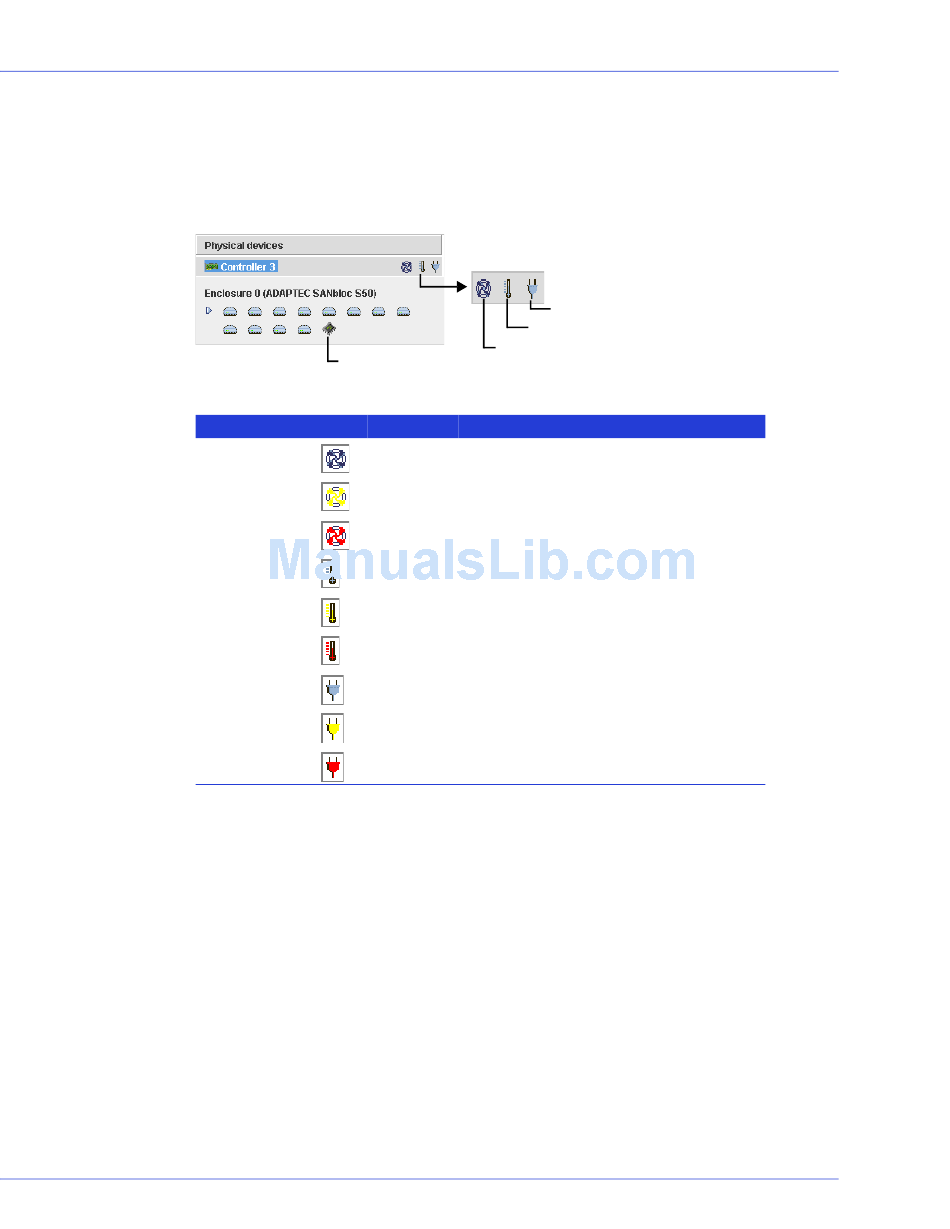

displays temperature, fan, and power module status in the Physical Device view, as shown in
the next figure. The icons change color to indicate status, as described in the table below.
Enclosure Management
Device Icon
Icon Status
Enclosure Fans Normal
Warning
Error
Enclosure Normal
Temperature
Warning
Error
Enclosure Power Normal
Warning
Error
Note:
If your enclosure does not have an enclosure management device, the status icons appear
but do not indicate status.
Chapter 9: Monitoring Status and Activity
Enclosure Status Icons
Power Module Status
Temperature Status
Fan Status
Examples
Fans are working properly.
A fan has failed.
Multiple fans have failed.
Enclosure temperature is normal.
Enclosure temperature is higher than normal.
Enclosure is overheating.
Power supplies are working normally.
One power supply has failed.
Multiple power supplies have failed.
