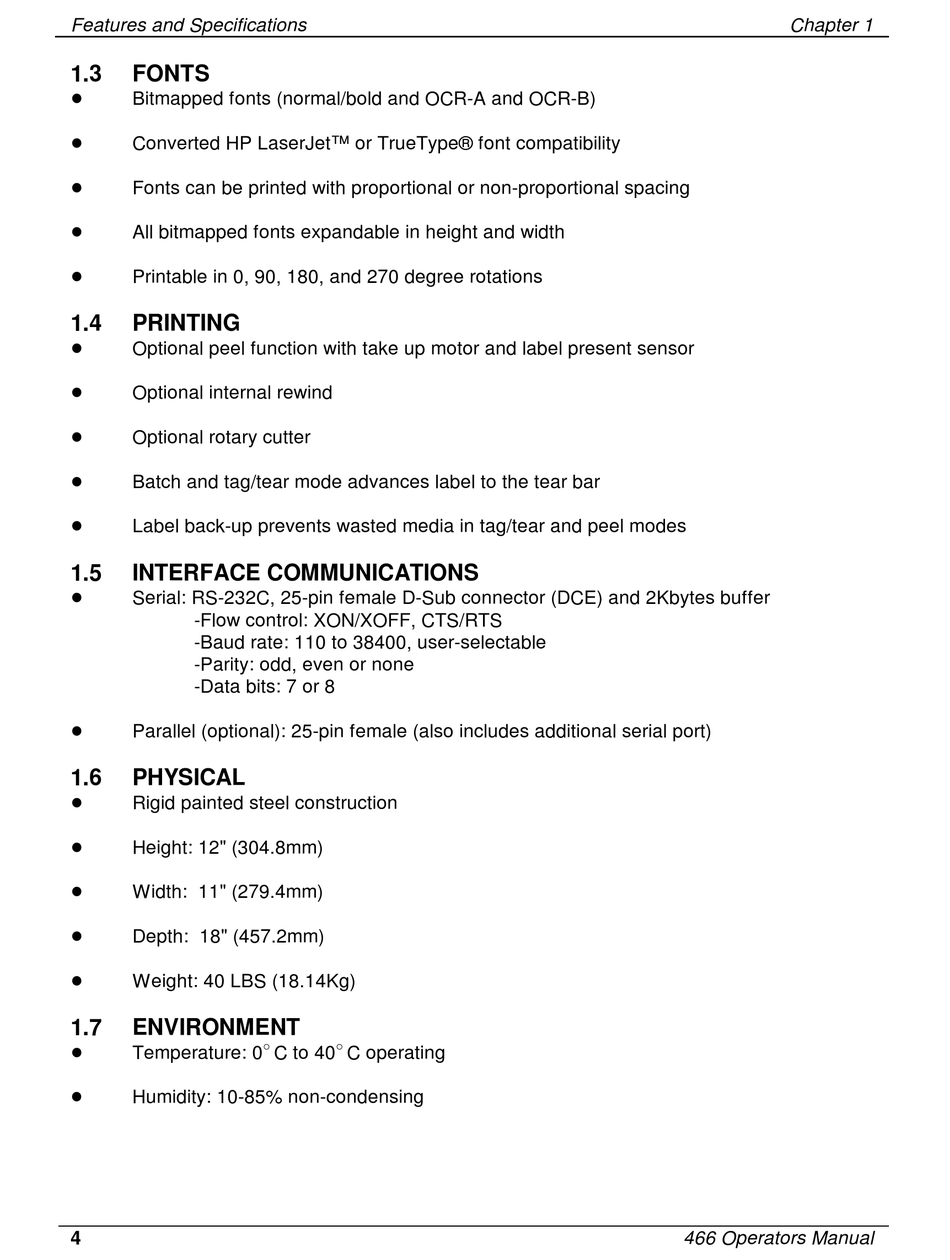

Fonts; Printing; Interface Communications; Physical - Microcom 466 Operator's Manual

Features and Specifications
1.3

FONTS

!
Bitmapped fonts (normal/bold and OCR-A and OCR-B)
!
Converted HP LaserJet™ or TrueType® font compatibility
!
Fonts can be printed with proportional or non-proportional spacing
!
All bitmapped fonts expandable in height and width
!
Printable in 0, 90, 180, and 270 degree rotations
1.4

PRINTING

!
Optional peel function with take up motor and label present sensor
!
Optional internal rewind
!
Optional rotary cutter
!
Batch and tag/tear mode advances label to the tear bar
!
Label back-up prevents wasted media in tag/tear and peel modes
1.5

INTERFACE COMMUNICATIONS

!
Serial: RS-232C, 25-pin female D-Sub connector (DCE) and 2Kbytes buffer
-Flow control: XON/XOFF, CTS/RTS
-Baud rate: 110 to 38400, user-selectable
-Parity: odd, even or none
-Data bits: 7 or 8
!
Parallel (optional): 25-pin female (also includes additional serial port)
1.6

PHYSICAL

!
Rigid painted steel construction
!
Height: 12" (304.8mm)
!
Width: 11" (279.4mm)
!
Depth: 18" (457.2mm)
!
Weight: 40 LBS (18.14Kg)
1.7

ENVIRONMENT

!
Temperature: 0
!
Humidity: 10-85% non-condensing
4
" "
C to 40 C operating
Chapter 1
466 Operators Manual
