Lines - Microcom 466 Operator's Manual

Designing Labels Using LDS
CONSTANT FIELD
This field is always defaulted.
CONSTANT FIELD
This field should be set to a value of 6.
CONSTANT FIELDS
The next 3 fields are always defaulted.
XS X SIZE
The X size of the line. Valid range is 1 to 832.
YS Y SIZE
The Y size of the line. Valid range is 1 to 65536.
CONSTANT FIELDS
The next 6 fields are always defaulted.
AN ATTRIBUTE NUMBER
If set top a value of 1, the line will not reverse any text that is printed under it. A value
of 0 will instruct the printer to reverse any field that is under it (" reverse video" or " white
print on a black background" ). (Note: The line field will only reverse text that has
already been printed on the label. Therefore, to produce a reversed image, the line field
MUST be printed AFTER the image field.)
MAKING LINES
Program sample: Lines

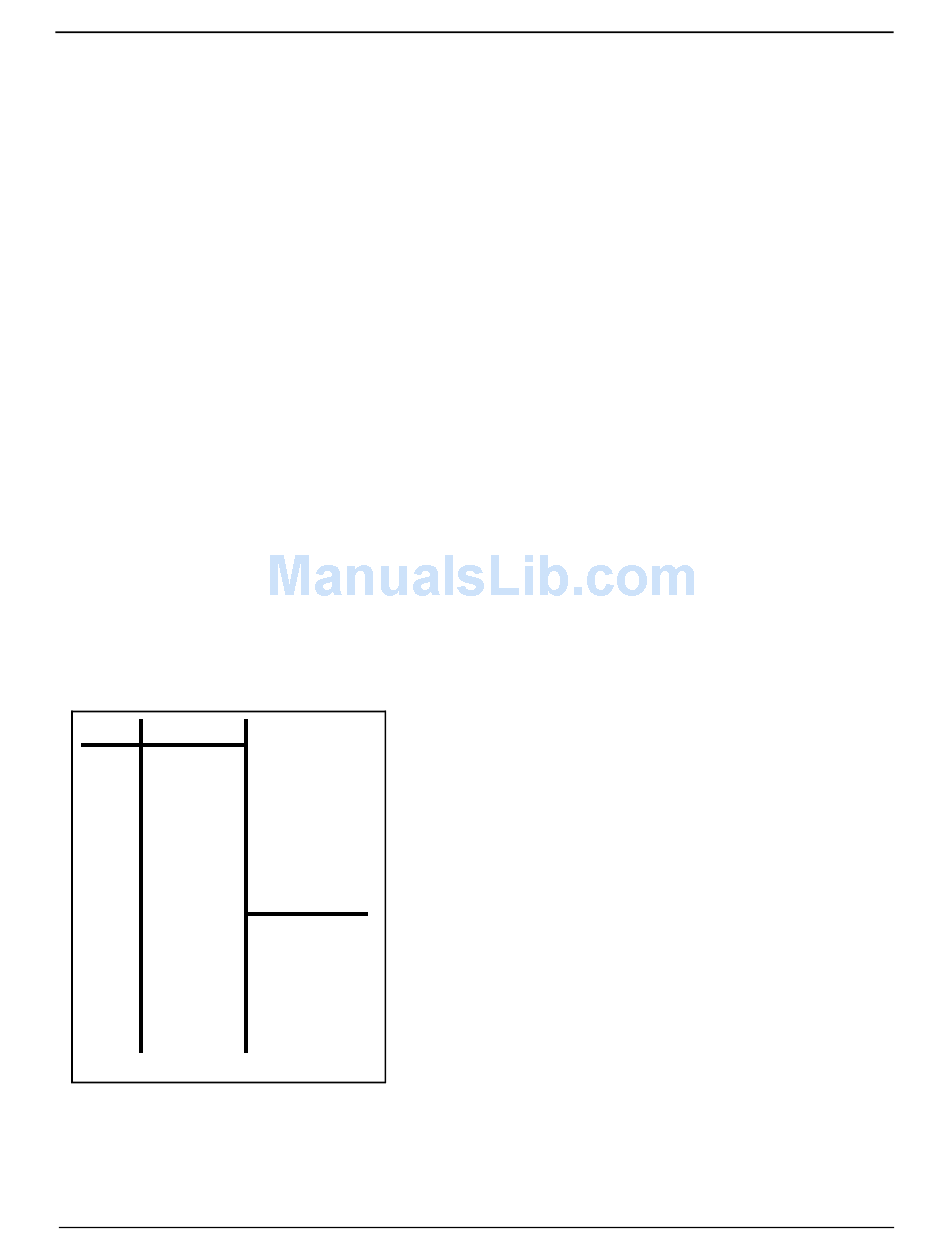

Lines

Figure 10
30
^D57?
4?
1,50,500,,6,,,,150,10?
1,100,50,,6,,,,10,500?
1,250,50,,6,,,,10,500?
1,250,250,,6,,,,150,10?
^D56?
^D2?
.?
^D3?
Chapter 4
466 Operators Manual
