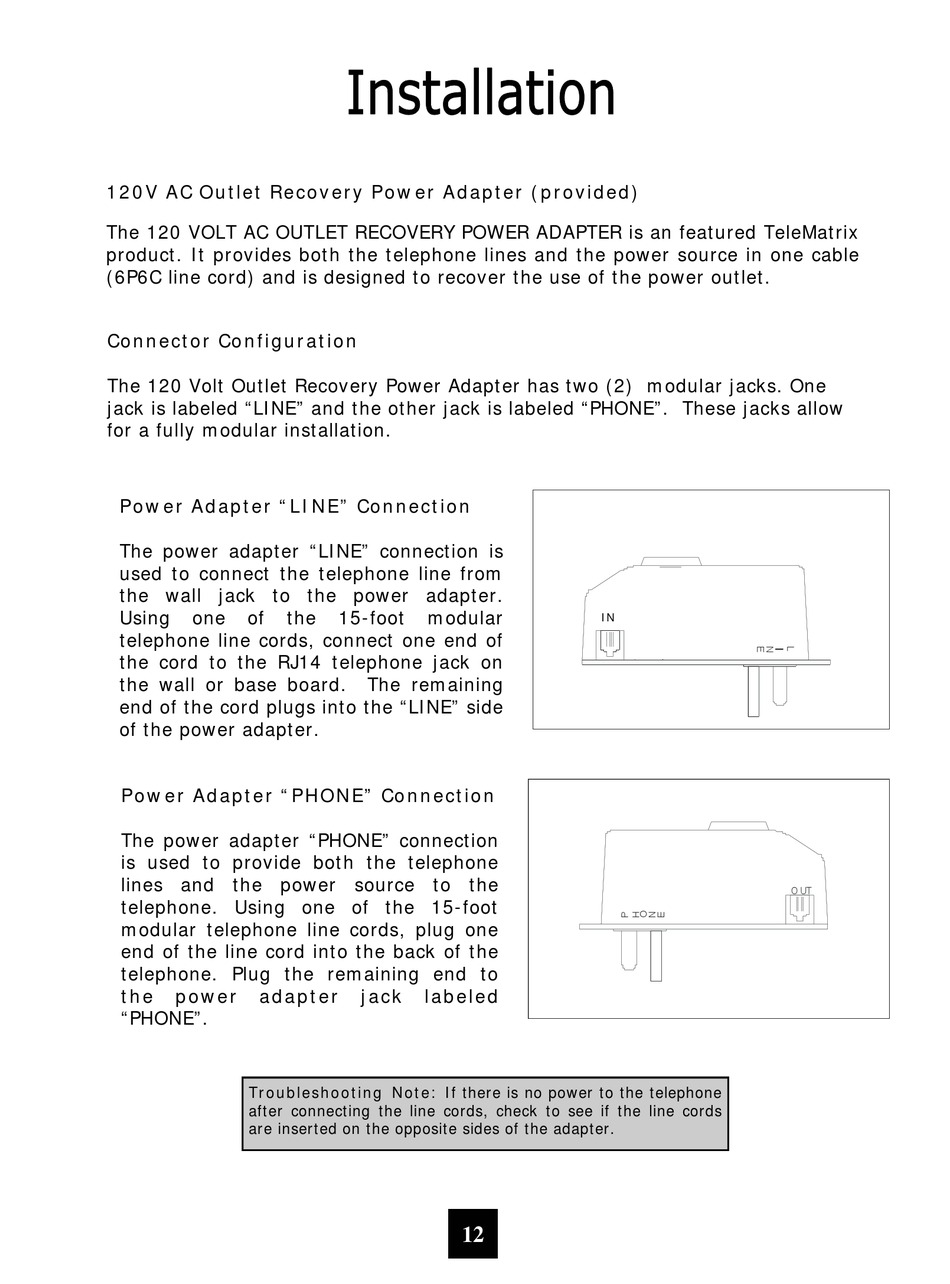

120V AC Outlet Recovery Power Adapter (provided)
The 120 VOLT AC OUTLET RECOVERY POWER ADAPTER is an featured TeleMatrix
product. It provides both the telephone lines and the power source in one cable
(6P6C line cord) and is designed to recover the use of the power outlet.
Connector Configuration
The 120 Volt Outlet Recovery Power Adapter has two (2) modular jacks. One
jack is labeled "LINE" and the other jack is labeled "PHONE". These jacks allow
for a fully modular installation.
Power Adapter "LINE" Connection
The power adapter "LINE" connection is
used to connect the telephone line from
the wall jack to the power adapter.
Using one of
telephone line cords, connect one end of
the cord to the RJ14 telephone jack on
the wall or base board.
end of the cord plugs into the "LINE" side
of the power adapter.
Power Adapter "PHONE" Connection
The power adapter "PHONE" connection
is used to provide both the telephone
lines and the power source to the
telephone. Using one of the 15-foot
modular telephone line cords, plug one
end of the line cord into the back of the
telephone. Plug the remaining end to
the power adapter
"PHONE".
Troubleshooting Note: If there is no power to the telephone
after connecting the line cords, check to see if the line cords
are inserted on the opposite sides of the adapter.
the 15-foot modular
The remaining
jack labeled
