Telematrix SP-100 User Manual

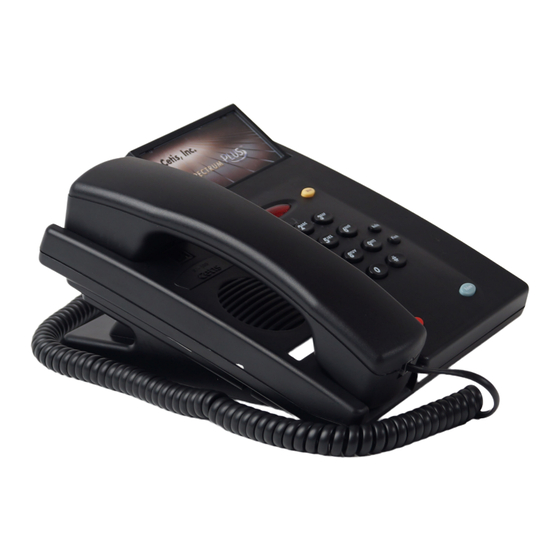

Telematrix spectrumplus series single line feature telephone
Hide thumbs Also See for SP-100:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Telematrix SP-100

Summary of Contents for Telematrix SP-100

  • Page 2 This page is intentionally left blank...
  • Page 3 Congratulations on the purchase of your TeleMatrix model SP-100 telephone. The SP-100 includes advanced features that are suitable in today’s business environment. TeleMatrix has designed the SP-100 to be simple to install and easy to use. The SP-100 is ideal for use behind Centrex or in a PBX environment.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3.

  • Page 5: Fcc Part 15 Compliance

    FCC Part 15 Compliance Warning Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6 DOC - NOTICE AND LOAD NUMBER STATEMENT NOTICE: The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction. ''This product meets the applicable Industry Canada technical specifications.”...

  • Page 7: Consumer Information

    [equipment ID] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. Should you experience trouble with this equipment, please contact (TeleMatrix, Inc.Customer Care Center 5025 Galley Road Colorado Springs, CO. 80915 . Toll Free:1-800-462-9446...
  • Page 8 Features .........………........Controls …….................. Parts List …………………………………………………………. Installation ..……................. Wall Mounting ..…......……........ Switch Settings ..….......….…........… Operation …………………………………………………………. Care and Maintenance ……………………………………………. Service ……………………………………………………………. Spare Parts ……………………………………………………….. Warranty ..........…....……..
  • Page 9 One Line Operation DTMF Dialing Electronic Hold with LED Indicator Audible Ring Tone Selection (4 options) HI/LOW/OFF Ringer Volume Control Switch Convenient Data Port Handset Volume Control 90VDC NEON or Low Voltage LED Selectable Message Waiting Disconnect Key to Activate New Call Last Number Redial Desk or Wall Mountable Fully Modular, Easy To Install...

  • Page 10: Top Panel

    TOP PANEL TURN...
  • Page 11 Disconnect Key ………………………...… Used to disconnect the line, place new call or exit the store programming. Redial Key ......…………….…... Redials the last dialed manually dialed. Flash Key ....……………..……. Provides a 100mS to 1000mS timed line break (programmable) microphones for privacy. Hold Key ……………………………….…...

  • Page 12: Right Side

    RIGHT SIDE LEFT SIDE REAR...
  • Page 13 Data Port ........…...………... Convenient port to connect a computer, modem, fax or answering device. Line Jack ……………………………………... Modular receptacle for connecting the line cord Handset Jack ........………….. Connection for handset coil cord. Message Waiting Selector Switch …………… Select optional 90VDC or low voltage LED mes sage waiting.

  • Page 14: Parts Checklist

    Parts Check List The following parts are included with the SpectrumPLUS SP100: 1. Base Unit 2. Handset 3. Two (2) 15’ Modular telephone line cords. 4. 10’ Modular coiled handset cord. 5. 6” Modular wall mount line cord. 6. Two (2) Index Sheets 1.
  • Page 15 Caution Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines.
  • Page 16 You can even person- alize this area with photographs of your family, friends or pets. Customized printing of faceplates is available by calling TeleMatrix Priority Care for information. There is a minimum order quantity required.. Use this perforated sheet to customize your...

  • Page 17: Connecting The Handset Cord

    Connecting the Handset Cord Handset Cord A 10 foot modular coil handset cord is provided. (Be sure that the wall/desk eleva- tion stand has not been attached). To i n - stall the cord, simply plug the short end of the handset cord into the modular jack on the handset.

  • Page 18: Desk Mounting

    Wall Mounting the SpectrumPLUS Telephone Retaining Clip The SpectrumPLUS was designed to be conveniently PULL OUTWARD UNSNAP wall mounted without requiring additional hardware. CLIP IS SPRING LOADED ROTATE 180 . SNAP INTO PLACE. Follow these easy steps: 1.The handset retaining clip must be in the correct position to secure the handset into the handset cradle.

  • Page 19: Message Waiting Light Indicator

    Message Waiting Light Indicator MW Light Indicator The SpectrumPLUS telephone has a Mes- sage Waiting (MW) Light Indicator (figure 1). The indicator will blink to indicate that a new message is in the user’s voice mailbox. The PBX system or telephone service provider has to activate the voice mail feature for the light to illuminate and work properly.

  • Page 20: Message Waiting Selector

    Message Waiting Selector The sp100 can support 90VDC neon or low voltage LED message waiting systems, NEON/LED switch to the desired position that is compatible with your PBX message system. Note: the phone is factory preset to the “NEON” setting. * Programming System Hold is an Administrator function.
  • Page 21 Using the Data Port The SpectrumPLUS is equipped with a convenient data port on the bottom of the base unit. This modular receptacle is used to plug in any standard telephone device such as a computer modem, answering machine, or fax machine.
  • Page 22 Using the Hold Feature The “HOLD” key is used to place a caller on hold. To use, simply press the “HOLD” key. The LED above the HOLD key will illuminate to indicate that the line is on hold. When the “HOLD” key is active, the handset can be lifted off-hook or returned to its on-hook position and the line will not be disconnected.

  • Page 23: Using The Redial Feature

    Using the Redial Feature The “REDIAL” key is used to automatically redial the last number that was dialed from the keypad. To use: Lift the handset. Press the “REDIAL” key. The last number dialed will be redial e d.

  • Page 24: Using The Disconnect Feature Key

    Using The Disconnect Feature Key The “DISC” (DISCONNECT) key is a 2 second electronic timed line break. The key can be used to automatically hang-up the call that you are currently on and regain a new dial tone to establish a new call. To use: Simply press the “DISC”...
  • Page 25 Handset Volume Control The SpectrumPLUS is equipped with an ADA/FCC compliant handset volume control located on the front of the phone.
  • Page 26 Keep the telephone dry. If it gets wet on the outside, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Do not touch the unit if submerged in water. Call for assistance. Use and store the telephone only in normal temperature environments.
  • Page 27 Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair is necessary: 1. Include a brief description of the problem that you are experiencing.
  • Page 28 Call for quote *Pricing in US$ Currency. Freight is Prepay and Additional. Pricing is subject to change without notice. To Place An Order 1. Contact TeleMatrix Customer Service department, Monday through Friday, 8:30a.m. - 4:30p.m. MST. Toll Free: 1-800-462-9446 Direct:...

  • Page 29: Statement Of Limited Warranty

    3. This warranty is good only in the United States Of America. 4. The cost and risk of loss or damage for sending the phone to TeleMatrix will be borne by you. TeleMatrix will pay to return the repaired phone to you.
