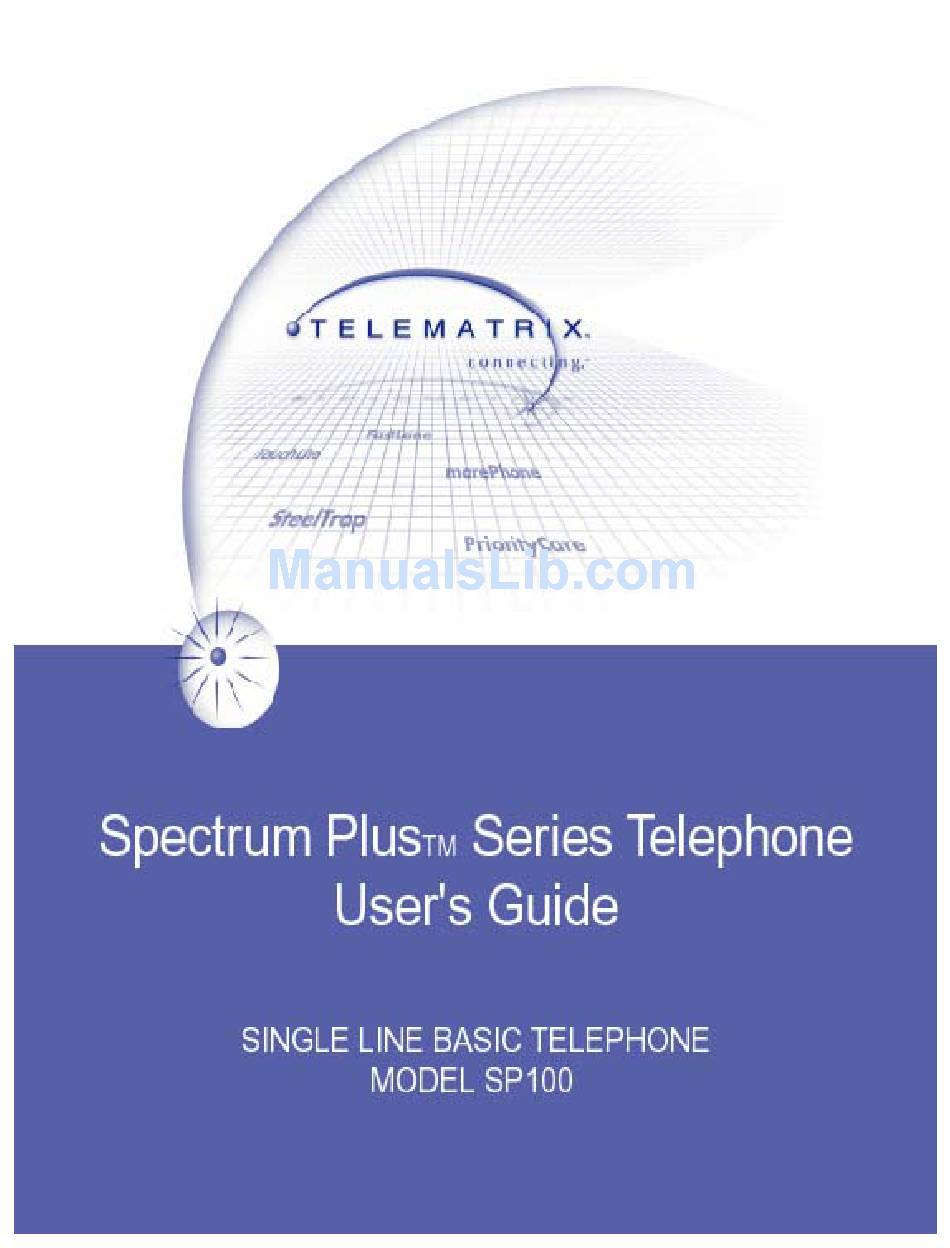

Telematrix Spectrum Plus SP100 User Manual

Single line basic telephone spectrum plus series
Hide thumbs Also See for Spectrum Plus SP100:

Advertisement

Quick Links

Download this manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Spectrum Plus SP100 and is the answer not in the manual?

Questions and answers

Related Manuals for Telematrix Spectrum Plus SP100

Summary of Contents for Telematrix Spectrum Plus SP100

  • Page 2 CAUTION! • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. • Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. •...
  • Page 3 Congratulations on the purchase of your TeleMatrix Spectrum PLUS model SP100 telephone. The Spectrum PLUS SP100 includes advanced features that are suitable in today’s business environment. TeleMatrix designed the Spectrum PLUS SP100 to be simple to install and easy to use.

  • Page 4: Table Of Contents

    Features ................. Controls ……..............Part List …………………………………………………………………………………... Installation ..............11 Wall Mounting ......……........ Switch Settings ....….…........Operation ………………………………………………………………………………... Care and Maintenance ……………………………………………………..……. Service ……………………………………………………………………………………. Warranty .………………………………………………………………………………..

  • Page 5: Features

    • One Line Operation • Visual Message Waiting Indication; 90VDC NEON or Low Voltage LED; Switch Selectable* • Electronic Hold with LED Indicator • HI/LOW/OFF Ringer Volume Control Switch • Disconnect Key to Activate New Call • Last Number Redial •...
  • Page 6 TOP PANEL TURN...
  • Page 7 Disconnect Key ……………………...…….. Used to disconnect the line or place a new call. Redial Key ......…………… Redials the last number dialed. Flash Key ....……………..…. Provides a timed line break. Numeric Dial Pad ………………...………. Used for dialing. Hold Key ………………………………..…….. Lighted key used for placing callers on hold. Volume Bar …………………..……………….
  • Page 8 LEFT SIDE RIGHT SIDE REAR...
  • Page 9 Data Port ........Convenient port to connect a computer, modem, fax or answering device. Line Jack ………………………………………... Modular receptacle for connecting the line cord. Handset Jack ......Connection for handset coil cord. Message Waiting Selector Switch … Selects low voltage message waiting or 90VDC. Ringer Volume Control Switch ……..

  • Page 10: Part List

    Parts Check List The following parts are included with the Spectrum PLUS SP100: 1. Base Unit 2. Handset 3. One (1) 15-foot Modular telephone line cords 4. 10-foot Modular coiled handset cord 5. 6-inch Modular wall mount line cord 6. Two (2) Index Sheets 1.
  • Page 11 Connecting the Handset Cord A 10-foot modular coil handset cord is provided. (Be sure that the wall/desk elevation stand has not been attached). Handset Cord To install the cord, simply plug the short end of the handset cord into the modular jack on the handset.

  • Page 12: Wall Mounting

    Wall Mounting the Spectrum PLUS Telephone Spectrum PLUS designed conveniently wall mounted without requiring RETAINER CLIP additional hardware. NOTE: CLIP IS UNS NA P RO TA T E 1 80 . SN AP I NT O P LA CE. Follow these easy steps: 1.LIFT CLIP OUT WITH FINGERS.
  • Page 13 Message Waiting Light Indicator Message Waiting Light Indicator Spectrum PLUS telephone Message Waiting (MW) Light Indicator (figure 1). The indicator will blink to indicate that a message is in the user’s voice mailbox. The Spectrum PLUS supports the following telephone or PBX supplied message waiting signals: 1.
  • Page 14 Message Waiting Selector The SP100 supports either 90VDC neon or low voltage LED message waiting systems. Position the NEON/LED switch to the desired position so that the tele- phone is compatible with your PBX message system. Note: the phone is factory preset to the “NEON”...
  • Page 15 Hold Key Indicator When the “HOLD” key is activated, the light above HOLD will steadily RED. Using the Hold Feature The “HOLD” key is used to place a caller on hold. To use, simply press the “HOLD” key. When the “HOLD” key is active, the handset lifted off-hook...
  • Page 16 Using the Redial Feature The “REDIAL” key is used to automatically redial the last number that was dialed from the keypad. To use: • Lift the handset. • Press the “REDIAL” key. • The last number dialed will be redialed. Flash Function “FLASH”...
  • Page 17 Using The Disconnect Feature Key The “DISC” (DISCONNECT) key is a 2-second electronic timed line break. The key can be used to automatically hang-up the call that you are currently on and regain a new dial tone to establish a new call. To use: •...
  • Page 18 Keep the telephone dry. If it gets wet on the outside, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Do not touch the unit if submerged in water. Call for assistance. Use and store the telephone only in normal temperature environments.

  • Page 19: Installation

    Fax: 719-638-8815 www.telematrixusa.com Many times a problem is either installation or user related. Please contact TeleMatrix PRIOR to sending a telephone to our service center for repair. In the unlikely event that a factory repair is necessary: Include brief description...

  • Page 20: Operation

    STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. (TMX) warrants to its [original end customer] [purchaser] that Spectrum, and Marquis branded products manufactured by TMX are free from defects in materials and workmanship for five (5) years, SpectrumPLUS for two (2) years after the date of purchase, and Regency branded product...
