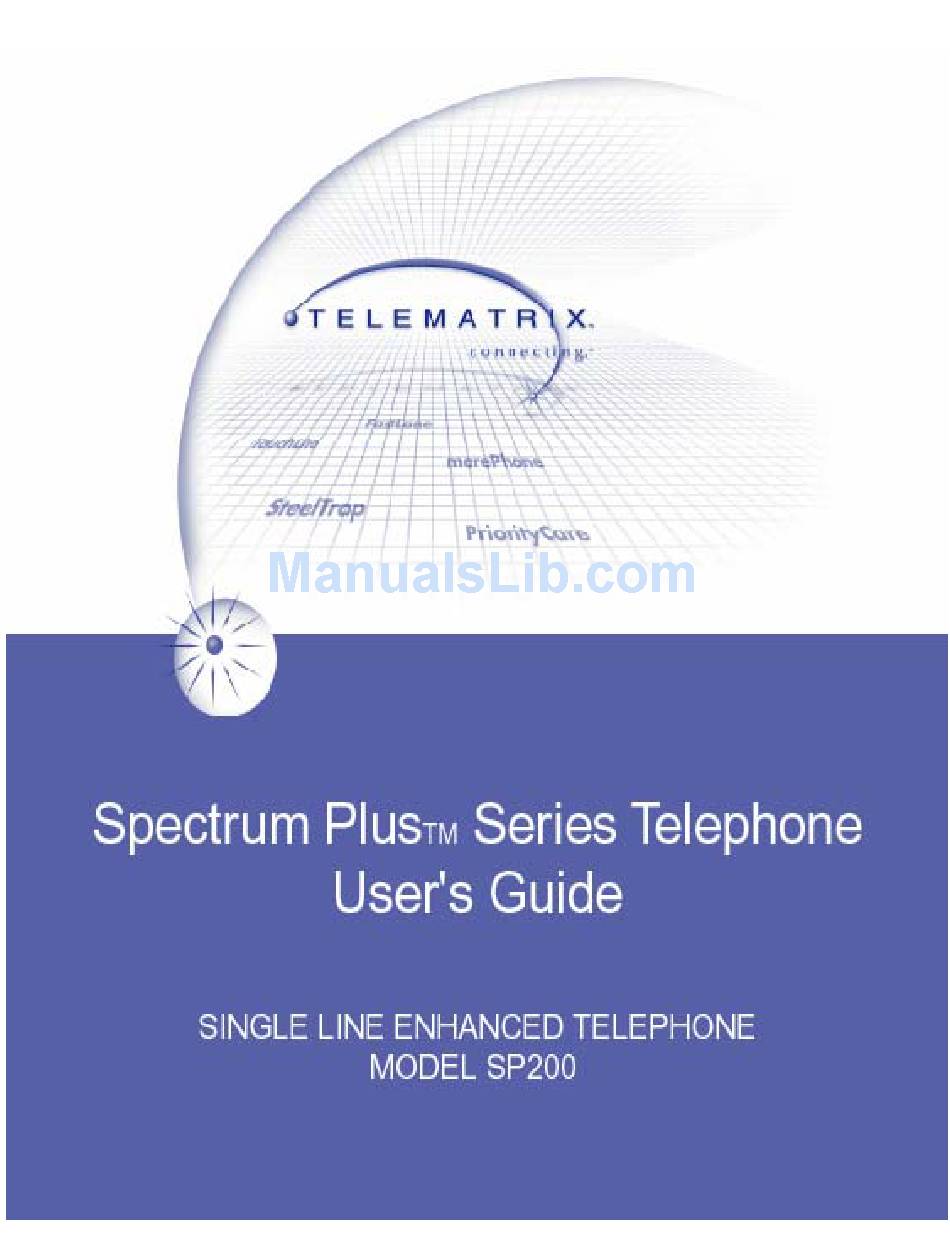

Telematrix Spectrum Plus SP200 User Manual

Single line enhanced telephone spectrum plus series
Hide thumbs Also See for Spectrum Plus SP200:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spectrum Plus SP200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telematrix Spectrum Plus SP200

Summary of Contents for Telematrix Spectrum Plus SP200

  • Page 2 CAUTION! • Never install telephone wiring during a lightning storm. • Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. • Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface. •...
  • Page 3 As specified by FCC regulation, we are required to inform you of specific governmental and compliance regulatory requirements, safety notices, safety instructions and other informative information. TeleMatrix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety Manual within each outer box or product box when shipped.

  • Page 4: Table Of Contents

    Features ................. Controls ……..............Part List …………………………………………………………………………………... Installation ..............11 Wall Mounting ......……........ Switch Settings ....….…........Programming ..…....…........Headset Installation and Operation………....... Operation ………………………………………………………………………………... Care and Maintenance ……………………………………………………..……. Service ……………………………………………………………………………………. Warranty .………………………………………………………………………………..
  • Page 5 • One Line Operation • SteelTrap Memory Technology (No Batteries Required) • FreeSpeech Talk Feature: Allows Free Toggle between Handset, Headset and Speakerphone • Visual Message Waiting Indication* – Auto Detection for SDT, FSK or NEON; LED uses switch • TouchLite One Touch Message Retrieval Key •...
  • Page 6 TOP PANEL (12) (11) (10)

  • Page 7: Features

    Disconnect Key ……………………...…….. Used to disconnect the line or place a new call. Store Key……………………………….….….. Used to program user features. Pause Key .......… Used to place a timing delay when dialing. Redial Key ......…………… Redials the last number dialed. Flash Key ....……………..…. Provides a timed line break.
  • Page 8 LEFT SIDE RIGHT SIDE REAR...
  • Page 9 Data Port ........Convenient port to connect a computer, modem, fax or answering device. Line Jack ………………………………………... Modular receptacle for connecting the line cord. Headset Jack ......Convenient RJ port or 2.5mm coaxial port used to connect an optional headset. Handset Jack ......

  • Page 10: Parts Check List

    Parts Check List The following parts are included with the Spectrum PLUS SP400: 1. Ba se Unit 2. H andset Two (2) 15-foot Modular telephone line cords 10-foot Modular coiled handset cord 6-inch Modular wall mount line cord 6. Po wer Adapter Two (2) Index Sheets 1.

  • Page 11: Installation

    120V AC Outlet Recovery Power Adapter (provided) The 120 VOLT AC OUTLET RECOVERY POWER ADAPTER is an featured TeleMatrix product. It provides both the telephone lines and the power source in one cable (6P6C line cord) and is designed to recover the use of the power outlet.
  • Page 12 Installing The Wall Power Adapter (Optional Component) This component is best used when wall POWE R mounting the te lephone. T o i nstall, simply p lug t he po wer adapte r i nto a standard 120V AC p ower outlet.

  • Page 13: Wall Mounting

    Wall Mounting the Spectrum PLUS Telephone The S pectrum P LUS was de signed t o b e conveniently w all moun ted w ithout r equiring RETAINER CLIP additional hardware. NOTE: CLIP IS UNS NA P RO TA T E 1 80 . SN AP I NT O P LA CE.
  • Page 14 Message Waiting Light Indicator Message Waiting Light Indicator The S pectrum PLU S telephone Message W aiting (MW) L ight I ndicator (f igure 1). T he i ndicator wi ll blink to i ndicate that a me ssage is in the user’s voice mailbox. The S pectrum PLU S supports the following telephone or...

  • Page 15: Operation

    Low Voltage LED Switch A low v oltage L ED s witch is located on LOW VOLT MW the bo ttom of the phone . The s witch options ar e ON o r OFF. Th e fa ctory default is OFF. System Hold Feature Option Switch A feat ure swi tch fo r d ifferent h old LOW VOLT MW...
  • Page 16 Programming Flash Timing into Memory Flash Timing can be programmed into the Spectrum PLUS speed dial memory. This function allows for a timed line break in the sequence of the dialing patterns when using the speed dial keys. This function may be required for accessing line features provided by your telephone system or local telephone company.

  • Page 17: Programming Flash Timing

    Programming Flash Timing Flash timing can be programmed for different timing options listed below. 1. Position the handset in the Off-Hook position (lift the handset). 2. Press the “STORE” key once. 3. Press “*” key for 3-seconds until an alert sound is heard. 4.

  • Page 18: Programming Pause Timing

    Programming Pause Timing A Pause ti me between 1.0-seconds to 5 .0-seconds can be p rogrammed i nto memory. This f unction a llows f or a de layed ti ming f or tho se systems requiring a di fferent ti me delay and all ows the us er to de lay the di aling pattern of a number.
  • Page 19 Programming Pause into Voice Mail To store a Pause time into Voice Mail memory, simply press the Pause key in the number- ing seq uence w hen p rogramming t he V oice M ail S peed D ial Key. S ee programming V oice Mail on the next page.

  • Page 20: Programming Procedure

    Programming Voice Mail The Spectrum PLUS Telephone has a one-touch speed dial Voice Mail key that is convenient for dialing into your Voice Mail service. • Speed dial programming must be done with the telephone plugged into the telephone line and power adapter. •...

  • Page 21: Installing A Headset

    T he p ort i s l ocated on the b ot- tom of the bas e uni t. T he TeleMatrix FreeSpeech Talk Feature is a uni que TeleMatrix feature that allows the user the freedom to “toggle”...

  • Page 22: Using A Headset

    Using A Headset The “HEADSET ON/OFF” key controls the activation of the Headset. When using the headset feature, the handset remains on-hook at all times. Placing/Answering a Call using the Headset On/Off Feature • To answer an incoming call, press the “HEADSET ON/OFF” key to activate the head- set.
  • Page 23 Ringing Cadence Selection The Sp ectrum PLUS has f our r ing cadences to select from. To p rogram t he ring ca dence o f choice, follow these instructions. 1. Place the hands et i n a “ on-hook” state.
  • Page 24 Hold Key Indicators When t he “HOLD” key i s ac tivated, the light above the HOLD KEY will be steadily RED. Headset Key Indicators When t he “HEADSET ON/OFF” key is activated, the Headset indicator will be steadily RED.
  • Page 25 Using the Hold Feature The “HOLD” ke y is u sed t o p lace a caller on hold. To use, simply press the “HOLD” k ey. T he L ED above the line-in-use wi ll illum inate t o i ndicate Contrast that this line is on hold.
  • Page 26 Using the Mute Feature A “MUTE” key is p rovided t o a llow privacy dur ing a ba ckground conver- sation. When the “MUTE” key is ac- tivated, the mi crophones i n the hand- set, speakerphone and/or h eadset are disabled.
  • Page 27 Using the Redial Feature “REDIAL” key automatically r edial th e l ast numbe r that was dialed from the keypad. To use: • Lift the handset (or activate the speaker). • Press the “REDIAL” key. • The last number dialed will be redialed.
  • Page 28 Using The Disconnect Feature Key The “DISC” ( DISCONNECT) ke y is a 2-second e lectronic ti med li ne br eak. The ke y c an be use d to a utomatically hang-up the call that you are currently on and r egain a ne w di al to ne to establish a new call.
  • Page 29 Handset Volume Control The S pectrum PLU S i s e quipped with an ADA/FCC c ompliant hands et volume control located on the front of the phone. Contrast When the right end of the “VOLUME” Volume key i s pr essed, the v olume o f the handset receiver is increased.
  • Page 30 Keep the telephone dry. If it gets wet on the outside, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. Do not touch the unit if submerged in water. Call for assistance. Use and store the telephone only in normal temperature environments.
  • Page 31 Priority Care Center 5025 Galley Road Colorado Springs, Colorado 80915 TeleMatrix will pay r eturn po stage on the re paired te lephone. All ow 2-3 weeks for delivery. When immediate replacement is required, see our FastLane replacement policy on our internet site.

  • Page 32: Warranty

    STATEMENT OF LIMITED WARRANTY TeleMatrix, Inc. (TMX) warrants to its [original end customer] [purchaser] that Spectrum and Marquis branded produ cts man ufactured by TM X are fre e fro m d efects i n m aterials and workmanship for...
