Telematrix LP550 User Manual

Line powered speakerphone single line caller id
Hide thumbs Also See for LP550:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
5025 Galley Road
Colorado Springs
Colorado 80915 USA
1.800.462.9446 domestic
+1.719.638.8821 international
www.telematrixusa.com
LP550
User's Guide
Line Powered Speakerphone
Single Line Caller ID
1.800.462.9446 domestic
+1.719.638.8821 international
www.telematrixusa.com
Base Underside

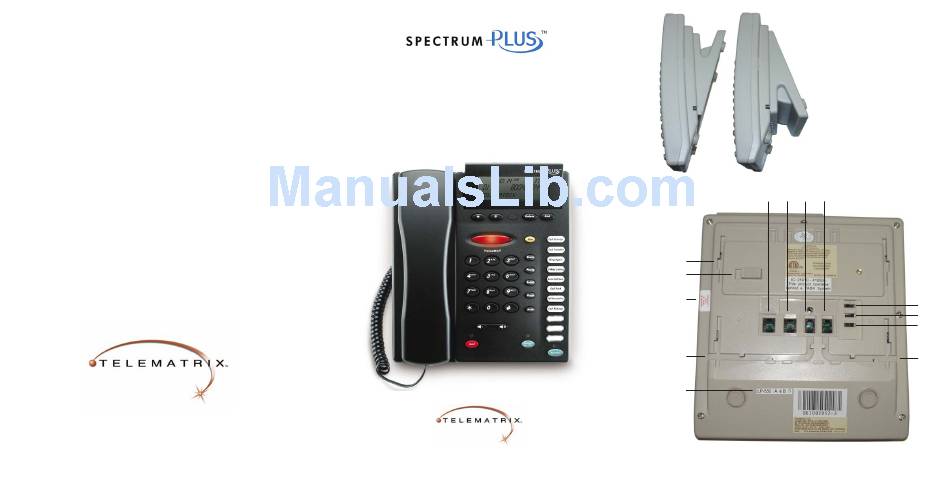

Features & Controls
26. Data port receptacle
27. Line cord receptacle
28. Headset port receptacles
29. Handset coil cord receptacle
30. Ringer Volume - HI LOW OFF
31. Message Waiting - NEON LED
32. Hold setting - LINE SYSTEM
33. Handset cord channel
34. Model version number
35. Line cord channel
36. Warranty seal
39
40
37. Mount bracket lock
38. Mount bracket channel
39. Desk mounted bracket
40. Wall mounted bracket
26
27
28
29
38
37
36
35
34
30
31
32
33
