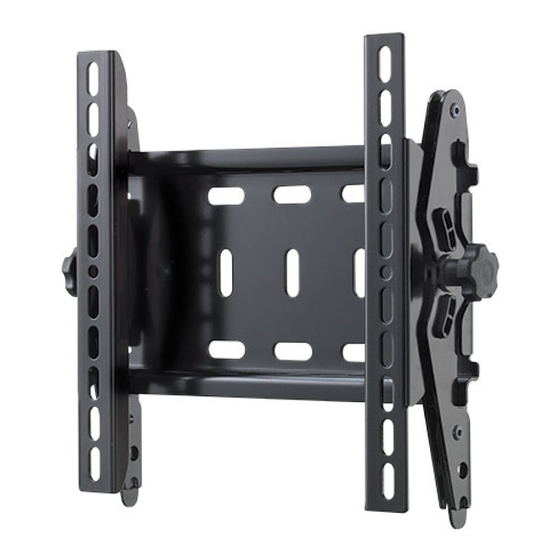

Thank you for choosing a Sanus Systems VisionMount™ wall mount. The VM200 is designed to mount up to 40" LCD TVs weighing less
than 80 lbs [36.3 Kg] to a vertical wall. It will allow you to effortlessly tilt the TV ±20°
CAUTION: The size and weight of your television must not exceed 40" [1016 mm] diagonally and 80 Lbs [36.3 Kg]. The wall must
be capable of suporting five times the weight of the televison plus the wall mount. Never use defective parts. Improper installation
may cause property damage or personal injury. Do not use this product for any purpose that is not explicitly specified by Sanus
Systems.
If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified contractor or contact
Sanus Systems at 800.359.5520 or www.sanus.com. Our customer service representatives can quickly assist you with installation questions
and missing or damaged parts. Replacement parts for products purchased through authorized dealers will be shipped directly to you. Check
carefully to make sure that there are no missing or defective parts. Sanus Systems can not be liable for damage or injury caused by incorrect
mounting, incorrect assembly, or incorrect use. Please call Sanus Systems before returning products to the point of purchase
NOTE: The supplied wall mounting hardware is not for metal stud or old cinder block walls. If you are uncertain about the nature
of your wall, consult an installation contractor. Sanus makes every effort to assure all necessary television mounting hardware is
included. If the hardware you need is not included please consult your local hardware store or call Sanus Systems.
Required Tools: Drill, 3/16" drill bit, (1/2" masonry bit for brick, concrete, or concrete block installations), wrench set, phillips screw
driver

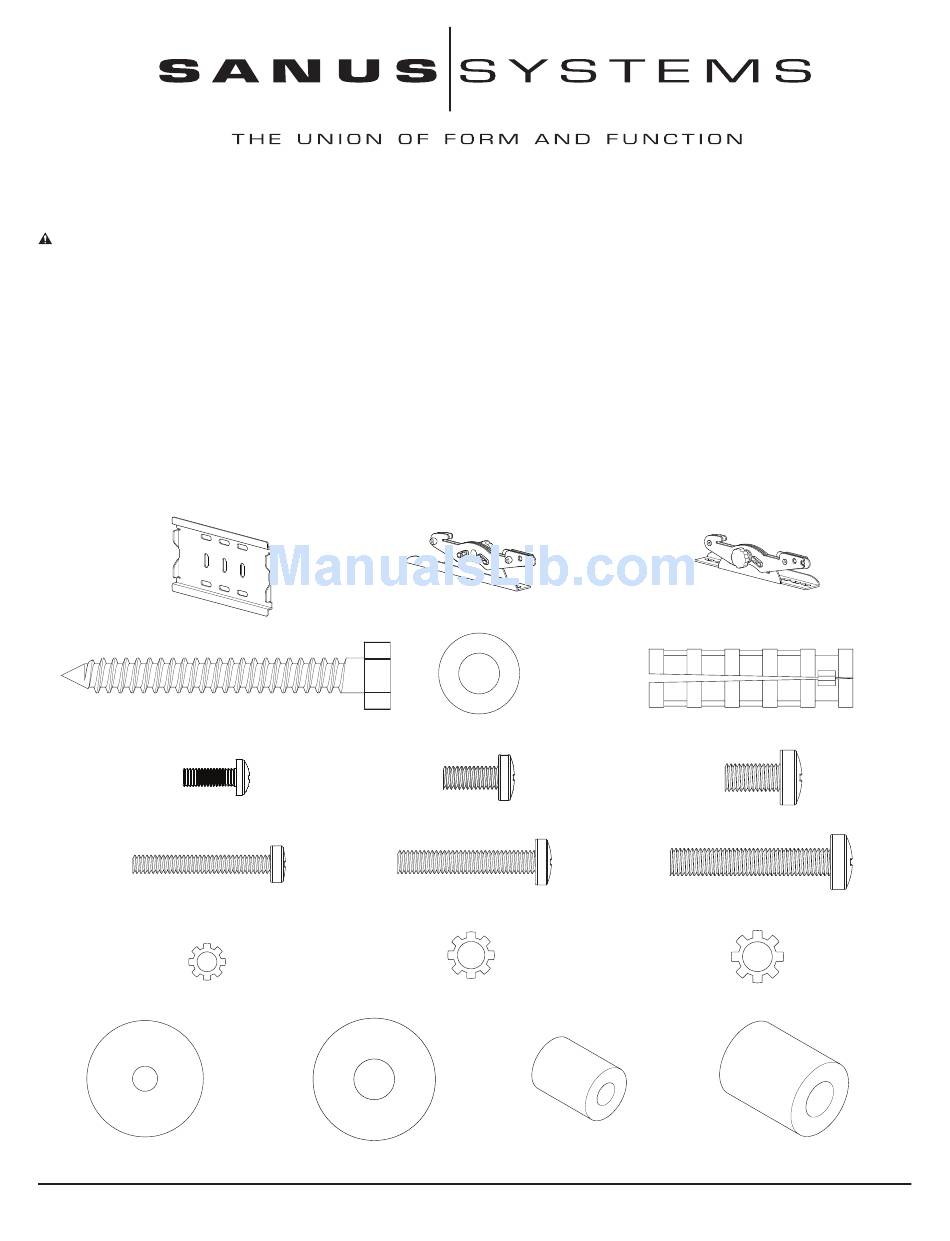

Supplied Parts and Hardware: (All threaded fasteners are shown full size.)
Wall Plate - A
Qty. 1
Lag Bolt - D
Qty. 3
M4 x 12 mm Bolt - G
Qty. 4
M4 x 30 mm Bolt - J
Qty. 4
M4 Lock Washer - M
Qty. 4
M4/M5 Washer - P
Qty. 4
Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 06.08.06 (6901-100024)
Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com
Assembly Instructions for Model: VM200
Left Monitor Bracket - B
Lag Bolt Washer - E
M5 x 12 mm Bolt - H
M5 x 30 mm Bolt - K
M5 Lock Washer - N
M6 Washer - Q
Qty. 4
Qty. 1
Qty. 3
Qty. 4
Qty. 4
Qty. 4
M4/M5 Spacer - R
Qty. 4
Right Monitor Bracket - C
Qty. 1
Concrete Anchor - F
Qty. 3
M6 x 12 mm Bolt - I
Qty. 4
M6 x 35 mm Bolt - L
Qty. 4
M6 Lock Washer - O
Qty. 4
M6 Spacer - S
Qty. 4
Advertisement
Table of Contents
Related Manuals for Sanus Systems VisionMount VM200
Summary of Contents for Sanus Systems VisionMount VM200
- Page 1 Replacement parts for products purchased through authorized dealers will be shipped directly to you. Check carefully to make sure that there are no missing or defective parts. Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use.
- Page 2 Step 1: Mount Monitor Brackets to a television with a flat back NOTE: For televisions with a curved back, or an obstruction near the threaded insert see Step 2. Determine the diameter of the Bolt (G,H,I) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately.
- Page 3 Step 2: Mount Monitor Brackets to a television with a curved back or an obstruction near the threaded insert Determine the diameter of the Bolt (J,K,L) your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance stop immediately.
- Page 4 Step 3: Mounting the Wall Plate - wood stud, brick, solid concrete and concrete block mounting options are provided Wood Stud Installation: CAUTION: Do not over tighten the Lag Bolts. Tighten Lag Bolts (D) only until the Lag Bolt Washer (E) is pulled firmly against the Wall Plate (A).
