2. Installation

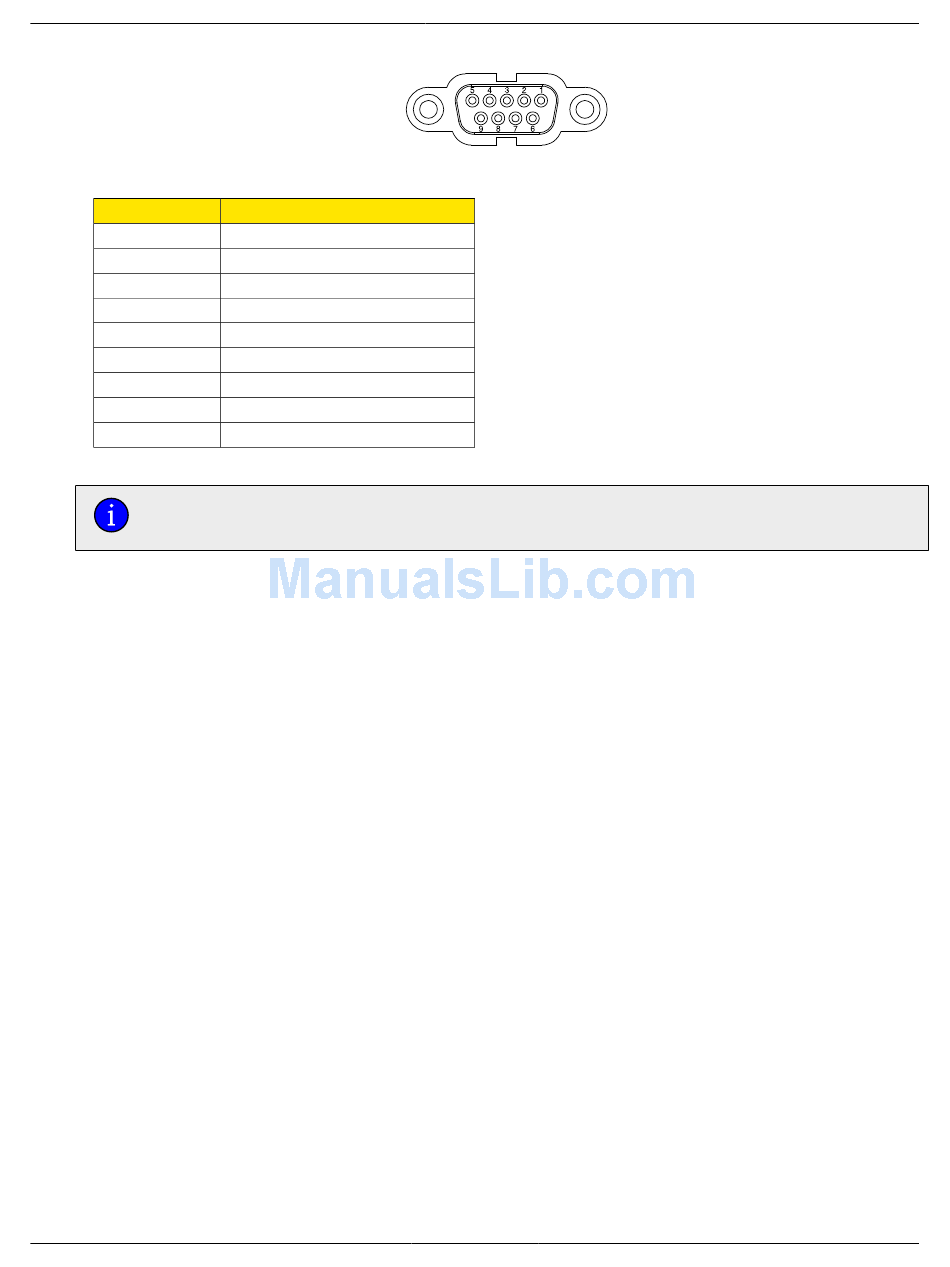

Figure 2.6. RS232 Female Connector
Pin
1
2
3
4
5
6
7
8
9
Table 2.1. RS232 Female DCE Pinout
This port is not intended to be a permanent connection and the cable shall be less
than 2m (6.5 ft) in length.
RuggedCom® RuggedSwitch™
Signal
No Connection
Transmit Data
Receive Data
No Connection
Ground
No Connection
No Connection
No Connection
No Connection
14
RS900G Installation Guide Rev 107
