About the MediaChassis Series

The MediaChassis Series includes 1-slot and 2-slot modular chassis for use
with iMcV Series modules. When installed in a MediaChassis, the module is
unmanaged, unless it has on-board SNMP logic (i.e. iMcV-FiberLinX-II).
Each MediaChassis features an internal 100-240 VAC ±10% power supply.

Installing the MediaChassis

Use the MediaChassis as a table-top chassis, or mount it into an equipment rack or to
a wall surface with the appropriate brackets (not included). Install the MediaChassis
by placing it on a flat surface. Make sure to leave adequate space on top of the unit
to accommodate cooling.

Configuring and Installing Modules

IMC Networks recommends turning the chassis' power OFF before proceeding. To
install a module, slide the module into the chassis until the module is firmly seated in
the backplane. Secure the module to the chassis by tightening the captive screw.
Attach the network cables between the module and other devices that will be
interconnected. Plug the chassis into a power source.

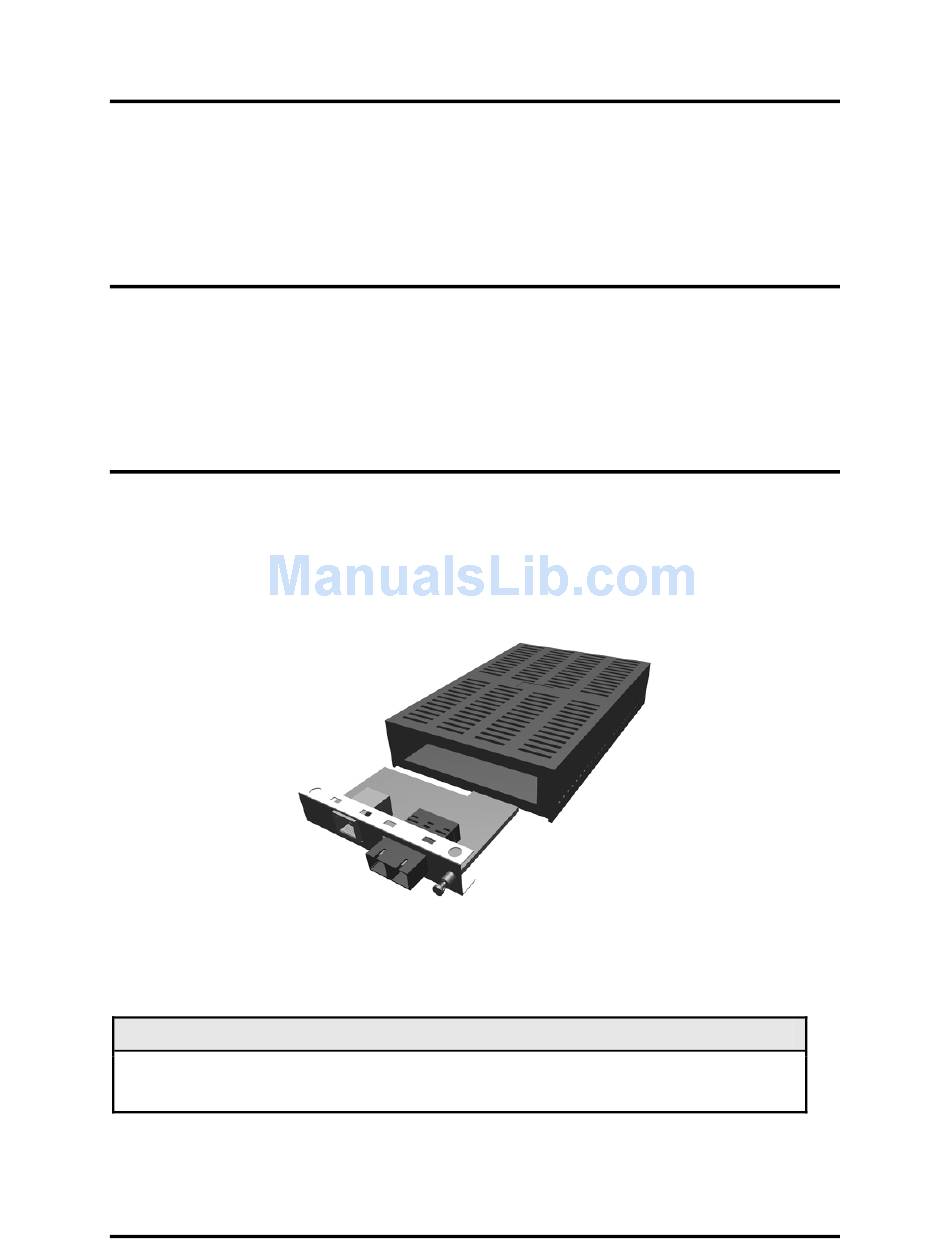

Installing an iMcV module into a MediaChassis/1
NOTE
Refer to the installation guide shipped with iMcV series modules for more configuration
information.
