Summary of Contents for IMC Networks iMcV-Giga-MediaLinX

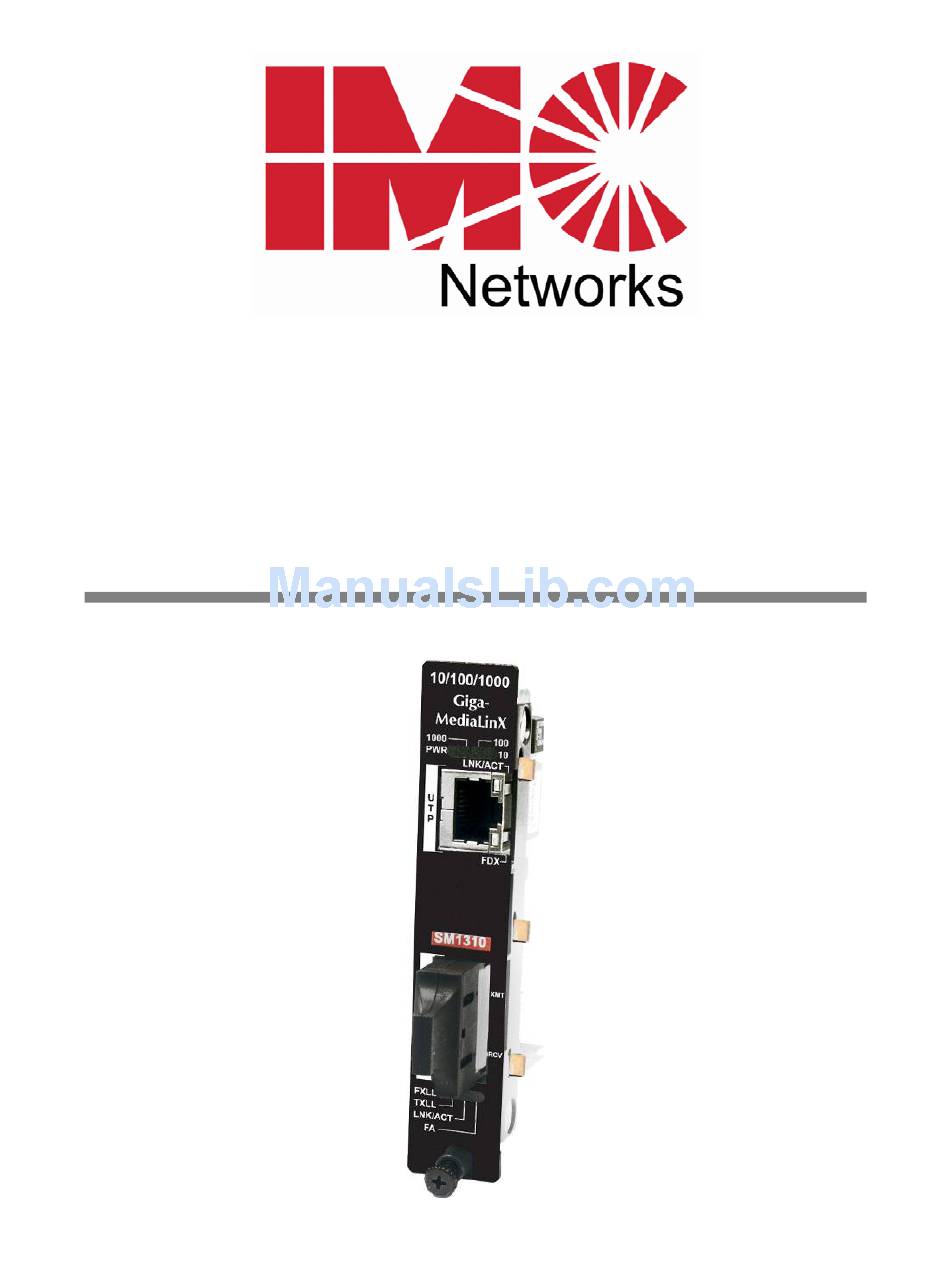

- Page 1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the iMcV-Giga-MediaLinX................1 LED Operation....................1 Installing iMcV-Giga-MediaLinX Modules ............2 Configuring the iMcV-Giga-MediaLinX ...............3 Auto Negotiation (TX and FX) ................5 Troubleshooting ....................9 IMC Networks Technical Support..............10 Specifications ....................10 Fiber Optic Cleaning Guidelines...............11 Electrostatic Discharge Precautions..............11... -
Page 4: About The Imcv-Giga-Medialinx
About the iMcV-Giga-MediaLinX The iMcV-Giga-MediaLinX is an SNMP-manageable, IEEE 802.3 10/100/1000 switching media converter that converts both speed and media. Each iMcV-Giga-MediaLinX module provides a single conversion between one of the following: • 10Base-T twisted pair and 1000Base-SX/LX multi-mode or single-mode fiber •... -
Page 5: Installing Imcv-Giga-Medialinx Modules
NOTE Blinking does not display within iView². The twisted pair port on the iMcV-Giga-MediaLinX includes AutoCross, a feature that automatically selects between a crossover workstation or pass-through connection depending on the connected device. Installing iMcV-Giga-MediaLinX Modules The iMcV-Giga-MediaLinX installs in any IMC Networks chassis, each requiring one slot. -
Page 6: Configuring The Imcv-Giga-Medialinx
Configuring the iMcV-Giga-MediaLinX The iMcV-Giga-MediaLinX may be configured with various features such as LinkLoss, FiberAlert, LinkFault Pass Through, Auto Negotiation, duplex mode and speed. The following sections include instructions for configuring both managed (via an SNMP- compatible management application such as iView²) and unmanaged modules. -
Page 7: Unmanaged Modules
Unmanaged Modules Configure the iMcV-Giga-MediaLinX for desired features before installing it in an unmanaged chassis. DIP Switch on S1 Feature Default Setting TX Auto Negotiation TX Port-HDX (ON) or FDX (OFF) TX Port-100 (ON) or 10 (OFF) TX Port-1000 TX LinkLoss (TXLL) -
Page 8: Auto Negotiation (Tx And Fx)
10 Mbps HDX Forcing the Duplex Mode (TX Port) The twisted pair port on the iMcV-Giga-MediaLinX can be set to either Half- or Full- Duplex operation in 10/100 Mbps (1000 Mbps is always FDX). Before manually setting the duplex mode, disable Auto Negotiation by setting DIP Switch 1 to OFF. - Page 9 ON position. (When ON, Switch 4 overrides Switch 3). FX Auto Negotiation (FX Port) The iMcV-Giga-MediaLinX includes the FX Negotiation feature, which allows Auto Negotiation or a Force Mode on the Gigabit fiber link. Enabled by default, it must be enabled or disabled on both ends of the connection to establish a link.
-
Page 10: Link Integrity
The appropriate “LNK” (link) LED is lit to indicate this. The IMC Networks media converter also sends out link pulses from its copper and fiber transmitters, but normally has no way of knowing whether the cable to the other device is intact and the link pulses are reaching the other end. - Page 11 If a strand is unavailable, the IMC Networks device at the receiver end notes the loss of link. The device will then stop transmitting data and the link signal until signal or link pulse is received. The result is that the link LED on BOTH sides of the fiber connection will go out indicating a fault somewhere in the fiber loop.
-
Page 12: Troubleshooting
Link Fault Pass Through (LFPT) is a troubleshooting feature that combines TX and FX LinkLoss from both the local and remote iMcV-Giga-MediaLinX modules. LFPT is enabled by turning on both FX and TX LinkLoss on both modules. This feature allows either end of the conversion to detect a link fault occurring at the other end of the media conversion chain. -
Page 13: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com Specifications Operating Temperature +32°F to +122°F (0°C to +50°C) Storage Temperature -13°F to +158°F (-25°C to +70°C) -
Page 14: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 15: Certifications
Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC). For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 16 © 2010 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-Giga-MediaLinX is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
