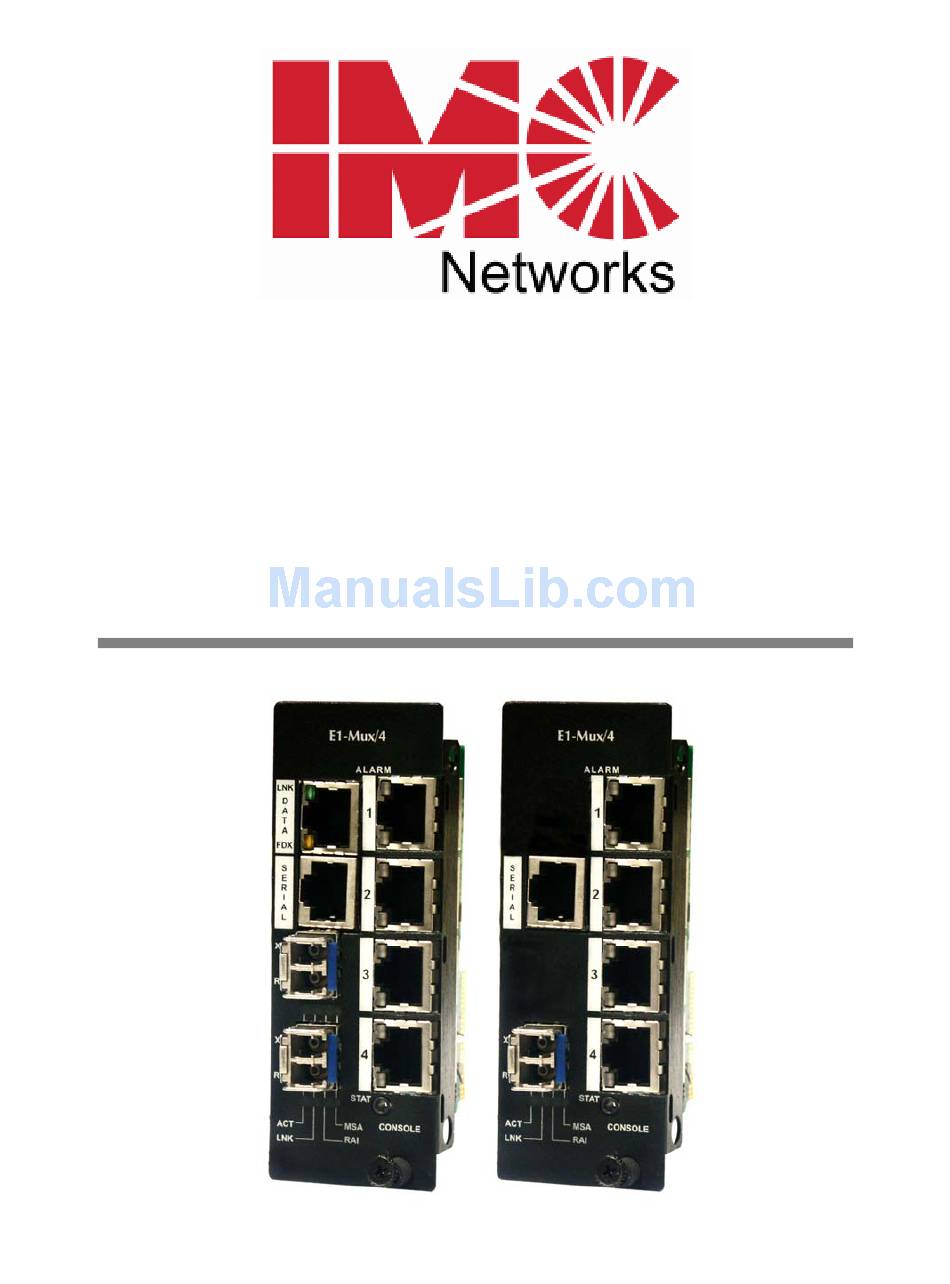

- Page 1 Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ------------------------------------------------ ii Warranty---------------------------------------------------------------------------------------------- ii About the iMcV-E1-Mux/4 ------------------------------------------------------------------------ 1 Managed Modules ---------------------------------------------------------------------------2 Port Interfaces---------------------------------------------------------------------------------3 LED Operation --------------------------------------------------------------------------------------- 5 10/100BaseT Connector --------------------------------------------------------------------5 E1 RJ-48 Connectors-------------------------------------------------------------------------6 SFP Ports----------------------------------------------------------------------------------------6 Connector Pinout and DIP Switch Assignments----------------------------------------------- 7... - Page 4 Fiber Optic Port Verification----------------------------------------------------------------- 22 E1 Port Verification ---------------------------------------------------------------------------- 23 Normal Operation ----------------------------------------------------------------------------- 24 Fiber Optic Cleaning Guidelines------------------------------------------------------------ 24 Electrostatic Discharge Precautions--------------------------------------------------------- 25 Specifications -------------------------------------------------------------------------------------- 27 Standards/Compliance --------------------------------------------------------------------------- 27 Definition of Terms/Acronyms------------------------------------------------------------------ 28 IMC Networks Technical Support-------------------------------------------------------------- 30 Safety Certifications------------------------------------------------------------------------------- 31...
-
Page 5: About The Imcv-E1-Mux/4
The iMcV-E1-Mux/4 provides fault indications on the E1 and fiber links resulting from real-time active faults. The equipment detects both E1 and fiber LOS events as well as degraded E1 or fiber lines. -
Page 6: Managed Modules
IE-MediaChassis series Product Application The iMcV-E1-Mux/4 delivers 4 E1 lines to a customer's site over a protected, dedicated fiber line. In addition, one serial RS-232 line and one 10/100BaseT Ethernet line can be carried at the same time. All circuits run at full line rates with no interaction. -
Page 7: Port Interfaces
Ports Console The iMcV-E1-Mux/4 includes a console serial port. To establish a link between a module's console port and a local PC, connect the Mini Jack to DB9 adapter that is included with the IMC module. This RS-232 serial connection provides access to the iMcV-E1-Mux/4 module CLI configuration screens. - Page 8 IMC Networks management software designed specifically for the IMC Networks “iMcV” family of modules. It features a GUI and gives network managers the ability to monitor and control the manageable IMC Networks products. iView² is available in several versions and can also function as a snap-in module for HP OpenView Network Node Manager and other third party SNMP Management software.
-
Page 9: Led Operation
LED Operation 10/100BaseT Connector RS-232 Connector E1 RJ-48 Connectors Ports The iMcV-E1-Mux/4 features diagnostic LEDs as explained below. 10/100BaseT Connector LNK: • OFF when port is not linked/connected • Glows green when link is established • Blinks green during data activity FDX: •... -
Page 10: E1 Rj-48 Connectors
Off when no remote defects are detected • Glows red+green when remote LOS or BER detected MSA: • Off when SFP is not an IMC Networks SFP • Glows green when no SFP alarms are detected • Glows red+green when SFP alarms or defects are detected at remote end •... -
Page 11: Connector Pinout And Dip Switch Assignments
Connector Pinout and DIP Switch Assignments DIP Switch Assignments A single 10-position DIP Switch is located on the unit to set the configuration. The switch positions are defined as follows: Switch # Function Settings Factory Default Host/Remote OFF = Host, ON = Remote Reserved Reserved... -
Page 12: 10/100Baset Ethernet Mating Connector Pinout
10/100BaseT Ethernet Mating Connector Pinout The following table lists the pin configuration for the standard RJ-45 Ethernet connector. Signal Transmit + Transmit - Receive + None None Receive - None Pin 1 None NOTE MDI/MDIX AutoCross function will automatically transpose the Transmit and Receive lines if required. -
Page 13: Rs-232 Port Mating Connector Pinout
RS-232 Port Mating Connector Pinout The following table lists the pin configuration for the RS-232 port mating connector. Signal None None None Signal Ground Receive Data (in to unit) Transmit Data (out of unit) None Pin 1 None This port provides an end-to-end RS-232 line that can support up to 250K Baud and is transparent to all RS-232 protocols. -
Page 14: Installation Instructions
Configuration as a Host or Remote is controlled via a DIP switch setting (S1-1). Small Form-Factor Pluggable Ports (SFP) The fiber link on the iMcV-E1-Mux/4 module is supported through one or two SFPs (depending on the model) running at 155Mbps. Many SFPs, including those from IMC Networks, feature enhanced diagnostics capabilities DDMI (Data and Diagnostic Management Information). -
Page 15: Configuration Options
The Ethernet transport can accommodate packets up to 1916 bytes. Auto Negotiation The iMcV-E1-Mux/4 ships from the factory with Auto Negotiation enabled on the Ethernet port. In this mode, the port negotiates for speed, duplex and flow control. Forcing the Speed, Duplex Mode, and Flow Control The Ethernet port on the iMcV-E1-Mux/4 can be selectively advertised or manually forced for 10 Mbps or 100 Mbps operation at Half- or Full-Duplex (i.e., 10 Mbps... -
Page 16: Fx Linkloss (Fxll)
FX LinkLoss (FXLL) FX LinkLoss is a link integrity monitoring feature that forwards fiber link faults to the RJ-45 DATA port to indicate that a fiber link fault has occurred. FX LinkLoss can be enabled in iView². Link Fault Pass-Through (LFPT) Link Fault Pass-Through (LFPT) is a troubleshooting feature that passes a link fault from the Ethernet port on one module through to the Ethernet port on the other module. -
Page 17: Loopback
Loopback Each E1 port can be tested in loopback mode by enabling either a Host loopback or Remote loopback test path. This capability allows the end-user to help troubleshoot and isolate system problems such as improper/broken line terminations, cables or malfunctioning equipment. -
Page 18: Console Screens
Console Screens Configuration Using the Console Port The following section describes configuration using the console screens. The Remote module is only configured through the Host. Login Screen After running through an initial self test, the log-in screen is displayed (the diagnostic information displayed below is for illustration purposes only and may differ from the actual screen display): The username is case sensitive with a maximum length of 16 characters. -
Page 19: Main Menu
Main Menu From the main menu, the end-user can view essential unit configuration data— including active alarms in order of importance—and a clock indicating when the displayed information was last refreshed. -
Page 20: Menu Options
Menu Options 1 = Refer to the Unit Configuration Screen 2 = Refer to the Port Alarm Status screen 3 = Refer to the SFP Line Status screen; SFP DDMI alarms are also displayed 4 = Refer to the Ethernet Port Configuration screen 5 = Refer to the Ethernet Port Status screen 6 = Refer to the E1 Port Configuration screen 7 = Refer to the E1 Port Status screen... -
Page 21: Port Alarm Status Screen
Port Alarm Status Screen The Port Alarm Status screen displays the status of the Host and Remote alarms on each of the unit's ports. This screen can be refreshed as needed to display current data. SFP Line Status Screen The SFP Line Status screen displays the status of the Host and Remote SFP links. The detailed SFP information may be viewed by entering "1"... -
Page 22: Ethernet Port Configuration Screen
Ethernet Port Configuration Screen The screen displays the current values for items 1 through 9 for both the Host and Remote site. Enter the number of the menu item to change its configuration, and then enter the new value(s) when prompted. Ethernet Port Status Screen This screen displays the current Ethernet port status for both the Host and Remote site. -
Page 23: E1 Port Configuration Screen
E1 Port Configuration Screen Use this screen to access the loopback and name details for each of the four E1 ports. Enter the number of the menu item to edit, and enter the new value(s) when prompted. E1 Port Status Screen Use this screen to display the current status for each of the four E1 ports for the Host and Remote units. - Page 24 Enter the number of the menu item to edit, and enter the new value(s) when prompted.
-
Page 25: Troubleshooting
All iMcV-E1-Mux/4 units are shipped configured as Host units via DIP Switch #1 = OFF. The Remote unit should be set to DIP Switch #1 = ON. Be sure to confirm that the iMcV-E1-Mux/4 card is set correctly when used. •... -
Page 26: Fiber Optic Port Verification
Fiber Optic Port Verification As a troubleshooting aid, the fiber optic ports can be verified by placing a physical loopback optical line on the ports and verify the LED behavior as shown: The ACT LED will arbitrarily be configured to either the A or B fiber line. The RAI LED is RED/GREEN indicating that there is something wrong at the far end of the fiber line (in this case, the remote unit is missing). -
Page 27: E1 Port Verification
E1 Port Verification By placing a physical loopback connection on the E1 port, a valid signal can be detected by each individual E1 port to verify its operation. Without the fiber looped, the ALARM LED for the looped E1 port will show RED/GREEN indicating there is a problem at the far end of the fiber transport (In this case the far end unit is missing) and the STAT LED is RED because the fiber is in LOS. -
Page 28: Normal Operation
Normal Operation Under normal operation the following LED display is given: GREEN LNK 10/100BaseT 10/100BaseT RS-232 RS-232 GREEN STAT GREEN ACT, LNK, MSA Fiber Optic Cleaning Guidelines Fiber optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust which can obstruct the optic path and cause performance degradation. -
Page 29: Electrostatic Discharge Precautions
• Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Ensure that the fiber is properly terminated, polished and free of any dust or dirt and that the location is as free from dust and dirt as possible. - Page 30 Wear an ESD wrist-grounding strap before handling any module or component. If a wrist strap is not available, maintain grounded contact with the system unit throughout any procedure requiring ESD protection. Hold boards by the edges only; do not touch the electronic components or gold connectors.
-
Page 31: Specifications
Specifications Power Consumption (Typical): 0.96A @ +5V DC Operating Temperature: 32° to 122° F (0° to 50° C) Storage Temperature: -40° to 160°F (-40° to 70° C) Humidity: 5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions: Dual Slot iMcV module Standards/Compliance •... -
Page 32: Definition Of Terms/Acronyms
Definition of Terms/Acronyms The following are terms and phrases used within this manual (shown in italics), or which are found in documents associated with this equipment. The Term “1+1” refers to line protection where identical information is transmitted on two redundant lines. The Receiver chooses the “best”... - Page 33 Light Emitting Diode: A small stack of lights to indicate link, duplex or other options. LFPT Link Fault Pass-Through: LFPT can be enabled via iView² or through the console port. Loss Of Frame: An error condition where the receiver/decoder misses detection of the framing signal. Loss Of Signal: An error condition where the receiving line interface unit does not detect a signal.
-
Page 34: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 35: Safety Certifications
Safety Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC). European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 36 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-E1-Mux/4 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
