Ipmi - HP MicroServe User Manual

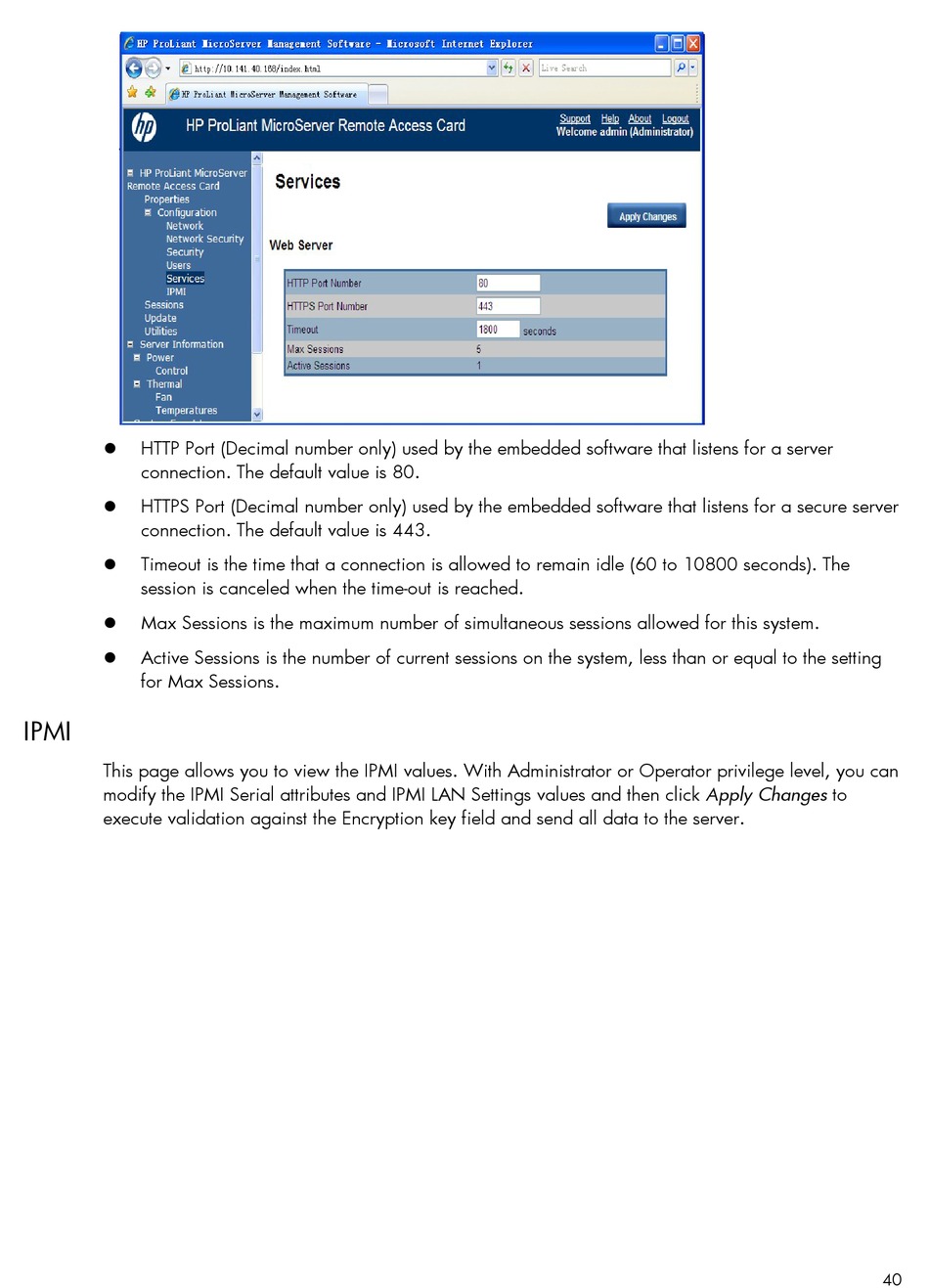

HTTP Port (Decimal number only) used by the embedded software that listens for a server

connection. The default value is 80.
HTTPS Port (Decimal number only) used by the embedded software that listens for a secure server

connection. The default value is 443.
Timeout is the time that a connection is allowed to remain idle (60 to 10800 seconds). The

session is canceled when the time-out is reached.
Max Sessions is the maximum number of simultaneous sessions allowed for this system.

Active Sessions is the number of current sessions on the system, less than or equal to the setting

for Max Sessions.

IPMI

This page allows you to view the IPMI values. With Administrator or Operator privilege level, you can
modify the IPMI Serial attributes and IPMI LAN Settings values and then click Apply Changes to
execute validation against the Encryption key field and send all data to the server.
40
