6. Set the "BMC LAN Configuration" to "DHCP"
7. Press the F10 key to save and exit RBSU
To configure a static IP address, use the RBSU with the following procedure to disable DHCP and
configure the IP address and the subnet mask:
1. Power on the server by pressing the Power on/Off button on the front panel
2. When POST prompts the message "press F10 for Rom-based setup Utility", press the F10 key, the
main screen of the BIOS Setup Utility appears
3. Press the right arrow (→) key to na vig a te to the "Advanced" menu.

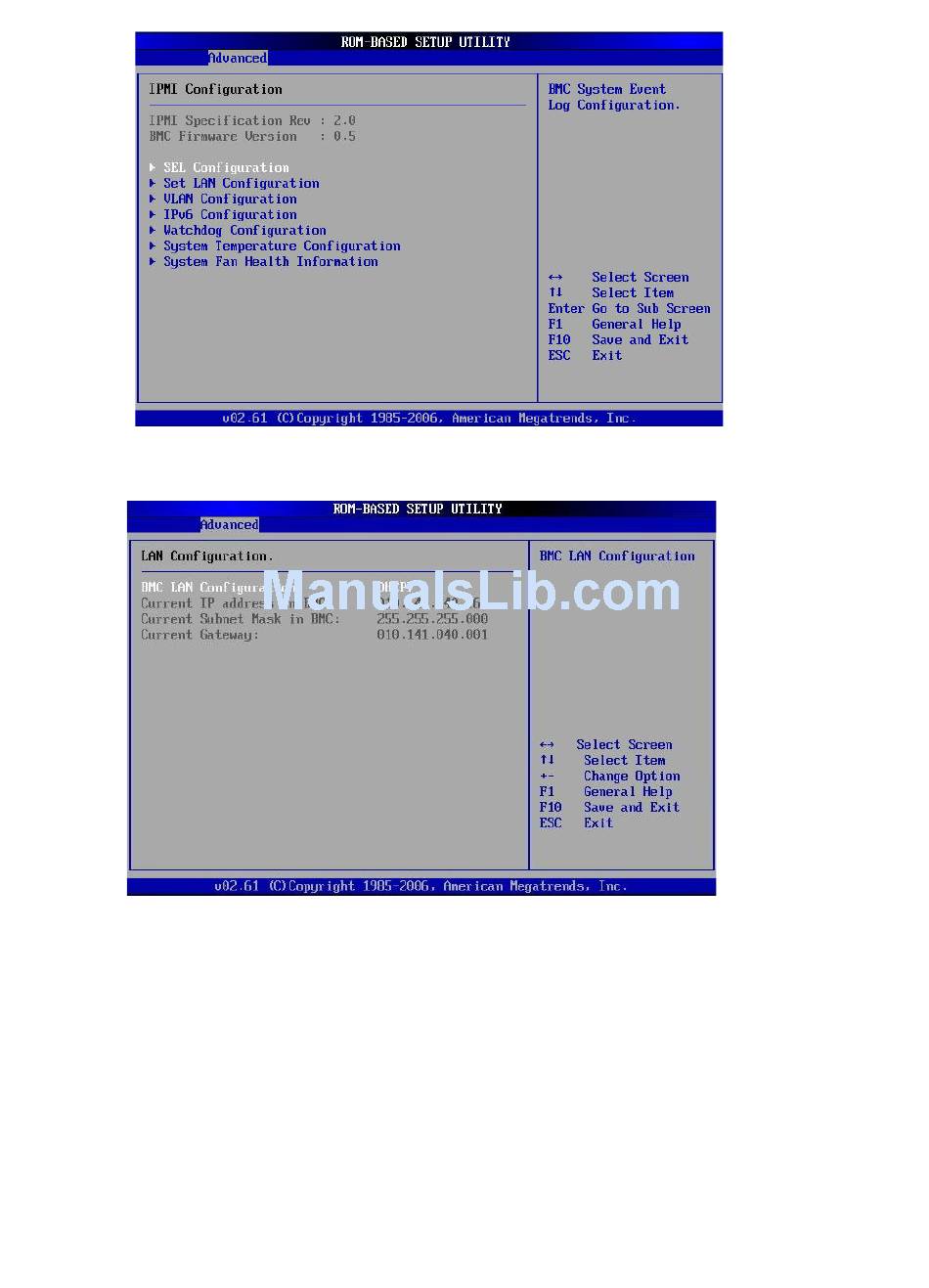

4. Press the down arrow (↓) key to scroll to "IPMI Configuration". Press the Enter key.
5. Press the down arrow (↓) key to scroll the "Set LAN Configuration" menu. Press the Enter key.
6. On "BMC LAN Configuration", select "static"
7. Press the down arrow (↓) key to scroll dow n a nd enter a va lid IP a ddress, subnet ma sk, a nd
gateway address (press period (.) key to move between address fields).
