FITNESS
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL

Advertisement

Table of Contents
loading

Related Manuals for SOLE S77

Summary of Contents for SOLE S77

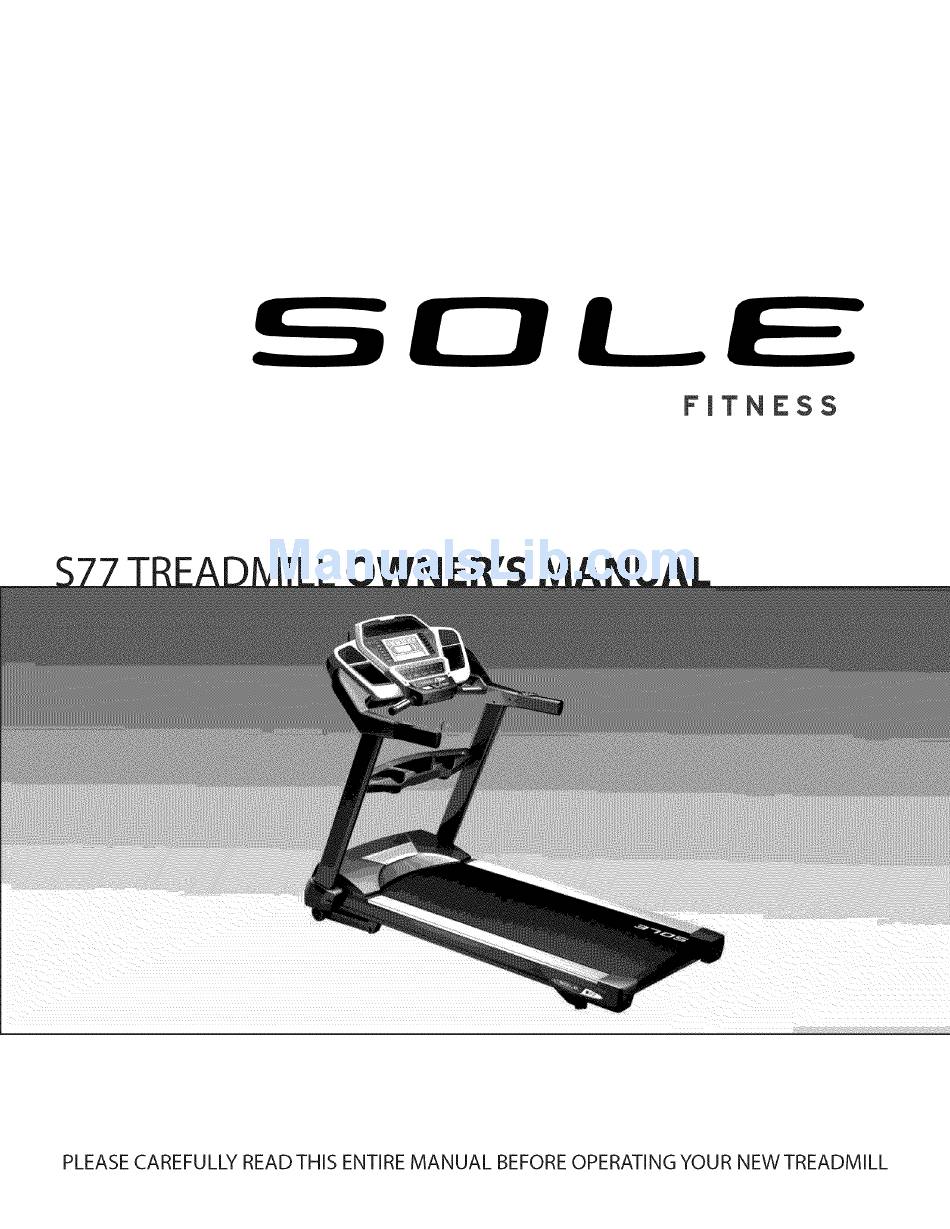

  • Page 1 FITNESS PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW TREADMILL...
  • Page 2 TABLE O F T T$ Product Registration Important Safety Instructions Important Electrical Information Important Operation Instructions Assembly instructions Folding Instructions Transport Instructions .Operation of Your New Treadmill Proarammable Features General Maintenance Service Checklist - Diagnosis Guide Manufacturer's Limited Warranty...
  • Page 3 FITNESS CONGRATULATIONS ON YOUR NEW TREADMILL AND WELCOME TO THE SOLE FAMILW Thank you for your purchase of this quality treadmill from SOLE. Your new treadmill has been manufactured by one of the leading fitness manufacturers in the world and is backed...
  • Page 4 IMPORTANT TYI ST UCT WARNING - Read all instructions before using this appliance. DANGER -To reduce the risk of electric shock disconnect your SOLE treadmill from the electrical outlet prior to cleaning and/or service work. WARNING -To reduce the risk of burns, fire, electric...
  • Page 5 IMPORTANT ELECT CALl ST UCTI WARNING! NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. As with any ap- pliance with a large motor, the GFCI will trip often. Route the power cord away from any moving part of the treadmill including the elevation...
  • Page 6 If you feel the buttons are not functioning properly with normal pressure contact your SOLE dealer. IMPORTANT TYI ST UCT A safety tether cord is provided with this unit. It is a simple magnetic design...
  • Page 7 PREVENTATIVE T Vacuum Under Motor Cover & Lubricate Deck Clean & Inspect Deck Inspect Belt Tracking for Lubrication Date Check Wiring (Every 180 hours (Monthly) Adjust (Every Other (Every Other Month) or sooner if dry) necessary Month) $77 TREADMILL...
  • Page 8 S77ASSEM LYPACK C HECKLIST #100.5/16"x 3/4" #79. 10mm #86.3/8"x #123.3/8" x 2" Button Head Button Head Star Washer (6 pcs) Split Washer (6 pcs) Socket Bolt (4 pcs) Socket Bolt (6 pcs) #86.3/8"x #91.3/8"x 1-3/4" Split Washer (4 pcs) Button Head Socket Bolt (4 pcs) #92.
  • Page 9 #92. M5 x 10mm Phillips Head Screw (4 pcs) #104. Combination M5 Allen Wrench #18. Lubricant & Phillips Head Screw Driver #105. M6 Allen Wrench $77 TREADMILL...

  • Page 10: Assembly Step

    $77ASSEMBLY INSTRUCTIONS STEP_ ASSEMBLY Remove the treadmill base frame from the carton and lay it aside on firm, level ground. ASSEMBLY STEP 2 4 ..Slide the console mast tube covers (99 onto 5 & 98 onto 4) onto the left and right console mast tubes.
  • Page 11 ASSEMBLY STEP # 100. 5/16"x 1/2" Button Head Socket Bolts (4 pcs) #79. lOmm Star Washers (6 pcs) #86. 3/8"x 2T Split Washer (6 pcs) #123. 3/8"x 2" Button Head Socket Bolts (6 pcs) 86 71 Attach the left (5) and right (4) console mast tubes and accompanying brack- ets (7) to the base frame with three Star Washers (79), three Split Washers, and three Button Head Socket Bolts (123) from each side and two...
  • Page 12 ASSEMBLY STEP S #91. 3/8"x 1-3/4" Button Head Socket Bolts (4 pcs) #86. 3/8"x 2T Split Washers (4 pcs) Attach the Console Assembly (36) onto the uprights (5 & 4) with two, Button Head Socket bolts (91) and two Split Washers (86) on each side. Completely tighten using the M6 Allen Wrench (104).
  • Page 13 # 100. 5/16" x 3/4" Button Head Socket Bolt (4 pcs) Install the upright support brace (3) between the uprights (5,4) with two Button Head Socket bolts (100) on each side. Completely tighten using the Combination M5 Allen Wrench and Phillips head screw driver (10:3). Place the accessory tray (120) onto the support brace (3).
  • Page 14 TRANSPORTATION I ST UCTI Carefully lift the treadmill at the rear roller area, grasping the two side end caps, and roll the treadmill away. $77 TREADMILL...

  • Page 15: Getting Started

    OPERATION OFYOU T GETTING FAMILIAR WITH THE CONTROL PANEL S77CONSOLE COOLING FANS !UICK K EYS INCLINE Q UICK FAN POWER SWITCH CONTROL AUDIOIN JACI_ ..HEADPHONE JACK (MP3,CD, O R SMARTPHONE) CONTACT HEART RATE S ENSORS GETTING S TARTED $77 CONSOLE Power the treadmill on by plugging it into an appropriate...
  • Page 16 OPERATION QUICK-START Attach the Safety Key to wake display up (if not already on). Press the Start key to begin belt movement then adjust to the desired speed using the Fast / Slow keys (console or handgrip).You may also use the Quick speed keys 2, 4, 6, 8 or 12 to adjust the speed.

  • Page 17: Incline F Eature

    PAUSE/STOP/RESET FEATURE When the treadmill is running the pause feature may be utilized by pressing the red Stop key once.This will slowly decelerate the tread-belt to a stop.The incline will go to zero percent.The Time, Distance and Calorie readings will hold while the unit is in the pause mode.
  • Page 18 DOT MATRIX C ENTER DISPLAY Twenty four columns of dots (10 high) indicate each segment (speed or incline) of a workout. They do not necessarily indicate a specific value - only an approximate percent compare levels of intensity. In Manual Operation the Speed / Incline...

  • Page 19: Calorie Display

    CALORIE DISPLAY Displaysthe cumulativecaloriesburned at any given time during your workout. Note:Thisis only a rough guide usedfor comparisonof different exercisesessions, which cannot be usedfor medicalpurposes. Thereis an Audio Input Jack (_) on the front of the console and built-in speakers.You plug any low-level audio source signal into this port.
  • Page 20 PROGRAMMA The $77 have ten built-in programs: one Manual program (PO), five preset profiles, two user defined programs (U1 & U2) and two Heart Rate programs (NR1 & NR2). PRESET PROGRAMS Hill The Hill program simulates going up and down a hill.The resistance in the pedals will steadily increase and then decrease during the program.
  • Page 21 Enter. Each program has various speed changes throughout; this allows you to limit the highest speed the program will at- tain during your workout. Press Start to begin or Enter to modify your settings. S77 TREADMI LL...

  • Page 22: User Programs

    USER PROGRAMS Select User 1 or User 2 via the Program keypad, then press Enter. Note that the dot matrix display portion will light a single row of dots at the bottom (Unless there is a previously saved program). If there is a program stored under the...

  • Page 23: Heart R Ate P Rograms

    Consult your physician before participating in any exercise program. With all SOLE Heart Rate treadmills you may use the heart rate monitor feature without using the Heart Rate program.This function can be used during manual mode or during...
  • Page 24 RATE OF PERCEIVED EXERTION Heart rate is important but listening to your body also has a lot of advantages.There are more variables involved in how hard you should workout than just heart rate.Your stress level, physical health, emotional health, temperature, humidity, the time of day, the last time you ate and what you ate, all contribute...

  • Page 25: Erratic Operation

    Normally the transmitter will be oriented so the SOLE logo is right side up. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning whole machine 90 degrees may de-tune the interference.
  • Page 26 HEART RATE PROGRAMMING CAUTION! Heart Rate programs are intended for wireless transmitter chest strap only. Do not use Pulse Grip bar for Heart Rate. You must receive a strong/steady value in the heart rate window (See Using Heart Rate Transmitter section instructions on how to use).

  • Page 27: Belt A Djustments

    GENERAL BELT & DECK Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when deck is kept as clean as possible. Use a soft, damp cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the frame.

  • Page 28: Tracking Adjustment

    Proper belt tracking is an owner responsibility common with all treadmills. ATTENTION: DAMAGE TO THE RUNNING BELT RESULTING FROM IMPROPER TRACKING / TENSION ADJUSTMENTS IS NOT COVERED UNDER THE SOLE WARRANTY. $77 TREADMILL...
  • Page 29 Sole Fitness approved lubricant.Your treadmill comes with one tube of"Lube" and extra tubes can be ordered directly from Sole Fitness or your authorized Sole Fitness dealer.You may also use a Lube-n-Walk kit that can be purchased through both aforementioned sellers.
  • Page 30 AC household wall outlet. Household circuit breaker may be tripped. Treadmill defect. Contact your SOLE dealer. The user may be walking while favoring or putting Tread=belt does not stay centered more weight on either the left or right foot. If this...

  • Page 31: The Speed Sensor

    CALIBRATION PROCEDURE Remove the safety key Press and hold down the Start and Fast (speed up) buttons and replace the safety key. Continue to hold the Start and Fast key until the window displays "Factory settings", then press the enter key. You will now be able to set the display to show Metric or English...

  • Page 32: Treadmill Warranty

    Products that do not have a warranty registration card on file at SOLE. SOLE reserves the right to request proof of purchase if no warranty record exists for the product. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
