_i:_!:`::_!:`::!:i:!_:_:_:_:_:_:_::!_:_;`:;_;!::`_;_:_:_$_;`:!_:_i:!:_:!:!:_i:i:!:!:!_i_!_!:_!_!:_!:_::`_1:_:!_:_!_!:!:!:!!_::_:_:_:``.:_:_:_:!:_:_
"
;i:_
_:_
" _.: _
.....
_:!
"_:
" .....::
`_:_:_!:_:_!:_:.;:_._:_1_:_:_:_:_;_:_:_;_:::_::_:_:!_:_:_:!:_:!_:_;_:_.:_;;_;:_;_:_:_:_;_:_:_:_:i:_:_:_:_:_i:_:i_::i:_:w

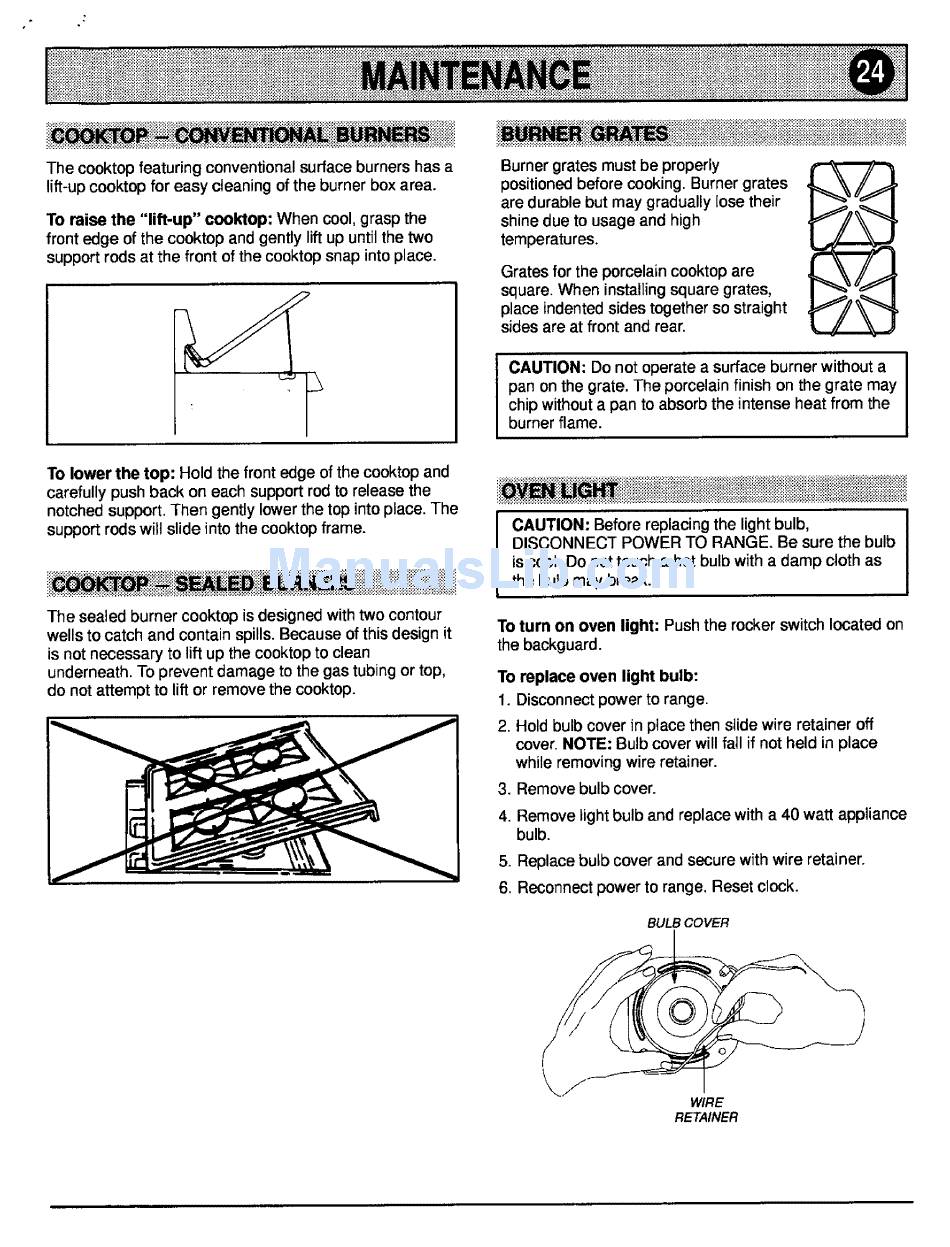

The cooktop featuring conventional surface burners has a
lift-up cooktop for easy cleaning of the burner box area.
To raise the "lift-up"
cooktop: When cool, grasp the
front edge of the cooktop and gently lift up until the two
support rods at the front of the cooktop snap into place.
i
Burner grates must be properly
positioned before cooking. Burner grates
are durable but may gradually lose their
shine due to usage and high
temperatures.
Grates for the porcelain cooktop are
square. When installing square grates,
place indented sides together so straight
sides are at front and rear.
CAUTION: Do not operate a surface burner without a
pan on the grate. The porcelain finish on the grate may
chip without a pan to absorb the intense heat from the
burner flame.
To lower the top: Hold the front edge of the cooktop and
carefully push back on each support rod to release the
notched support. Then gently lower the top into place. The
support rods will slide into the cooktop frame.
The sealed burner cooktop is designed with two contour
wells to catch and contain spills. Because of this design it
is not necessary to lift up the cooktop to clean
underneath. To prevent damage to the gas tubing or top,
do not attempt to lift or remove the cooktop.
ii ii i iiiiiii!iiiii!iii!iiiii
iiiiiiiii
iiiiiiiiiii!i
ii!i!i iiil;i!!
i!iiiiiiiiill
iii!iiii!iil
CAUTION: Before replacing the light bulb,
DISCONNECT POWER TO RANGE. Be sure the bulb
is cool. Do not touch a hot bulb with a damp cloth as
the bulb may break.
To turn on oven light: Push the rocker switch located on
the backguard.
To replace oven light bulb:
1. Disconnect power to range.
2. Hold bulb cover in place then slide wire retainer off
cover. NOTE: Bulb cover will fall if not held in place
while removing wire retainer.
3. Remove bulb cover.
4. Remove light bulb and replace with a 40 watt appliance
bulb.
5. Replace bulb cover and secure with wire retainer.
6, Reconnect power to range, Reset clock.
BULB COVER
WIRE
RETAINER
