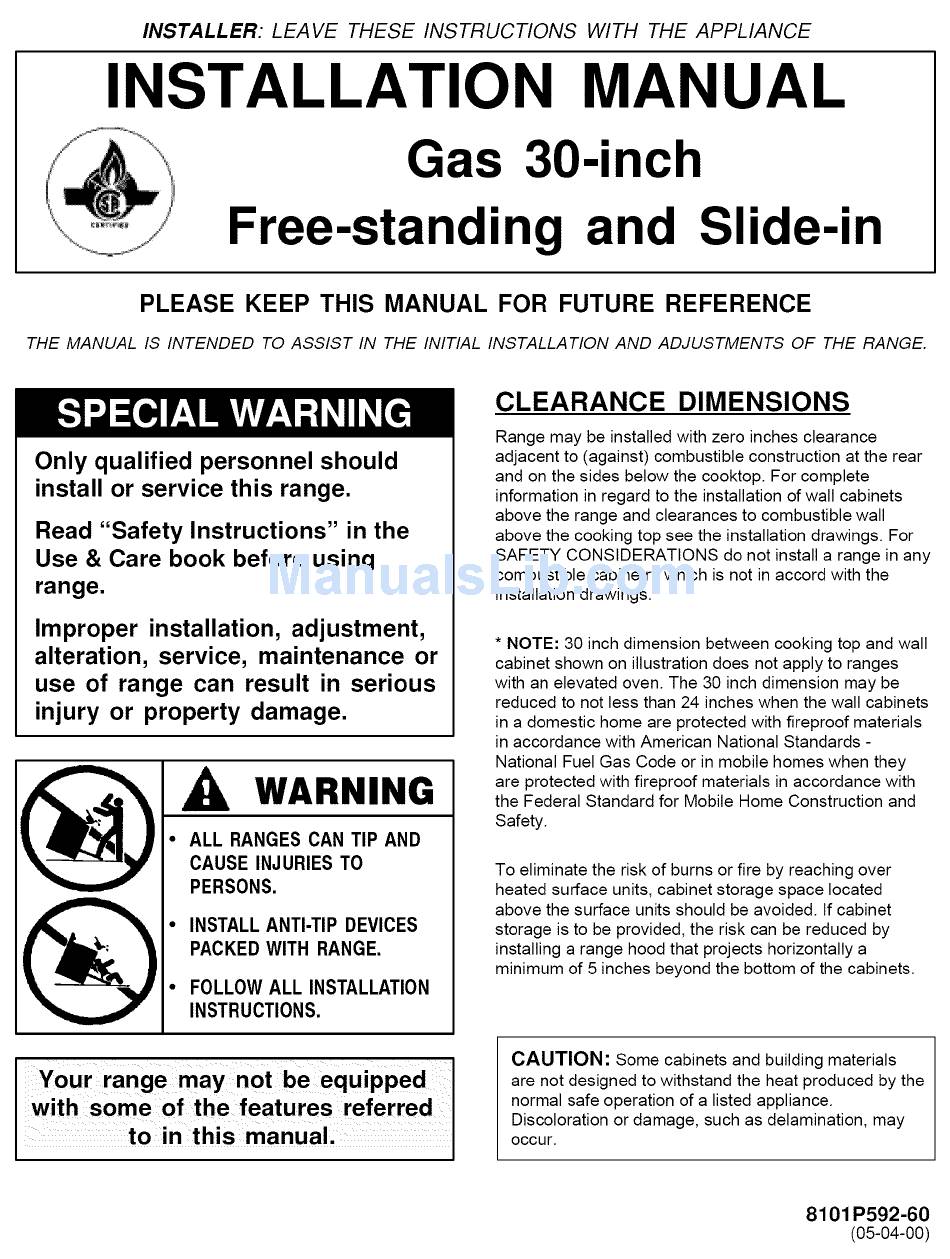

INSTALLER:
LEAVE
THESE
INSTRUCTIONS
WITH THE APPLIANCE
INSTALLATION
MANUAL
Gas 30-inch
Free-standing
and Slide-in
PLEASE
KEEP THIS MANUAL
FOR FUTURE
REFERENCE
THE MANUAL IS INTENDED
TO ASSIST IN THE INITIAL INSTALLATION AND ADJUSTMENTS
OF THE RANGE.
Only qualified personnel should
install or service this range.
Read "Safety
Instructions"
in the
Use & Care book before using
range,
Improper
installation,
adjustment,
alteration,
service,
maintenance
or
use of range can result in serious
injury or property
damage.
WARNING
• ALL RANGES CAN TIP AND
CAUSE INJURIES TO
PERSONS.
• INSTALL ANTI-TIP DEVICES
PACKED WITH RANGE.
° FOLLOW ALL INSTALLATION
INSTRUCTIONS.
I Your range maynotbe
equipped
with
some of the features
referred
to in this manual:
CLEARANCE
DIMENSIONS
Range may be installed with zero inches clearance
adjacent to (against) combustible construction at the rear
and on the sides below the cooktop. For complete
information in regard to the installation of wall cabinets
above the range and clearances to combustible wall
above the cooking top see the installation drawings. For
SAFETY CONSIDERATIONS
do not install a range in any
combustible cabinetry which is not in accord with the
installation drawings.
* NOTE: 30 inch dimension between cooking top and wall
cabinet shown on illustration does not apply to ranges
with an elevated oven. The 30 inch dimension may be
reduced to not less than 24 inches when the wall cabinets
in a domestic home are protected with fireproof materials
in accordance with American National Standards -
National Fuel Gas Code or in mobile homes when they
are protected with fireproof materials in accordance with
the Federal Standard for Mobile Home Construction and
Safety.
To eliminate the risk of burns or fire by reaching over
heated surface units, cabinet storage space located
above the surface units should be avoided. If cabinet
storage is to be provided, the risk can be reduced by
installing a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the cabinets.
CAUTION:
Some cabinets and building materials
are not designed to withstand the heat produced by the
normal safe operation of a listed appliance.
Discoloration or damage, such as delamination, may
occur.
8101 P592-60
(05-04-00)
