Connecting the VP-4x4xl 4x4 UXGA / Audio Matrix Switcher

6.5 Dipswitch Settings

The VP-4x4xl includes a set of four dipswitches
define:
DIPS Function
1, 2, 3 Machine #
4 RS-485 Term
The machine # determines the position of a VP-4x4xl unit when cascading
units (see section 6.4). Set dipswitches 1, 2 and 3 according to Table 4:
1 By default these dipswitches are set to OFF
2 When cascading machines, set dipswitch 4 to ON for the first and last units only (otherwise, set dipswitch 4 to OFF)
1 2 3

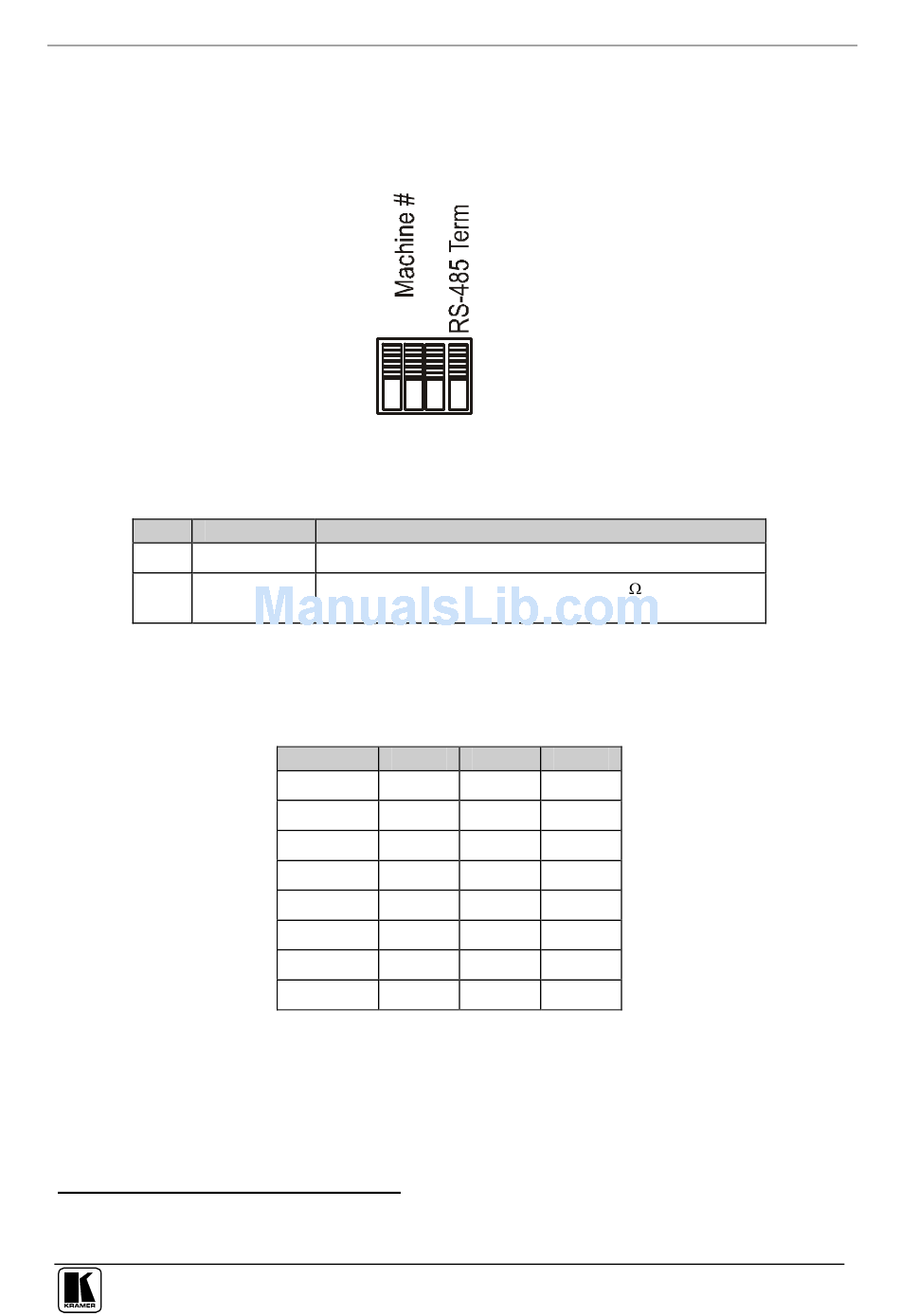

Figure 8: VP-4x4xl Dipswitches

Table 3: Dipswitch Settings

Determines the number of the machine in the sequence
ON for RS-485 line termination
OFF for no RS-485 line termination

Table 4: Machine # Dipswitch Settings

Machine # DIP 1
Master
1 OFF
2 OFF
3 OFF
4 OFF
5 ON
6 ON
7 ON
8 ON
1
, as Figure 8 and Table 3
OFF
ON
Description
2
with 120
DIP 2 DIP 3
OFF OFF
OFF ON
ON OFF
ON ON
OFF OFF
OFF ON
ON OFF
ON ON
13
