- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VP-4x4 4x4 VGA/XGA Audio Matrix Switcher...
-
Page 2: Table Of Contents
Figure 5: SELECTOR Buttons Tables Table 1: Front Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features Table 2: Rear Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features Table 3: Rear Panel Dipswitches Table 4: Technical Specifications of the VP-4x4 VGA/XGA Audio Matrix Switcher... -
Page 3: Introduction
Kramer line an integral part of the finest production and presentation facilities in the world. In recent years, Kramer has redesigned and upgraded most of the line, making the best even better! -
Page 4: Overview

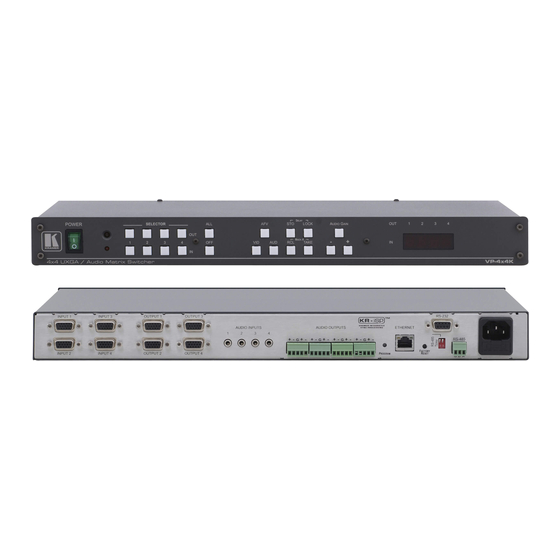

Overview Overview The VP-4x4 is a true 4x4 matrix switcher for VGA / XGA signals and stereo balanced audio signals. The VP-4x4 enables the user to simultaneously route any or all of the 4 inputs to any or all of the 4 outputs. -
Page 6: Table 1: Front Panel Vp-4X4 Vga/Xga Audio Matrix Switcher Features
Your VGA/XGA Audio Matrix Switcher Table 1: Front Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features Feature Function Power Switch Illuminated switch supplying power to the unit SELECTOR IN Select the input to switch to the output The SELECTOR IN and OUT... -
Page 7: Connecting The Vp-4X4
RS-232 DB9 port on your PC, as Figure 3 illustrates 1 Switch OFF the power on each device before connecting it to your VP-4x4. After connecting your VP-4x4, switch on its power and then switch on the power on each device... -
Page 8: Connecting A Phoenix Terminal Block Cable
Figure 3: VP-4x4 Connections 4.1.3 Dipswitch Settings The VP-4x4 includes a set of 4 dipswitches, as Figure 3 illustrates above. You configure each VP-4x4 unit by setting the dipswitches as follows: Pull a dipswitch DOWN to set it to ON... -
Page 9: Operating Your Audio Matrix Switcher
RS-232 serial commands transmitted by a touch screen system, PC , or other serial controller 5.1 Displaying Unit Characteristics Clarify the following VP-4x4 unit characteristics, as Figure 4 illustrates: The number of IN and OUT ports The firmware version number and the MACHINE # Figure 4: VP-4x4 Unit Characteristics... -
Page 10: Choosing The Audio-Follow-Video Or Breakaway Option
Operating Your Audio Matrix Switcher VP-4x4 unit characteristics display in the following circumstances: Immediately (and automatically) after switching on the power; and When simultaneously pressing the 3 SELECTOR IN buttons 1, 2 and 3, for 3 seconds 5.2 Choosing the Audio-Follow-Video or Breakaway Option... -
Page 11: Confirming Settings
You can key-in several actions and then confirm them by pressing the TAKE button once, to simultaneously switch all monitors Pressing an OUT-IN combination when your VP-4x4 operates in the AT ONCE mode implements the switch immediately. When the VP-4x4 operates in the CONFIRM mode, press the blinking TAKE button to authorize the switch. -
Page 12: Confirming A Switching Action
4 Items 8 and 9, respectively, in Figure 1 5 Items 8 and 9, respectively, in Figure 1 6 Items 8 and 9, respectively, in Figure 1 7 The 8 input/output configurations (or setups) also include the relevant audio-follow-video / breakaway option definition KRAMER ELECTRONICS, LTD. -
Page 13: Storing An Input/Output Configuration
The memory recalls the stored data from that reference. If you cannot remember which of the 8 input/output configurations is the one that you want, set the VP-4x4 to the CONFIRM mode and manually scan all the input/output configurations until you locate it. -
Page 14: Locking The Front Panel
The VP-4x4 unlocks and the LOCK button no longer illuminates Technical Specifications Table 4 includes the technical specifications: Table 4: Technical Specifications of the VP-4x4 VGA/XGA Audio Matrix Switcher INPUTS: 4 analog red, green, blue signals - 0.7 Vpp / 75 ;... - Page 15 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
