Kramer VP-4x4K Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

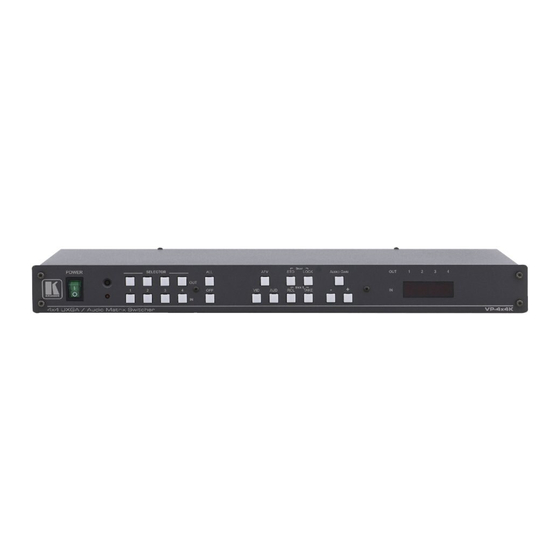

VP-4x4K 4x4 UXGA/Audio Matrix Switcher
Kramer RC-IR3 IR Remote Control Transmitter
Step 2: Get to know your VP-4x4K
# Feature
1 POWER Switch
2 IR Receiver
3 SELECTO OUT
R Buttons
IN
4 ALL Button
5 OFF Button
6 AFV Button
7 VID Button
8 AUD Button
9 STO Button
10 LOCK Button
11 RCL Button
12 TAKE Button
13 AUDIO GAIN
Button
VP-4x4K Quick Start
VP-4x4K Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VP-4x4K
upgrades are available.
Function
Illuminated switch for turning the unit ON or OFF
Signals from the remote control transmitter illuminate the LED
Select the output to which the input is switched
Select the input to switch to the output
When a signal is detected, the input button illuminates in green
The SELECTOR IN and OUT buttons also store/recall the input/output configurations
Pressing ALL before pressing an input button connects that input to all outputs
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
Pressing OFF after pressing an output button disconnects that output from the inputs. To disconnect
all the outputs, press the ALL button and then the OFF button
When illuminated, the audio channels follow the video channels. The button is illuminated when the
AFV mode is selected. If the AUDIO differs from the VIDEO, the TAKE button will flash, and you
have to press the TAKE button to confirm the modification
When illuminated, actions relate to video
The VID button is illuminated when in breakaway mode and actions relate to video
When illuminated, actions relate to audio
The AUD button is illuminated when in breakaway mode and actions relate to audio
Pressing STO (STORE) followed by an output or an input button stores the current setting
Press the STO and LOCK buttons simultaneously to set the delay time. For example, press STO and
then the Output button # 3 to store in Setup # 3
Disengages the front panel switches
Pressing RCL (RECALL) followed by an output or an input button displays a stored setup
Pressing TAKE toggles the mode between the CONFIRM mode and the AT ONCE mode (user
confirmation per action is unnecessary). When in CONFIRM mode, actions are confirmed by
pressing the TAKE key. For example, press STO and then the Output button # 3 to store in Setup # 3
When in the CONFIRM mode, the TAKE button illuminates
Press to adjust the audio input or output gain
VP-4x4K for the first time.
to download the latest user manual and check if firmware
1 Set of rack ears
1 Power cord
P/N: 2 9 0 0 - 3 0 1 2 6 1 QS
4 Rubber feet
1 Quick start guide
Rev: 2
