CONNECTION AND MAINTENANCE

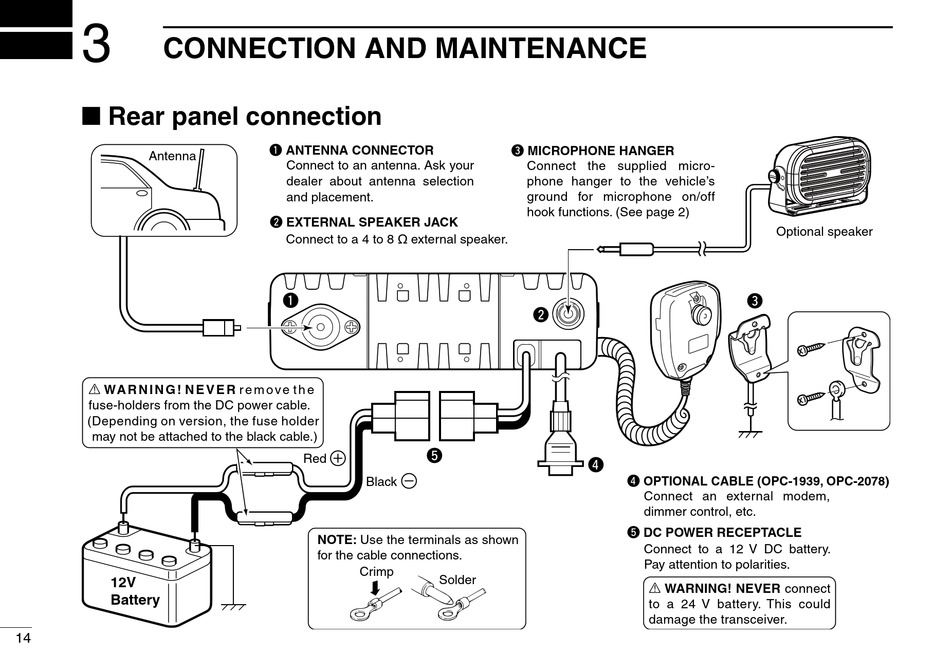

■ Rear panel connection

Antenna
R WA R N I N G ! N E V E R r e m o v e t h e
fuse-holders from the DC power cable.
(Depending on version, the fuse holder
may not be attached to the black cable.)
12V
Battery
14
q ANTENNA CONNECTOR
Connect to an antenna. Ask your
dealer about antenna selection
and placement.
w EXTERNAL SPEAKER JACK
Connect to a 4 to 8 ø external speaker.
q
t
Red
Black
NOTE: Use the terminals as shown
for the cable connections.
Crimp
Solder
e MICROPHONE HANGER
Connect the supplied micro-
phone hanger to the vehicle's
ground for microphone on/off
hook functions. (See page 2)
w
r
r OPTIONAL CABLE (OPC-1939, OPC-2078)
Connect an external modem,
dimmer control, etc.
t DC POWER RECEPTACLE
Connect to a 12 V DC battery.
Pay attention to polarities.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
Optional speaker
e
