User Set Mode - Icom IC-F5010 series Instruction Manual

2
BASIC OPERATION

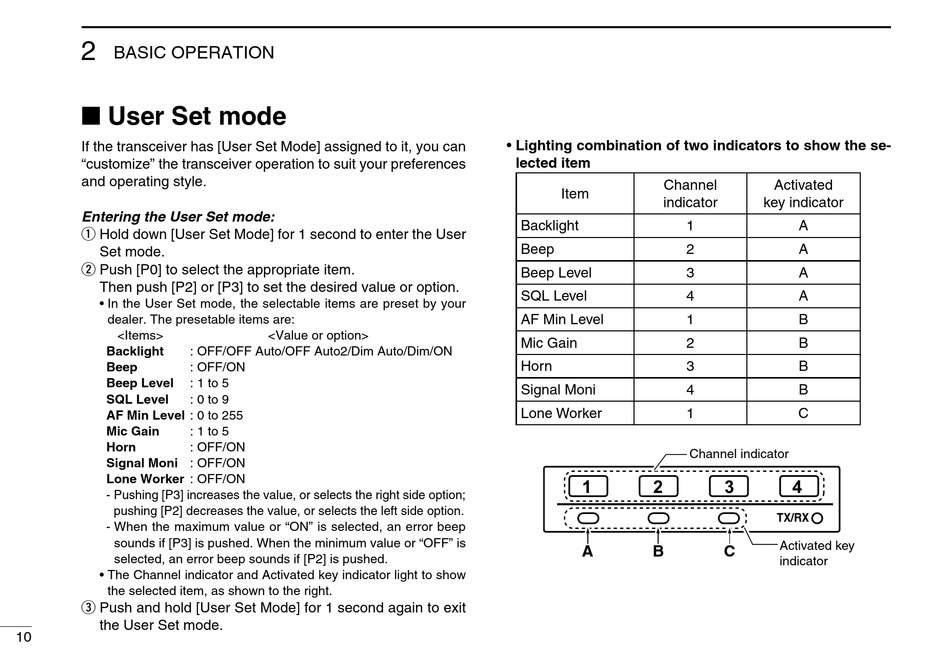

■ User Set mode

If the transceiver has [User Set Mode] assigned to it, you can
"customize" the transceiver operation to suit your preferences
and operating style.
Entering the User Set mode:
q Hold down [User Set Mode] for 1 second to enter the User
Set mode.
w Push [P0] to select the appropriate item.
Then push [P2] or [P3] to set the desired value or option.
• In the User Set mode, the selectable items are preset by your
dealer. The presetable items are:
<Items>
Backlight : OFF/OFF Auto/OFF Auto2/Dim Auto/Dim/ON
Beep : OFF/ON
Beep Level : 1 to 5
SQL Level : 0 to 9
AF Min Level : 0 to 255
Mic Gain : 1 to 5
Horn : OFF/ON
Signal Moni : OFF/ON
Lone Worker : OFF/ON
- Pushing [P3] increases the value, or selects the right side option;
pushing [P2] decreases the value, or selects the left side option.
- When the maximum value or "ON" is selected, an error beep
sounds if [P3] is pushed. When the minimum value or "OFF" is
selected, an error beep sounds if [P2] is pushed.
• The Channel indicator and Activated key indicator light to show
the selected item, as shown to the right.
e Push and hold [User Set Mode] for 1 second again to exit
the User Set mode.
10
<Value or option>
• Lighting combination of two indicators to show the se-
lected item
Channel
Item
indicator
Backlight
Beep
Beep Level
SQL Level
AF Min Level
Mic Gain
Horn
Signal Moni
Lone Worker
1 2
A B
Activated
key indicator
1 A
2 A
3 A
4 A
1 B
2 B
3 B
4 B
1 C
Channel indicator
3 4
TX/RX
Activated key
C
indicator
