KIWI SELECT 4 BURNER BARBECUE
OPERATING INSTRUCTIONS
For model: GBQKS140

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GBQKS140 and is the answer not in the manual?

Questions and answers

Related Manuals for Goldair GBQKS140

Summary of Contents for Goldair GBQKS140

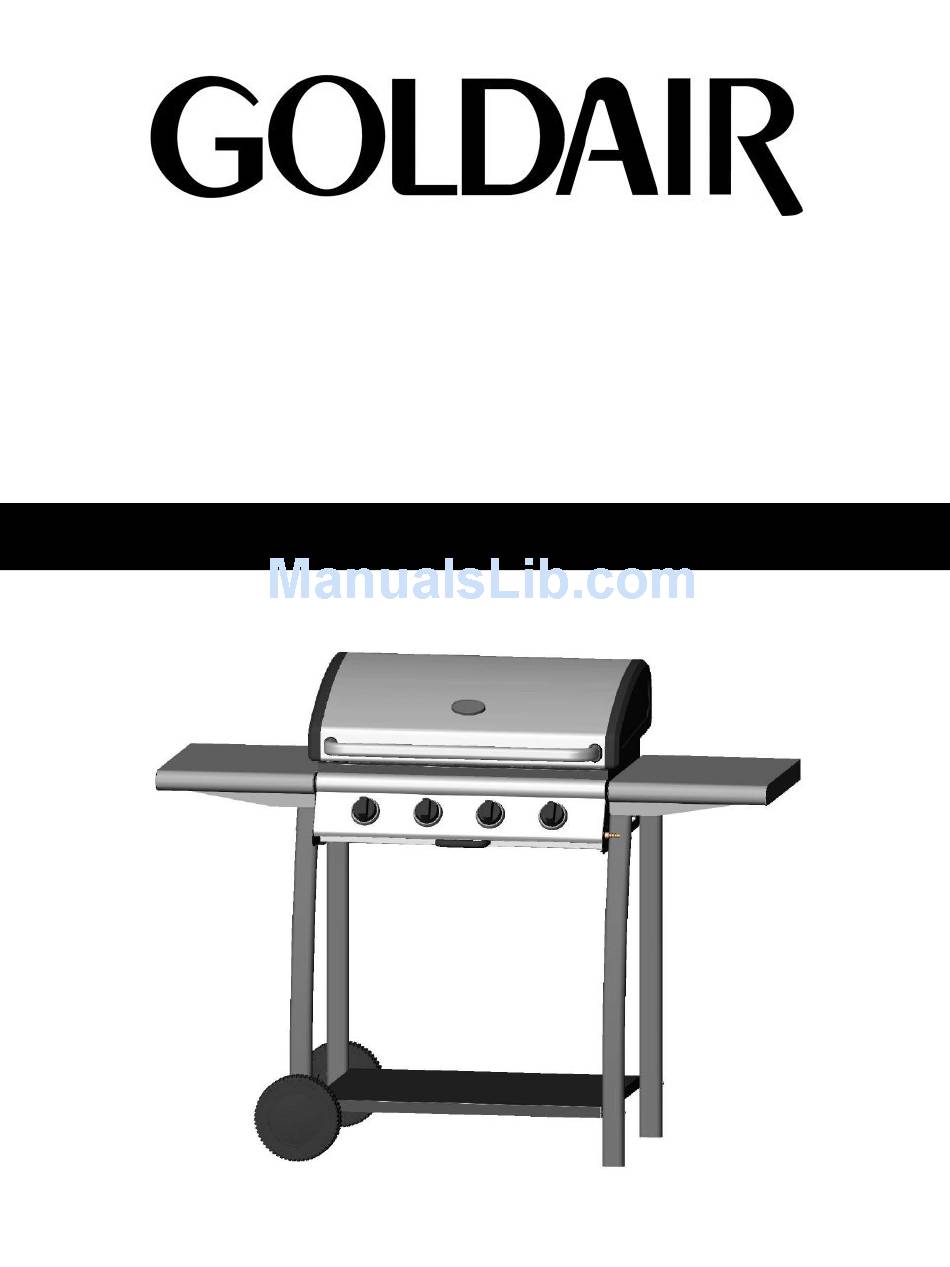

  • Page 1 KIWI SELECT 4 BURNER BARBECUE OPERATING INSTRUCTIONS For model: GBQKS140...

  • Page 2: Read Me First

    Thank you for choosing a Goldair BBQ. This Goldair BBQ has been designed and manufactured to a high standard of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully.
  • Page 3 CLEANING AND CARE OF YOUR BARBEQUE Ongoing Maintenance Your BBQ requires regular maintenance (interior and exterior) to ensure it remains in proper working order and to maintain its appearance. Exterior: Stainless Steel BBQ’s Overtime grease, fat and other cooking oils may build up on your BBQ. To clean, wash with warm/hot soapy water.
  • Page 4 Powder Coated BBQ’s Overtime grease, fat and other cooking oils may build up on your BBQ. To clean, wash with warm/hot soapy water. Wash off soapy water with warm/hot clean water, leave to air dry. Once dry, use a BBQ exterior cleaner, this will apply a protective coating on the exterior of the BBQ and assist in repelling the elements.

  • Page 5: Use Outdoors Only

    USE OUTDOORS ONLY This BBQ shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any outdoor enclosure in which the BBQ is used shall comply with one of the following: •...

  • Page 6: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 8 ASSEMBLY INSTRUCTIONs Before beginning assembly, have the necessary tools ready to assemble your barbecue include: Screwdriver, Pliers and Adjustable Wrench.
  • Page 11 PREPARATION To operate this barbecue, You will need to purchase a LPG gas bottle, you will also need to buy a hose and a regulator If they are not supplied with the BBQ, The hose and regulator can be obtained from your nearest Gas Retailer., Warning: Only use a hose complied with standard EN 3212/EN1763-1 and in accordance with national regulations,...

  • Page 12: Installation

    8. INSTALLATION After purchasing your gas bottle you will then be ready to use your barbecue. Position the gas bottle at the side of your barbecue, not underneath, keeping in mind that the bottle must be kept away from heat and in a safe position. NEVER place the Gas Bottle inside the Cabinet of the Barbecue Attach the regulator to the gas bottle valve correctly (refer to the instruction manual provided by the regulator).

  • Page 13: Lighting Instruction

    LIGHTING INSTRUCTION Caution: The gas supply must be turned off at the LP-gas supply tank when this appliance is NOT in use The lid must be open when lighting the burners Lighting instruction: Turn the Control Knob Clockwise to the OFF position. Open the Gas Valve, Regulator and Barbecue hood(Lid).
  • Page 14 DO NOT Use spanner to tighten all gas fittings Lean over BBQ when lighting Check all gas hose and line connections for Leave cooking food unattended damage, cuts or cracks each time you use the Store combustible material, gasoline or flammable BBQ.

  • Page 15: Retain This Manual For Future Reference

    RETAIN THIS MANUAL FOR FUTURE REFERENCE GENERAL OPERATION INSTRUCTIONS: Close the valve on the gas cylinder or the regulator after use. The use of this appliance in enclosed areas can be dangerous and is PROHIBITED. •Ignition: Battery operated multi spark ignition unit to both burners •Open the hood before attempting to light the grill •Open the side burner lid before attempting to light the side burner •Saucepans between 15cm and 22cm must only be used on the side burner.

  • Page 16: Gas Cylinder Information

    4. Using a brush or spray bottle apply the solution to the gas line and each join in the gas line. 5. Bubbling of the solution will indicate that there is a leak present. 6. Re-tighten or re-seal any joints that are leaking. 7. If a leak persists then contact Goldair or a Gas Service Agent.
  • Page 17 For safe use of your grill and to avoid serious injury: DO NOT let children operate or play near the grill. KEEP grill area clear and free from materials that burn. DO NOT block holes in bottom or back of grill. Check burner flames regularly.

  • Page 18: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Solution •Wire and/or electrode covered with •Clean wire and/or electrode with rubbing Burner(s) will not light using ignition. cooking residue. alcohol and clean swab. •Electrode cracked or broken •Replace electrode(s). "sparks at crack”. •Reconnect wires or replace electrode/wire •Electrode tip not in proper position.

  • Page 19: Natural Hazard Spiders

    SERVICING & SPARE PARTS Your gas BBQ should be serviced annually by a certified gas service agent BBQ COVER Please note that the Goldair BBQ Cover “if supplied” is not covered under your warranty. NATURAL HAZARD SPIDERS Spider and insect webs – Sometimes spiders and other insects climb into the tubes, gas lines and other areas of the BBQ.
  • Page 20 Your Goldair product has been inspected, tested and is guaranteed subject to the following for a period to one year from the date of purchase against defects in workmanship and materials. During this period, such defects will be rectified by repair or replacement of the product purchased.
