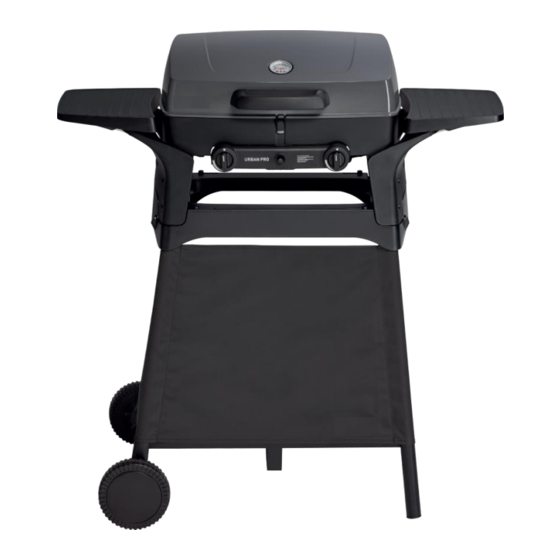

  • Page 1 Operating Instructions Portable 2 Burner with Trolley Model: GBQ60...

  • Page 2: Read Me First

    Read Me First Page 2 SPIDER AND INSECT WEBS Extremely important please read Some times spiders, ants and other insects climb into the tube burners, gas lines and other areas of the BBQ. The insects can spin webs, build nests and lay eggs. The webs or nests can be very small, but they are very strong and can block the flow of gas.
  • Page 3 Before attempting to assemble your Goldair BBQ, ensure all parts are correct and contained within the box as per the components list. o Goldair suggests laying out all components on a large flat surface and removing any plastic or protective material before assembling your BBQ.

  • Page 4: Gas Leak Testing

    Read Me First Page 4 GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To complete a Leak Test: • Make sure all the control knobs are OFF. •...

  • Page 5: Safety Guide

    Safety Guide Page 5 • Do not operate this BBQ before reading the instruction booklet • Do not place articles on or against this BBQ • Do not use or store flammable or combustible materials, chemicals or spray aerosols near your BBQ •...
  • Page 6 Safety Guide Page Always choose a safe location for the BBQ, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. NOTE This BBQ shall only be used in an above ground open air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by...
  • Page 7 Safety Guide Page 7 A strong gas smell or hissing sound of escaping gas indicates a serious problem with the BBQ or ULPG cylinder. Failure to immediately follow the steps listed below could result in a fire or explosion that could cause serious injury, death or property damage. •...

  • Page 8: Gas Cylinder Information

    Safety Guide Page 8 GAS CYLINDER INFORMATION 1. This BBQ is designed to be used with a gas cylinder not exceeding 9KG. 2. The gas cylinder supply valve must be turned off when the BBQ is not in use. 3. Gas cylinders must be stored outdoors, out of reach of children and must not be stored in a building, garage or any other enclosed area.

  • Page 9: Regulator Connection

    Safety Guide Page 9 REGULATOR CONNECTION 1. Check that all control knobs are in the ‘Off’ position. 2. Make sure the cylinder valve is off. 3. Remove the protective cap from the cylinder, if present. 4. Leak test the connection with a soapy water solution (Procedure located on Page 3 of this manual) NOTE 1.
  • Page 10 Safety Guide Page 10 • Do not leave food unattended on the BBQ. • In case of a fat fire turn gas off at cylinder immediately. • Particular care must be taken when removing the fat drip tray. Hot fat can cause serious burn injuries.

  • Page 11: Parts Diagram

    Parts Diagram Page 11...
  • Page 12 Assembly Procedure Page 12 Note: Tools required for assembly - 1 x adjustable spanners, 1 x medium Philips screwdriver...
  • Page 13 Assembly Procedure Page 13...
  • Page 14 Assembly Procedure Page 14...
  • Page 15 Assembly Procedure Page 15...
  • Page 16 Assembly Procedure Page 16...
  • Page 17 Assembly Procedure Page 17...
  • Page 18 Assembly Procedure Page 18...
  • Page 19 Assembly Procedure Page 19...
  • Page 20 Assembly Procedure Page 20...
  • Page 21 Assembly Procedure Page 21...
  • Page 22 Assembly Procedure Page 22...
  • Page 23 Operating your BBQ Page 23 • Never leave burners on high for more than 10 minutes unless actually cooking. If the burner makes hissing sounds when lit, it may be burning inside. Turn burner off, allow it to cool and try again.
  • Page 24 Operating your BBQ Page 24 Before using the BARBECUE for the first time, allow the burners to burn for 15 minutes with the lid closed without any food so as to remove preservation deposits. This can produce a slight smell but it is nothing to be concerned about. Make sure there is sufficient ventilation.
  • Page 25 Operating your BBQ Page 25 Before first use - Curing the cast iron During manufacturing, the cooking surfaces (plates and grills) were coated with a non-toxic paint. If paint is missing in small areas this is not a fault. This paint will come off completely over time. Its purpose is to help protect your BBQ during transport and storage.

  • Page 26: Preheating The Barbecue

    Cooking with your BBQ Page 26 PREHEATING THE BARBECUE Before starting the actual grilling, it is important to preheat the barbecue sufficiently. For this, follow the step in this manual to ignite the grill, then close the cooking lid and preheat the grill. The preheating duration at full power takes approx.

  • Page 27: Maintenance

    BBQ. • Please note that the Goldair BBQ Cover (if supplied with this model) is not covered under your Warranty. The BBQ is for portable outdoor use and is not intended for permanent installation or installation in vehicles or boats.
  • Page 28 Maintenance Page 28 On-going Maintenance Your BBQ requires regular maintenance (interior and exterior). The use on a BBQ cover in conjunction with the instructions below will help to ensure it remains in proper working order and maintains its appearance. Powder Coated BBQ’s Overtime grease, fat and other cooking oils may build up on your BBQ.

  • Page 29: Troubleshooting

    Troubleshooting Page 29 Problem Possible Cause Prevention/Solution Burner(s) will not Wire and/or electrode covered Clean wire and/or electrode with rubbing light using ignition. with cooking residue. alcohol and clean swab. Replace electrode(s). Electrode cracked or broken "sparks at crack”. Reconnect wires or replace electrode/wire assembly.

  • Page 30: Troubleshooting-Electronic Ignition

    Troubleshooting-Electronic Ignition Page 30 Problem Possible Cause Check Procedure Prevention/Solution No sparks appear at Not installed properly. Check battery orientation Install battery (make sure that “+” and “-” any electrodes when ignition button is connectors are oriented correctly, with “+” end up pushed;...

  • Page 31: One Year Warranty

    In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
  • Page 32 TECHNICAL SPECIFICATION Model No: GBQ60 Gas Type: ULPG Gas Pressure: 2.75 kPa Total Gas Consumption: 4.4kW Main Burner Gas Consumption: 2.2kW (2) Injector Size: 0.72mm for Main SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday –...
  • Page 36 New Zealand PO Box 100707, North Shore Mail Centre, Auckland, 0745 www.goldair.co.nz Australia PO Box 574, South Morang, Victoria, 3752 www.goldair.com.au...
