Getting Started with EPICenter
1 Click the Filter button at the top of the Alarm Summary window.
The Define Alarm Log Filter window opens.

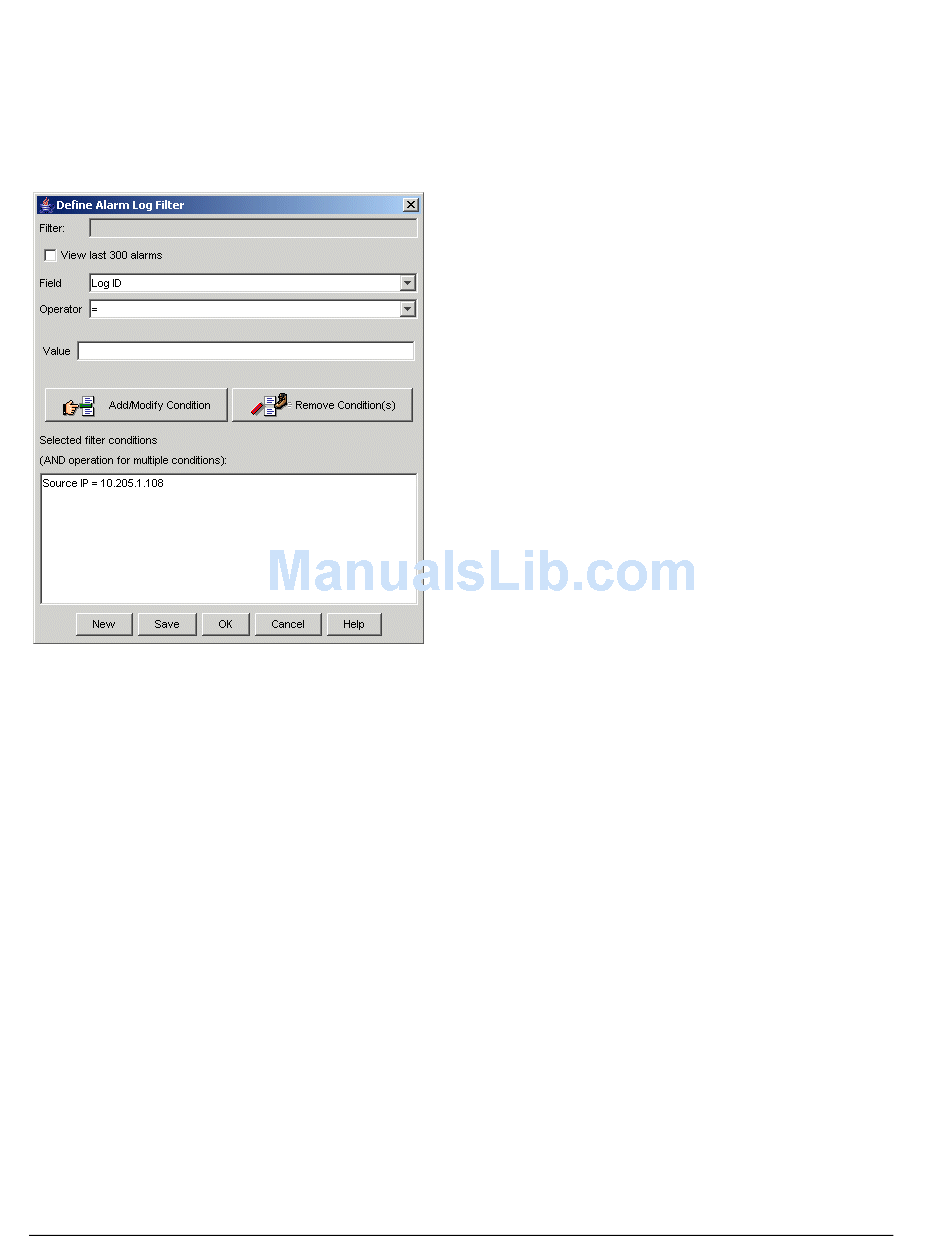

Figure 12: The Alarm Log filter definition window
2 Uncheck the View last 300 alarms checkbox.
3 From the drop-down menu in the Field field, select Source IP.
4 Enter the IP address into Value field.
5 Click Add/Modify Condition. This adds the condition "Source IP = 10.205.1.108" to the list of
conditions that EPICenter will use to filter the alarm list.
6 Click OK to display the alarms that match this filter.
The Alarm Summary is refreshed to show only the alarms that match your filter.
44
EPICenter Concepts and Solutions Guide
